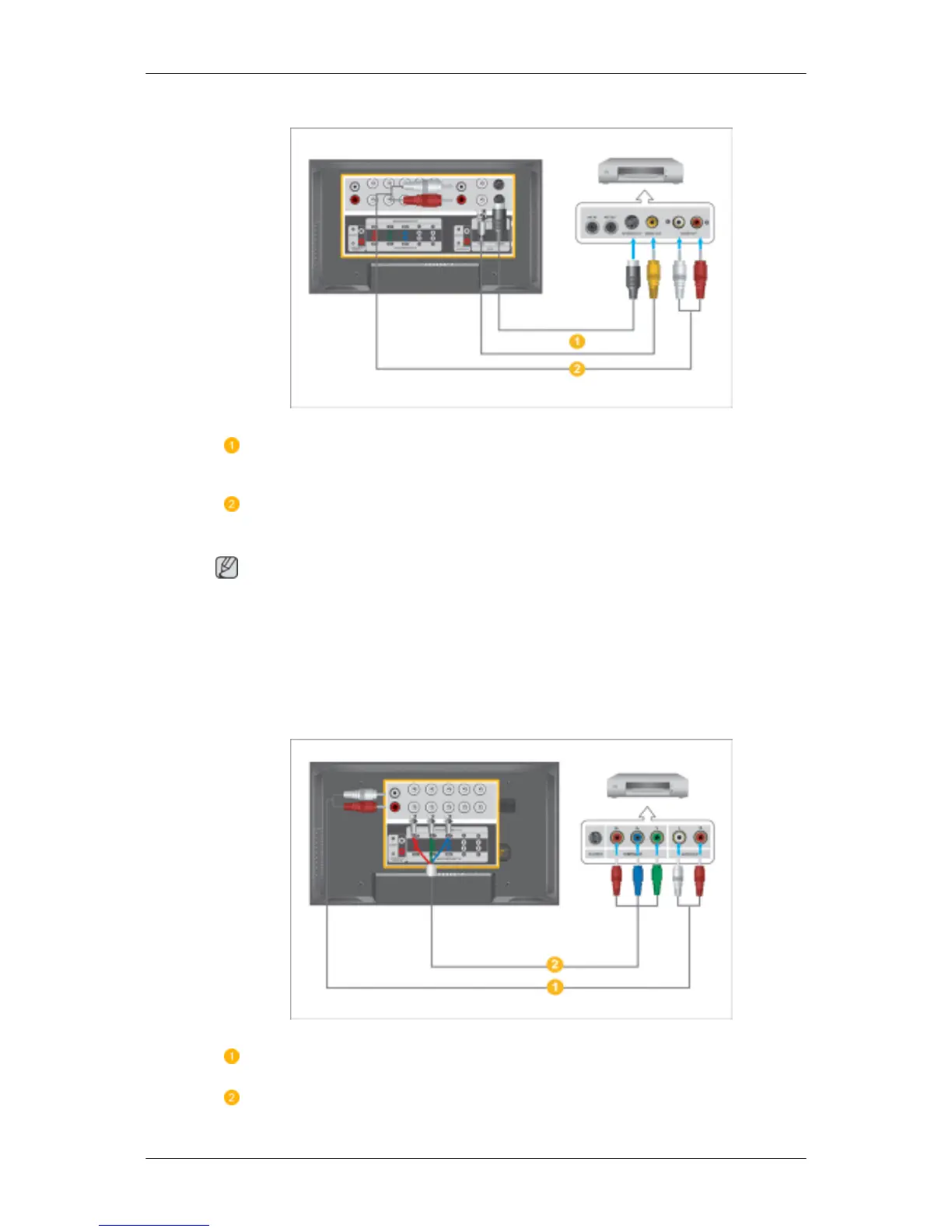

Connecting a VCR
AV input devices such as VCRs or Camcorders are connected via the AV IN
[VIDEO] or AV IN [S-VIDEO] of the LCD Display using an S-VHS or BNC
cable.
Connect the Audio (L) and Audio (R) terminals of a VCR or Camcorders to the
LCD Display 's AV AUDIO IN [L-AUDIO-R] using audio cables.
Note
• Select AV or S-Video for a connected VCR or Camcorder using the SOURCE button on the front
of the LCD Display or on the remote control.
• Then, start the VCR or Camcorders with a tape inserted.
• The S-VHS or BNC cable is optional.
Connecting a DVD Player
Connect a set of audio cables between the COMPONENT AUDIO IN [L-AUDIO-
R] on the LCD Display and the AUDIO OUT jacks on the DVD player.
Connect a Component cable between the BNC/COMPONENT IN - PR, Y, PB
port on the LCD Display and the PR, Y, PB jacks on the DVD player.
