Samsung SyncMaster 900IFT - Pin Assignments

18
3
Appendix
6 7 8
X
10
11 12 13 14 15
1 2 3 4 5
9 10 11 12 13 14 15
1 2 3 4 5 6 7 8

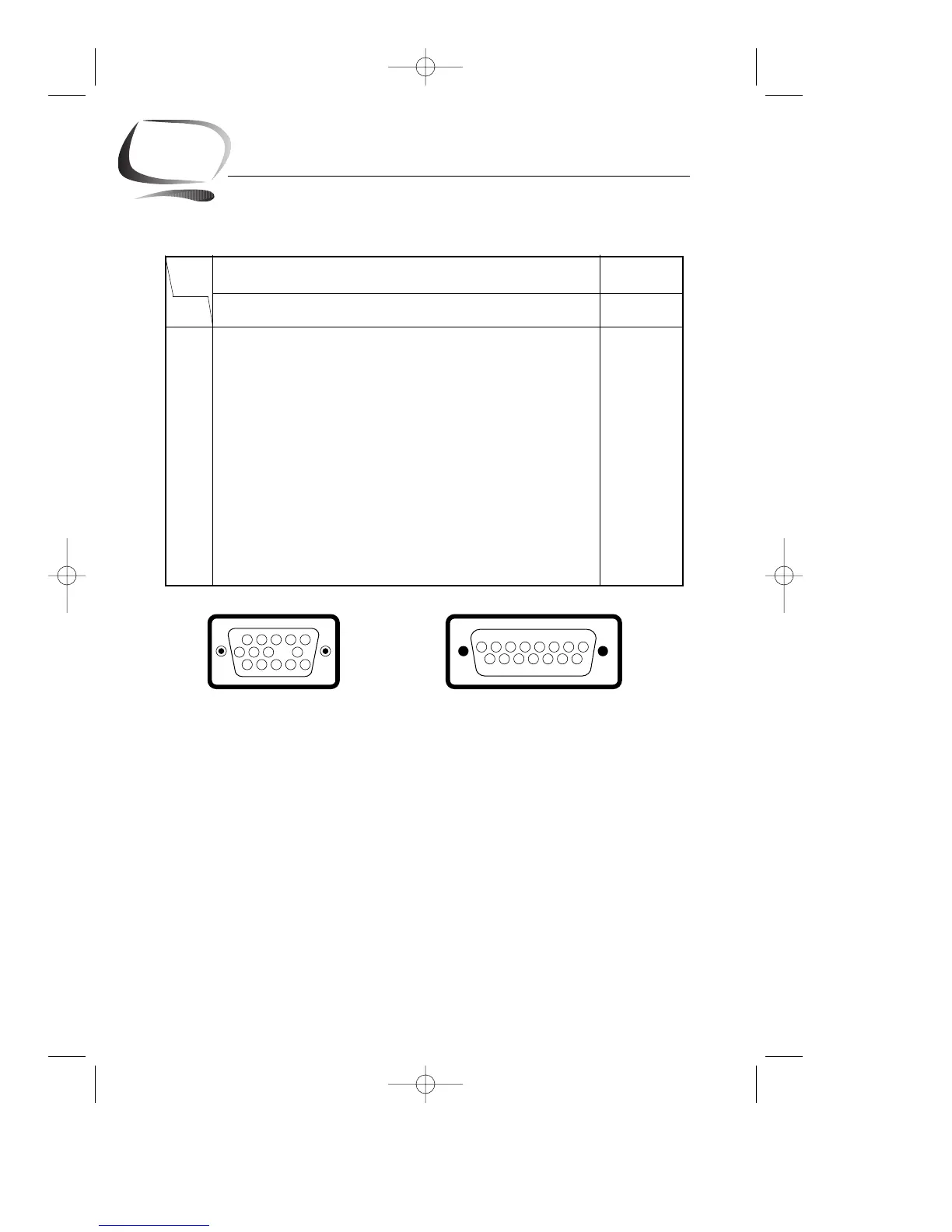

Figure 1: Male Type Figure 2: Male Type
Sync 15-Pin Side of the Signal Cable Cable Adapter
Type (Figure 1) (Figure 2)
Separate Composite Sync on Apple
Pin No. Green MAC II
1 Red Red Red GND-R
2 Green Green Green+Sync Red
3 Blue Blue Blue H/V Sync
4 GND GND GND Sense 0
5 DDC Return DDC Return DDC Return Green
6 GND-R GND-R GND-R GND-G
7 GND-G GND-G GND-G Sense 1
8 GND-B GND-B GND-B Reserved
9 Reserved Reserved Reserved Blue
10 GND-Sync/Self-Raster GND-Sync/Self-Raster GND-Sync/Self-Raster Sense 2
11 GND GND GND GND
12 DDC Data DDC Data DDC Data V-Sync
13 H-Sync H/V-Sync Not Used GND-B
14 V-Sync Not Used Not Used GND
15 DDC Clock DDC Clock DDC Clock H-Sync
Pin Assignments
D-SUB Connectors
