Samsung SyncMaster UD55A

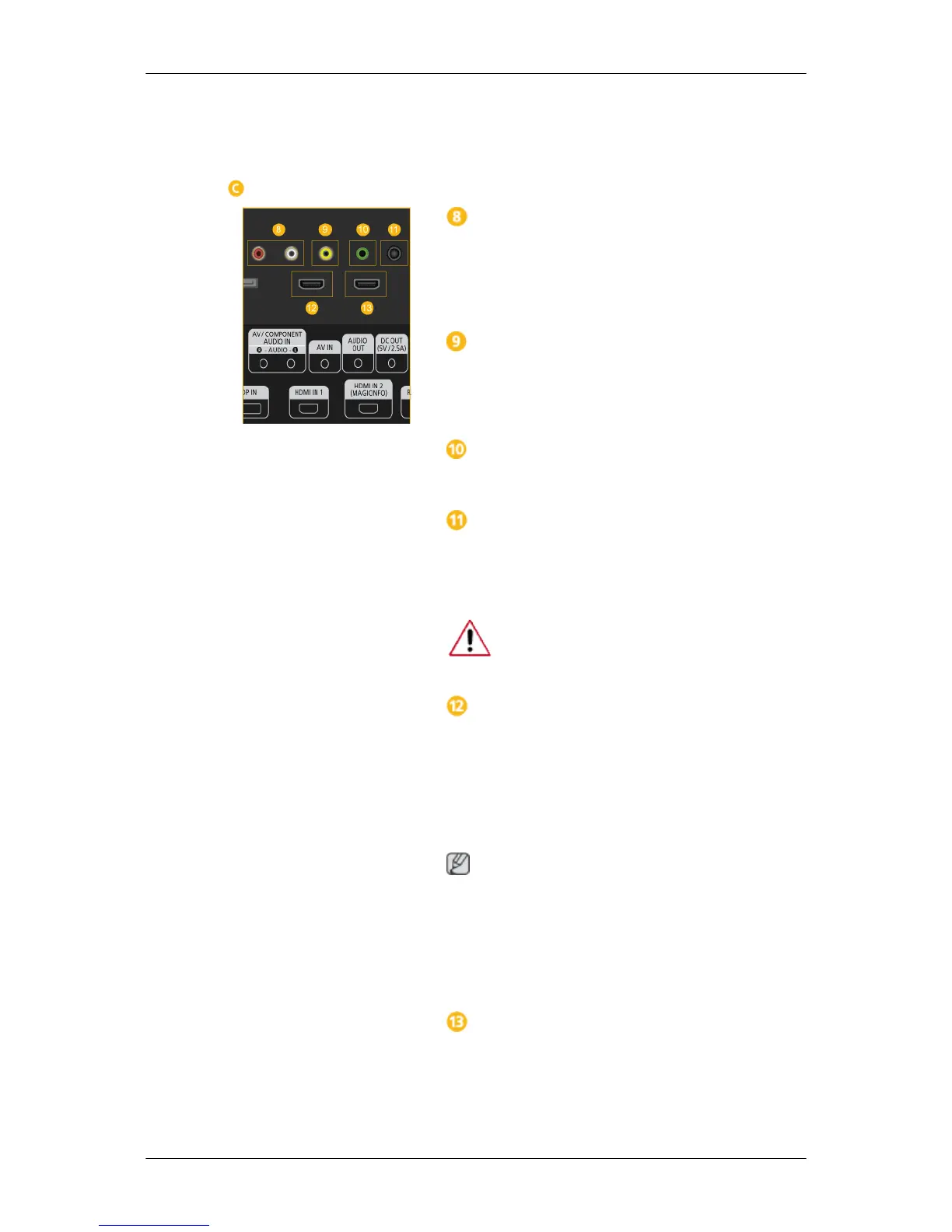

Receives a signal from the Display port.
Connect a
DP cable to [DP IN] on the product and
DP IN on another display.
AV/COMPONENT AUDIO
IN [R-AUDIO-L]
Connect the [AV/COMPONENT AUDIO IN [R-
AUDIO-L]] port on the monitor to the audio
output port on the PC or on the external device
using an audio cable.
AV IN
Connect the [AV IN] terminal
of your monitor to
the video output terminal of the external device
using a VIDEO cable.
AUDIO OUT
Connect a headphone or an External speaker.
DC OUT
Make sure
to use connecting [DC OUT] terminal
to the authorized TV-Tuner Box[SBB_DTC/
ZA].
Otherwise, this may result in damage to
the product.
HDMI IN 1
• Connect the [
HDMI IN 1] terminal at the back
of your LCD Display to the HDMI terminal
of your digital output device using a HDMI
cable.
• Up to HDMI 1.3 can be supported.
Note
• A normal
external device (DVD player or
camcorder, etc.) or a TV tuner box can be
connected to the [HDMI IN 1] terminal.
• To use a TV tuner box, make sure to connect
it to the [HDMI IN 1] terminal.
HDMI IN 2 (MAGICINFO)
• Connect the [
HDMI IN 2 (MAGICINFO)]
terminal at the back of your LCD Display to
the HDMI terminal of your digital output de-
vice using a HDMI cable.
