Samsung SyncMaster UD55A

To Next Page

To Previous Page

Connecting to an Audio System

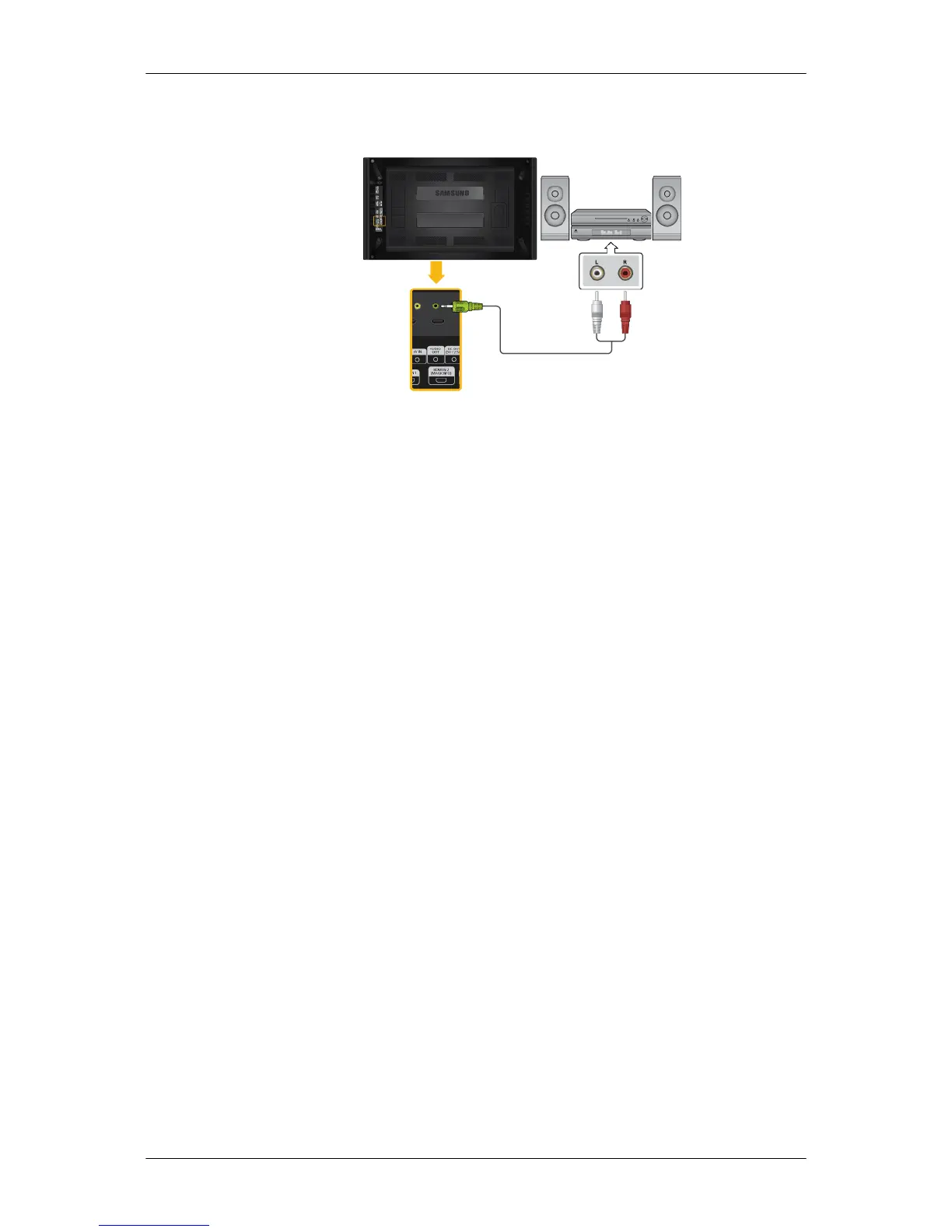

1. Connect a set of audio cables between the AUX L, R jacks on the AUDIO SYS-

TEM and [AUDIO OUT] on LCD Display.
