• Do not mount the product at more than a 15 degree
tilt.
•
Always have two people to mount the product to a
wall.
Model name VESA Spec.(A * B) Standard Screw Quantity
UD55A 600 x 400 M8 4EA
Caution
Do not
install your Wall Mount Kit while your product is turned on. It may result in personal injury
due to electric shock.
Remote Control (RS232C)
Cable connections
interface
RS232C(9 pin)
pin TxD(No.2) RxD(No.3) GND(No.5)
Bits rate 9600 bps
Data Bits 8 bit
Parity None
Stop Bits 1 bit
Flow control None
Maximum length 15 m (only shielded type)

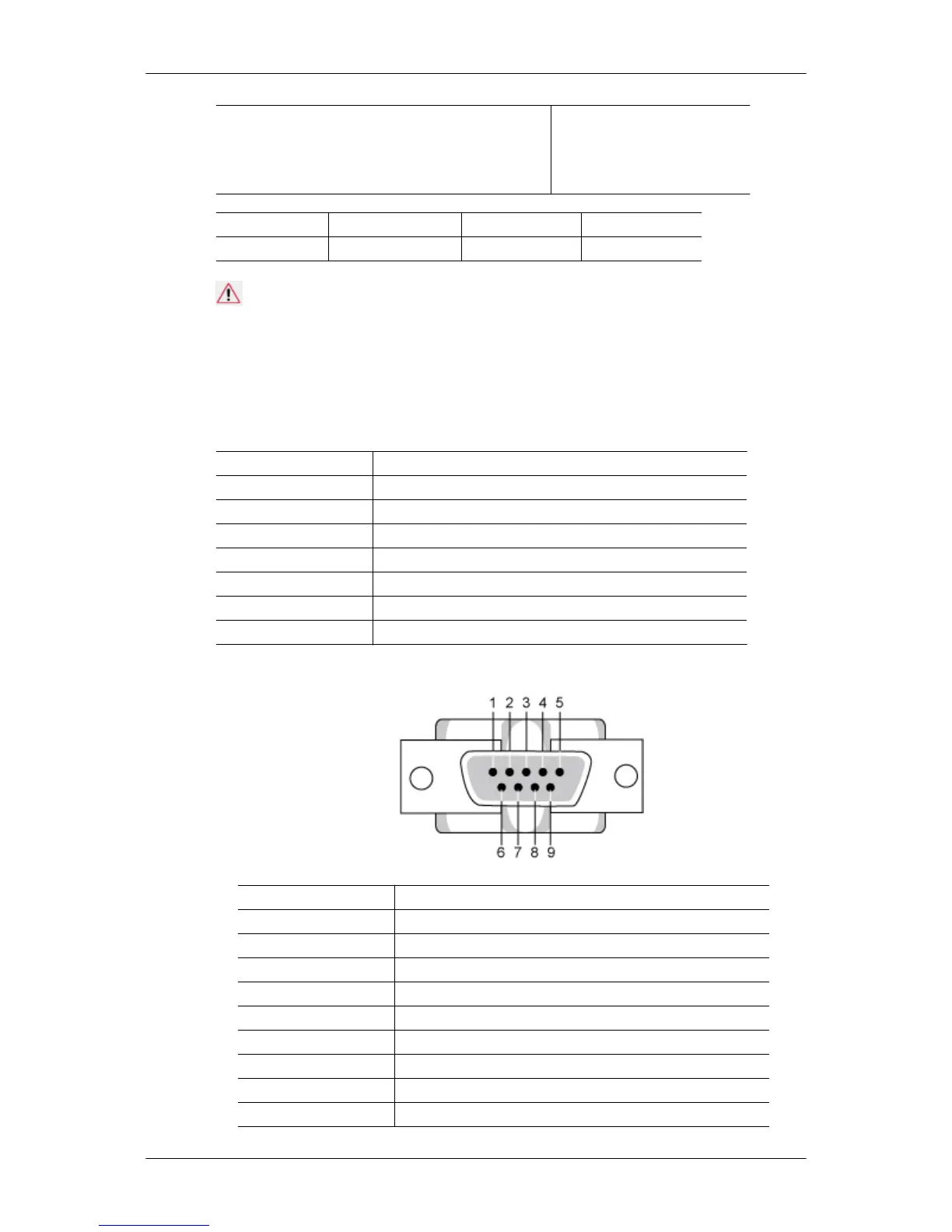

• Pin assignment
Pin Signal
1 Data Carrier Detect
2 Received Data
3 Transmitted Data
4 Data Terminal Ready
5 Signal Ground
6 Data Set Ready
7 Request to Send
8 Clear to Send
9 Ring Indicator
