20
Hall Sensor Check
Check Voltage at Pin #4 and #2 of CN3
Tester Check = DC 0V or 1.3V
Check Voltage at Pin #4 and #3 of CN3
Tester Check = DC 0V or 1.3V
Motor Check
Resistance at Pin #1 and #2 of CN11 = 12Ω
Resistance at Pin #1 and #3 of CN11 = 12Ω
Resistance at Pin #2 and #3 of CN11 = 12Ω
Door Lock Check
Check Voltage at Pin #1 of CN6 and Pin #2 of RY5
When Door Lock = AC 120V
Drain Motor Check
Check Voltage at Pin #5 of CN6 and Pin #2 of RY5
When Drain Motor operates = AC 120V
CIRCLE Motor Check
Check Voltage at Pin #4 of CN6 and Pin #2 of RY5
When Circulation Motor operates = AC 120V
Water Valve Check
Check Voltage at Pin #2,6,7,8,9,10 of CN6 and Pin #2
of RY5
When each valve operates = AC 120V
AC Power Check
Check Voltage at Pin #1 of CN5 and #2 of POWER
RELAY
Tester Check = AC 120V
Wash Heater Relay Check
Check Voltage at Pin #2 of RY6 and PIN #2 of RY5
When Heater Relay operates = AC 120V

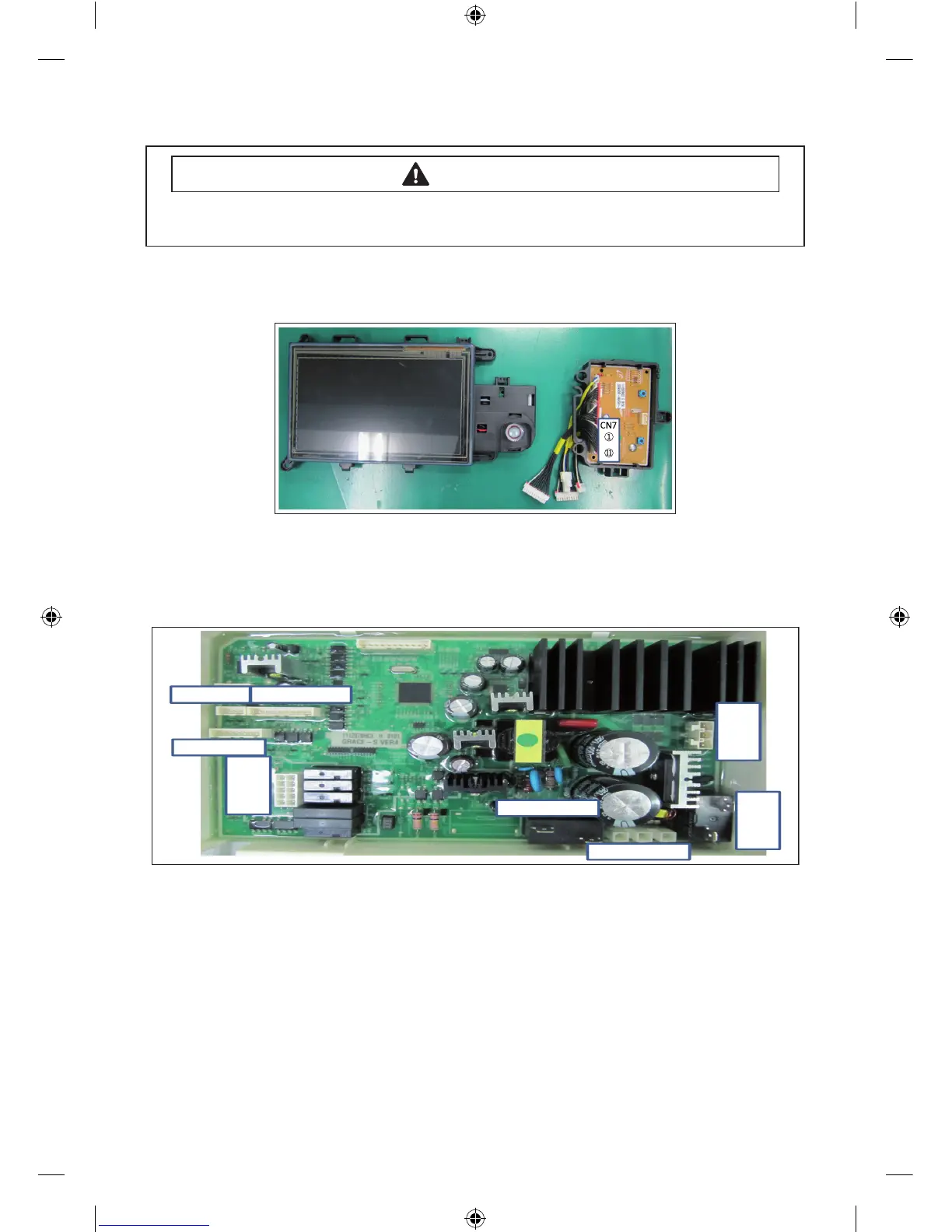

PROBLEM CHECKING AND METHOD OF PCB (Model: WF457AR*)
- If you plug in the power cord and turn Power S/W on, memorized data is displayed.
If any data is not displayed, check the followings.
Thermistor Check
Check Voltage at Pin #8 and #9 of CN7
Tester Check = DC 1.6V
If it ready 5V, check if its connector is engaged
properly.
Water Sensor Check
Check Voltage and Frequency at Pin #10 and #9 of CN7
Reset water level = DC1.6V, 26.0KHz
Check Voltage and Frequency at Pin #11 and #9 of CN7
Reset water level = DC1.6V, 26.0KHz
TROUBLE SHOOTING
To avoid risk of electrical shock, personal injury or death; disconnect power to washer
before servicing, unless testing requires power.
WARNING
CN5 £ ¥
CN11
£
¥
RY5
£
¤
RY6 £ ¤
CN6
¨ §
¬ £
CN3 ¦ £
¬ £ CN7
CN1 ª £
(Techsheet)WF457AR-03152A_EN_20120404.indd 20 2012-04-04 �� 12:12:31
