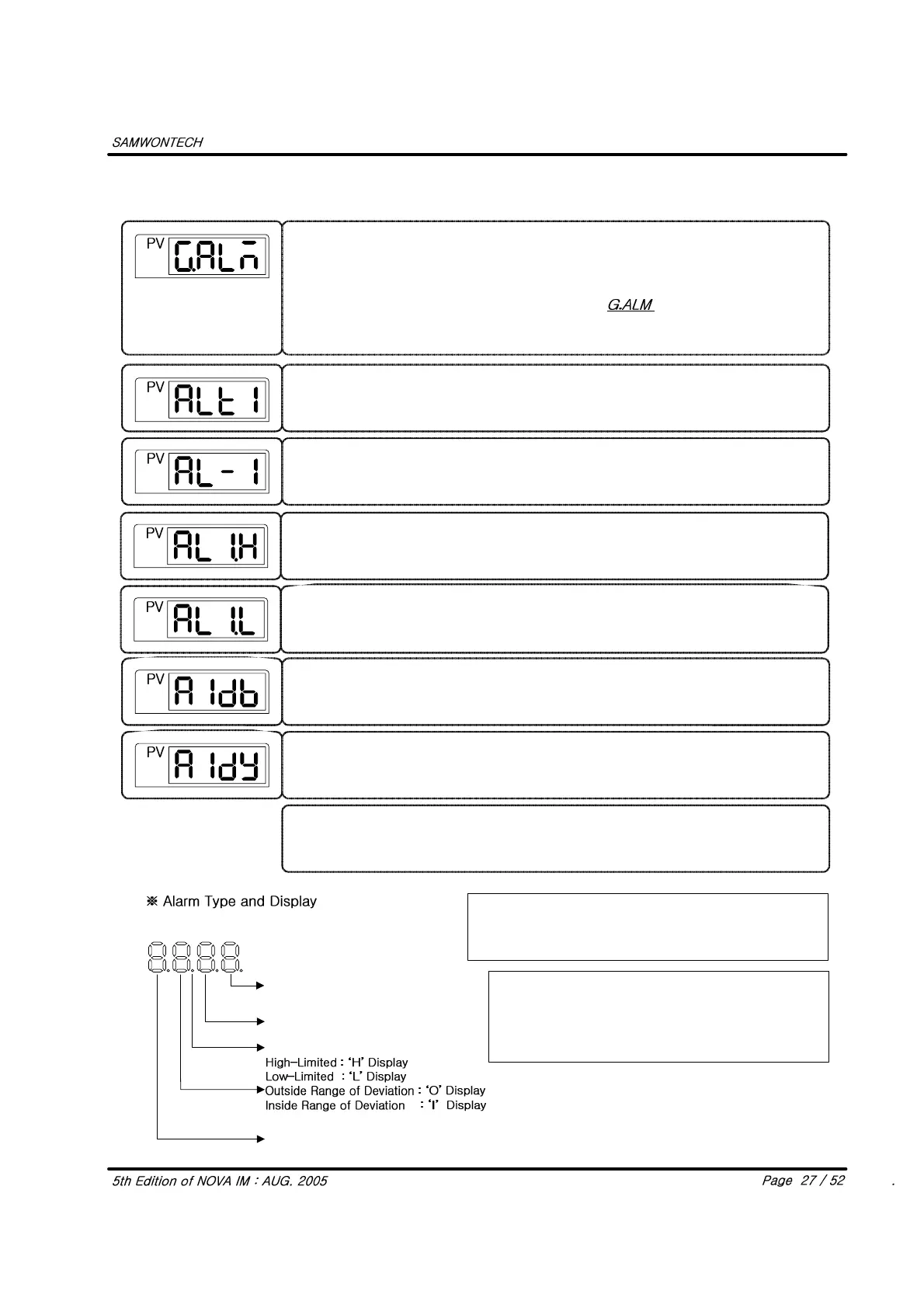

5.7 Alarm Group(G.ALM)
Press SET/ENT Key to select Alarm Group after press ▲ or ▼ Key in Menu
display.
The parameter to set Alarm-1.
The type of Alarm shown as ‘Table 3 Type of Alarm
The parameter to set Alarm point by setting ‘ALT1’.
(Display in the case of Upper-and-Lower-Limit alarm of set point)
The parameter to set DEAD BAND (Hysteresis) of Alarm-1.
The parameter to set Delay Time of Alarm-1 output.
※ The contents of Alarm-2, 3 are the same as Alarm-1.
◎ Output
- Forward : ‘ON’ in Alarm occur, otherwise ‘OFF’.
- Reverse : ‘Off’ in Alarm occur, otherwise ‘ON’.
Standby on : Display ‘S’
Forward(NC) : ‘F’ Display
Reverse(NC) : ‘R’ Display
All time indicate Decimal Point.
Absolute Value Alarm : ‘A’ Display
Deviation Value Alarm : ‘D’ Display
G.AT ↔ G.SP ↔ G.PID ↔ PWD ↔ G.CTL ↔ G.IN
↑ ↕
G.COM ↔ G.RET ↔
↔ G.OUT
▲▼
▲▼
▲▼
▲▼ ▲▼
▼
▲▼
▲▼
▲▼
▲▼
Upper-Limit alarm in the case of Upper-Limit of Deviation, Upper-and-Lower-
Limit alarm and within Upper-and-Lower-Limit Range of Deviation
Lower-Limit alarm in the case of Lower-Limit of Deviation, Upper-and-Lower-
Limit alarm and within Upper-and-Lower-Limit Range of Deviation
◎ Standby Condition
- When Power on
- When change SP value
- When shifts Reset run to Program run.
- when change the type of Alarm.
To Next Page
