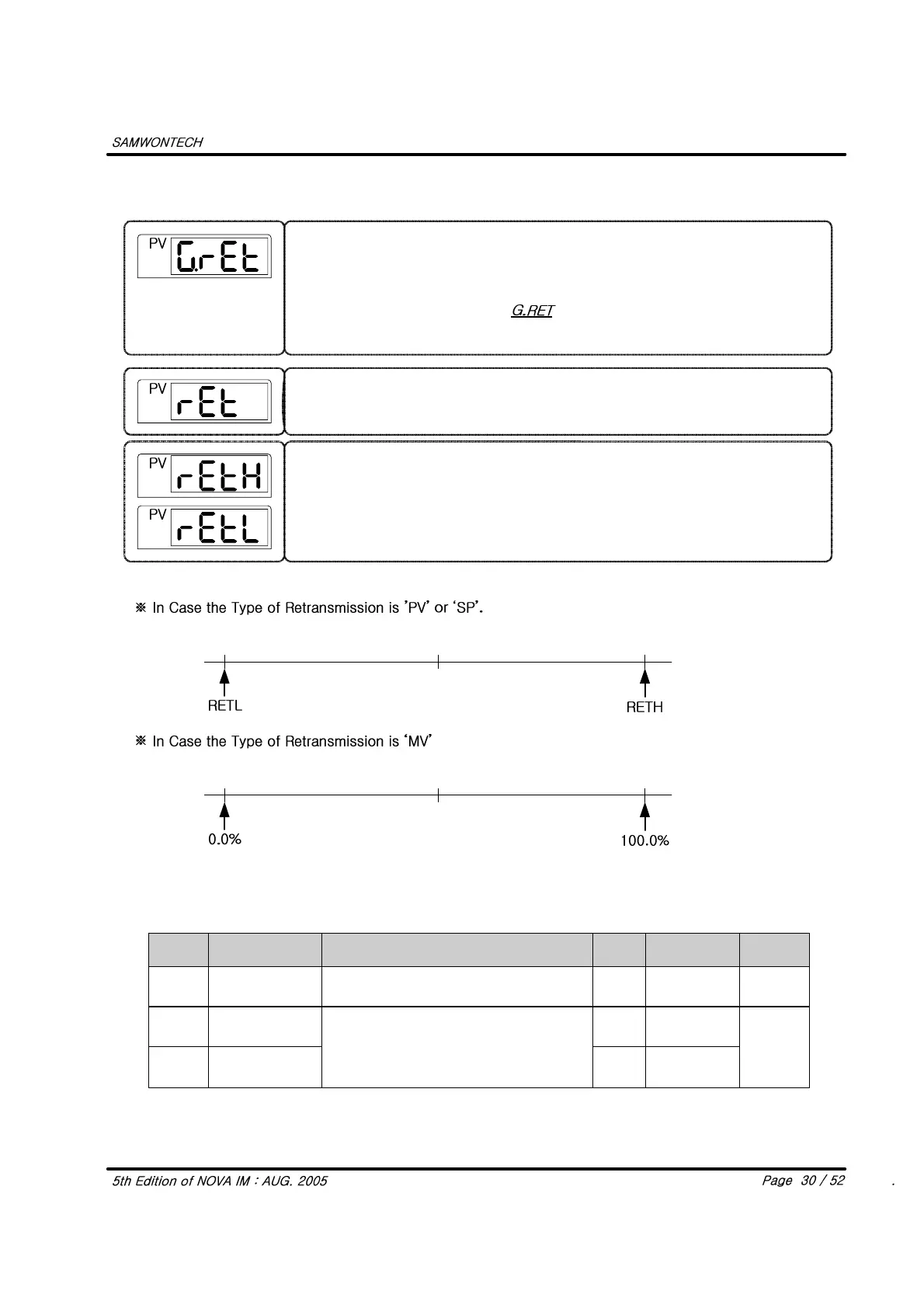

5.8 Retransmission Group(G.RET)
Press SET/ENT Key to select Retransmission Group after press ▲ or ▼ Key in
Menu display.
The parameter to set the type of retransmission.
There are ‘LPS’, ‘PV’,’SP’,’MV’ in the type of retransmission.
Its initial setting is ‘PV’. (LPS : Sensor Supply Power, 18V)
The parameter to set High and low limits for a Retransmission output.
When Retransmission output is specified to ‘PV’ or ‘SP’, the output range is
scaled according to the RETH and RETL setting. (High Limit : 20mA output
scale, Low Limit : 0 or 4mA output scale)
※ if Retransmission output is specified to ‘MV’,it is not display of RETH and
RETL parameter and it displays RETH = 100.0%, RETL = 0.0% fixed.
4.0mA
12.0mA 20.0mA
4.0mA
12.0mA 20.0mA
Sym Parameter
Setting Range
Unit Initial Remark
G.AT ↔ G.SP ↔ G.PID ↔ PWD ↔ G.CTL ↔ G.IN
↑ ↕
G.COM ↔ ↔ G.ALM ↔ G.OUT
▲▼
▲▼
▲▼
▲▼ ▲▼
▼
▲▼
▲▼
▲▼
▲▼
RET Select RET LPS, PV, SP, MV ABS PV
All time
indicate
RETH
High-Limited Value
of Retransmission
T/C, RTD : INRH ∼ INRL
mV, V : INSH ∼ INSL
단, RETH > RETL
EU INRH
When
select
RET=
‘PV’, ‘SP’
RETL
Low-Limited Value
of Retransmission
EU INRL
To Next Page
