SAMWONTECH
4st Edition of TEMI2000_Series IM : Aug. 18. 2009 Page 5 / 55

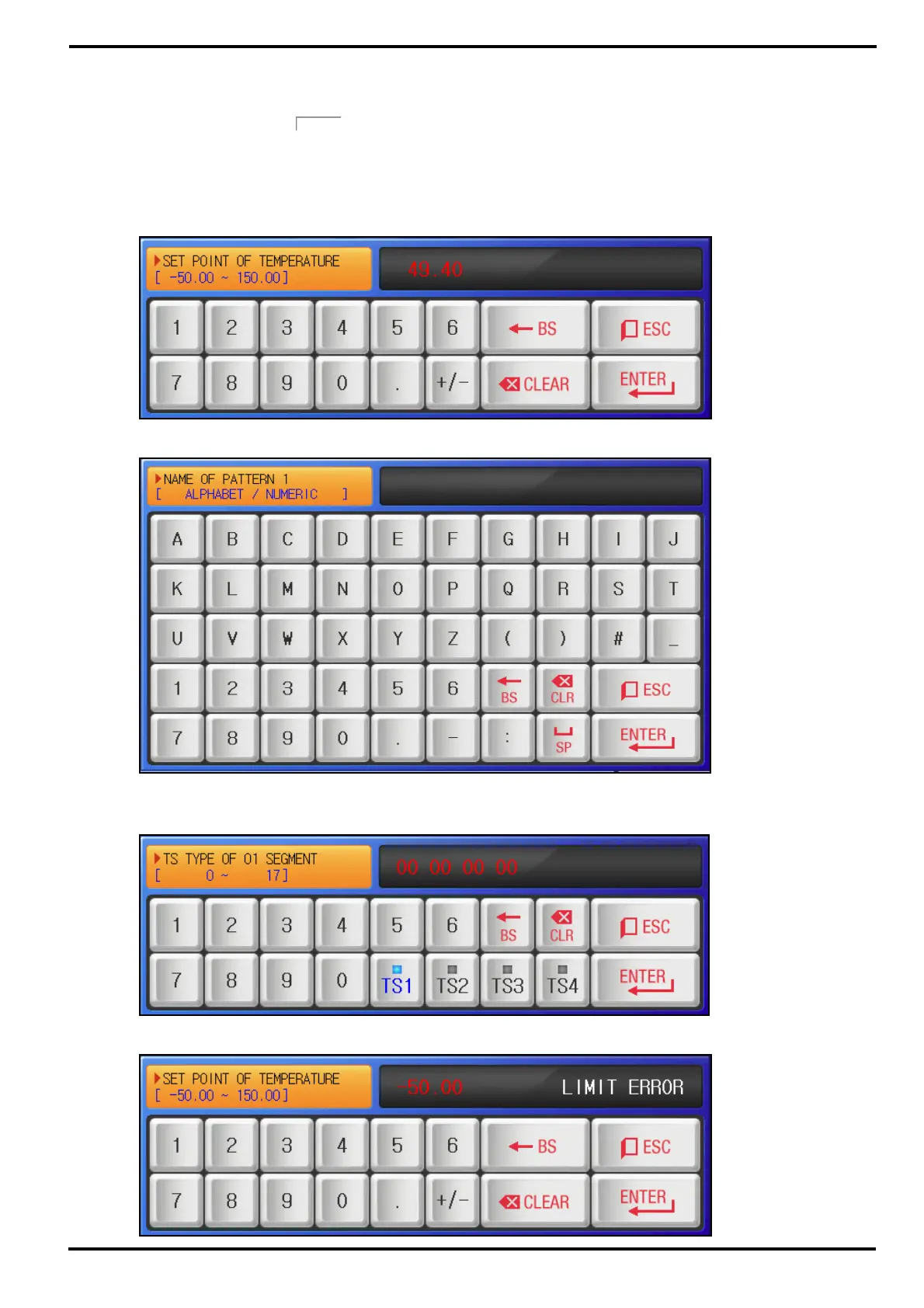

2.3 Input Keypad
▶ When you pressing the
button, the following Input Keypad appears and the required data value
can be set by using this Input Keypad.
▶ If the setting value is out of the available range, ‘LIMIT ERROR’ message will appear with a ‘BEEP’
sound and input will be rejected.
① Numeric Keypad to input numerical values
② Alpha- Numeric Keypad to input Pattern name or DI error name.
☞ For DI ERROR name, refer to the [11.2 DI ERROR NAME] on [Installation Manual]
③ TIME SIGNAL setting Keypad
④ LIMIT ERROR message when out of available rage.
