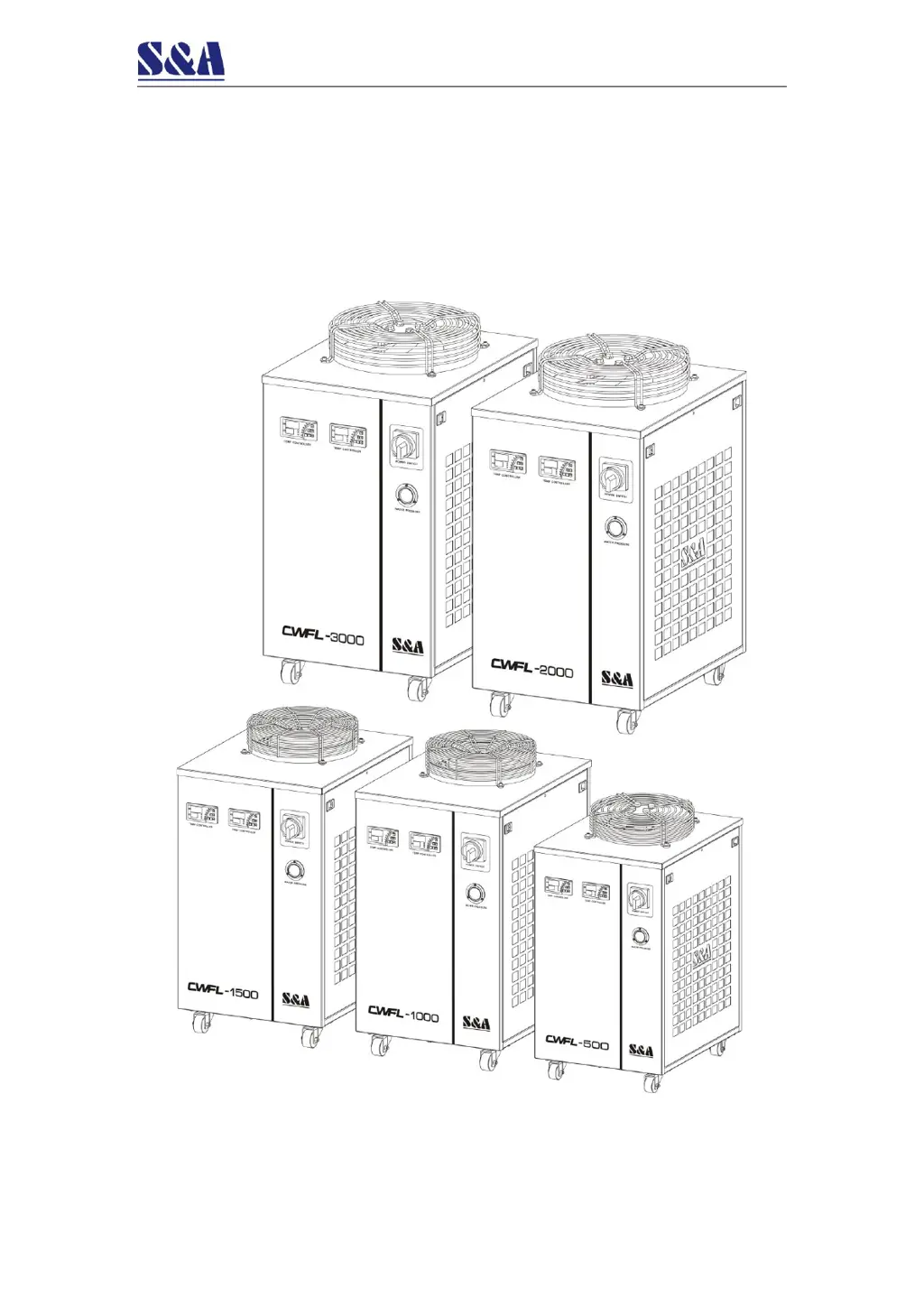

CWFL-500/1000/1500/2000/3000

Industrial Chiller

User Manual

Table of Contents

Questions and Answers

R
Ronald LeeAug 18, 2025
How to fix S&A CWFL-500 ultrahigh water temperature alarm (E2)?
- M
  Matthew PetersonAug 18, 2025
  If your S&A Chiller displays an E2 error, indicating an ultrahigh water temperature alarm, several factors could be responsible. First, the dust gauze might be blocked, hindering thermolysis, so disassemble and clean it regularly. Ensure proper ventilation around the air outlet and inlet. Unstable or extremely low voltage can also trigger this alarm, so improve the power supply circuit or use a voltage regulator. Resetting the thermostat parameters or restoring factory settings might help if the settings are improper. Allow sufficient time (more than 5 minutes) for refrigeration between power cycles. Finally, excessive heat load can cause this issue; reduce the heat load or consider a model with larger cooling capacity.
R
Robert WhiteAug 20, 2025
How to fix S&A CWFL-500 ultrahigh room temperature alarm (E1)?
- J
  johnstonangelaAug 20, 2025
  If your S&A Chiller displays an E1 error, it indicates an ultrahigh room temperature alarm. This typically means the room temperature is too high for the chiller to operate effectively. Improve the ventilation to ensure the machine operates below 40° room temperature.
F
fleonardAug 23, 2025
Why S&A CWFL-500 has condensate water?
- K
  Katherine HillAug 23, 2025
  Condensation on your S&A Chiller can occur when the water temperature is significantly lower than the ambient temperature and humidity is high. To address this, increase the water temperature or insulate the pipeline to preserve heat.
J
John FergusonAug 25, 2025
Why does S&A CWFL-500 Chiller water drain slowly?
- C
  carlosriosAug 26, 2025
  If water drains slowly from the drain port of your S&A Chiller when changing the water, check that the water supply inlet is open.
J
jonesmichaelAug 28, 2025
How to resolve S&A CWFL-500 startup flow alarm?
- J
  John CruzAug 28, 2025
  If your S&A Chiller shows a flow alarm at startup, it may be due to bubbles in the water pipe. Exhaust the air from the system.
E
Erica KennedyAug 30, 2025
Why is my S&A CWFL-500 showing an ultra-high temperature alarm (E2)?
- Q
  qjohnsonAug 30, 2025
  An ultra-high temperature alarm (E2 on the temperature controller) on your S&A Chiller can be triggered by several factors. Check for a blocked dust gauze and clean it regularly to improve thermolysis. Ensure proper ventilation around the air outlet and inlet. Voltage fluctuations can also cause this, so improve the power supply or use a voltage regulator. Reset the thermostat parameters or restore factory settings in case of improper settings. Allow sufficient refrigeration time (over 5 minutes) between power cycles. Finally, reduce the heat load or consider a chiller model with larger cooling capacity if there's excessive heat.
J
jasondonaldsonSep 2, 2025
How to fix S&A CWFL-500 that turns on but is unelectrified?
- N
  Natasha RossSep 2, 2025
  If your S&A Chiller turns on but seems unelectrified, first, check that the power cord is properly plugged into the power interface and that the connection is secure. Also, inspect the fuse in the electric box. If it's burnt out, replace it with a spare, and ensure the power supply voltage is stable. Again, check the power cord and interface for good contact.
G
gedwardsSep 4, 2025
What to do if S&A CWFL-500 Chiller has flow alarm (E6) with equipment but not with direct water pipe?
- P
  pamela25Sep 4, 2025
  If your S&A Chiller displays a flow alarm (E6) when running with other equipment, but operates normally with a direct water pipe connection, the water circulation pipes may be blocked or deformed. Inspect the water circulation pipes.
D
Darlene StevensSep 7, 2025
What causes an ultra-high room temperature alarm (E1) on an S&A Chiller?
- J
  Joshua SmithSep 7, 2025
  If your S&A Chiller displays an alarm for ultra-high room temperature (E1), it means the working ambient temperature is too high. Improve ventilation to ensure the chiller operates below 40 degrees Celsius.
G
garciacherylSep 9, 2025
Why S&A CWFL-500 displays E6 error even with direct water pipe?
- M
  morrisontamaraSep 9, 2025
  If your S&A Chiller shows a flow alarm (E6) even with a direct water pipe connection, the water level in the storage tank might be too low. Check the water level gauge and add water until it reaches the green area. Also, inspect the water circulation pipes for any leaks.

Summary

Safety Notices

Operational Safety Guidelines

Guidelines for professional handling, specification adherence, and avoiding hazardous environments.

Electrical & Physical Safety Warnings

Warnings on electrical connections, covers, water exposure, high voltage, and hot surfaces.

Transport, Installation & Environment

Safety measures for transport, installation, environmental conditions, and liquid transport.

Operational Risks & Leakage Precautions

Hazards during operation, handling internal parts, and refrigerant leakage.

Commissioning & Maintenance Safety

Precautions for pre-operation checks, cleaning, and handling specific components.

Overview of Industrial Chillers

Product Description and Application

Overview of the industrial chiller and its application in laser processing.

Chiller Working Principle Explained

Explanation of the chiller's refrigeration cycle and water circulation.

Chiller Model Identification

Model Components Diagram

Identifies key parts of the chiller model through a diagram.

Product Outlines and Parts

External Component Diagram

Visual representation and labeling of the chiller's external parts.

Chiller Installation Guide

Unpacking and Initial Checks

Steps for opening the package and verifying the machine's condition and accessories.

Voltage, Environment & Medium Requirements

Specifications for stable voltage, horizontal mounting, suitable environments, and cooling media.

Pipeline Layout and Water Filling

Instructions for pipeline connection, water filling, and air exhaustion.

Electrical Connection Standards

Guidance on selecting cables, grounding, and power supply stability.

Test-run and Startup Procedures

Exhausting Air from Water System

Methods for removing air from the water pump and pipe.

Pre-operation Checks

Confirming pipeline connections, valves, water level, and electrical grounding.

Operating States & Parameter Adjustment

Temperature Controller Panel

Introduction to the temperature controller panel and its indicators.

Basic Operation Functions

Using controller keys to display temperature, flow sensor values, and modify parameters.

Restoring Factory Settings

Procedure to reset controller parameters to default factory settings.

Alarm Functions and Settings

Alarm Display and Suspension

Understanding alarm codes and how to suspend audible alarms.

General Parameter Settings

Adjusting parameters like temperature difference and set water temperature.

Advanced Parameter Adjustment

Accessing and modifying advanced settings via password.

Advanced Parameters Adjustment Cases

Intelligent Control Mode Settings

Parameter settings for intelligent mode, controlling temperature based on room temperature.

Constant Temperature Mode Settings

Parameter settings for constant temperature mode, maintaining a fixed water temperature.

Alarm & Output Terminals

Alarm Output Wiring

Wiring diagrams for alarm output terminals connected to aviation plugs or electrical boxes.

Alarm Causes and Status Table

Table detailing alarm conditions, codes, buzzer status, and output terminal states.

Chiller Maintenance Procedures

Regular Dust Removal

Instructions for cleaning filter gauze and condenser dust using compressed air.

Ensuring Water Quality

Guidelines for cleaning or replacing the filter element to maintain water flow and quality.

Simple Troubleshooting Guide

Power and Electrification Issues

Troubleshooting for machine not turning on or fuse burnout.

Flow and Temperature Alarms

Resolving flow alarms and ultrahigh water/room temperature alarms.

Operational and Drainage Problems

Addressing issues like poor ventilation, excessive heat load, and slow drainage.

Attachment - Schematics

CWFL-500;1000 Electrical Schematic

Detailed electrical wiring diagram for CWFL-500/1000 models.

CWFL-1500;2000 Electrical Schematic

Detailed electrical wiring diagram for CWFL-1500/2000 models.

CWFL-3000 Electrical Schematic

Detailed electrical wiring diagram for CWFL-3000 model.
