656-500 10
INSTALLATION

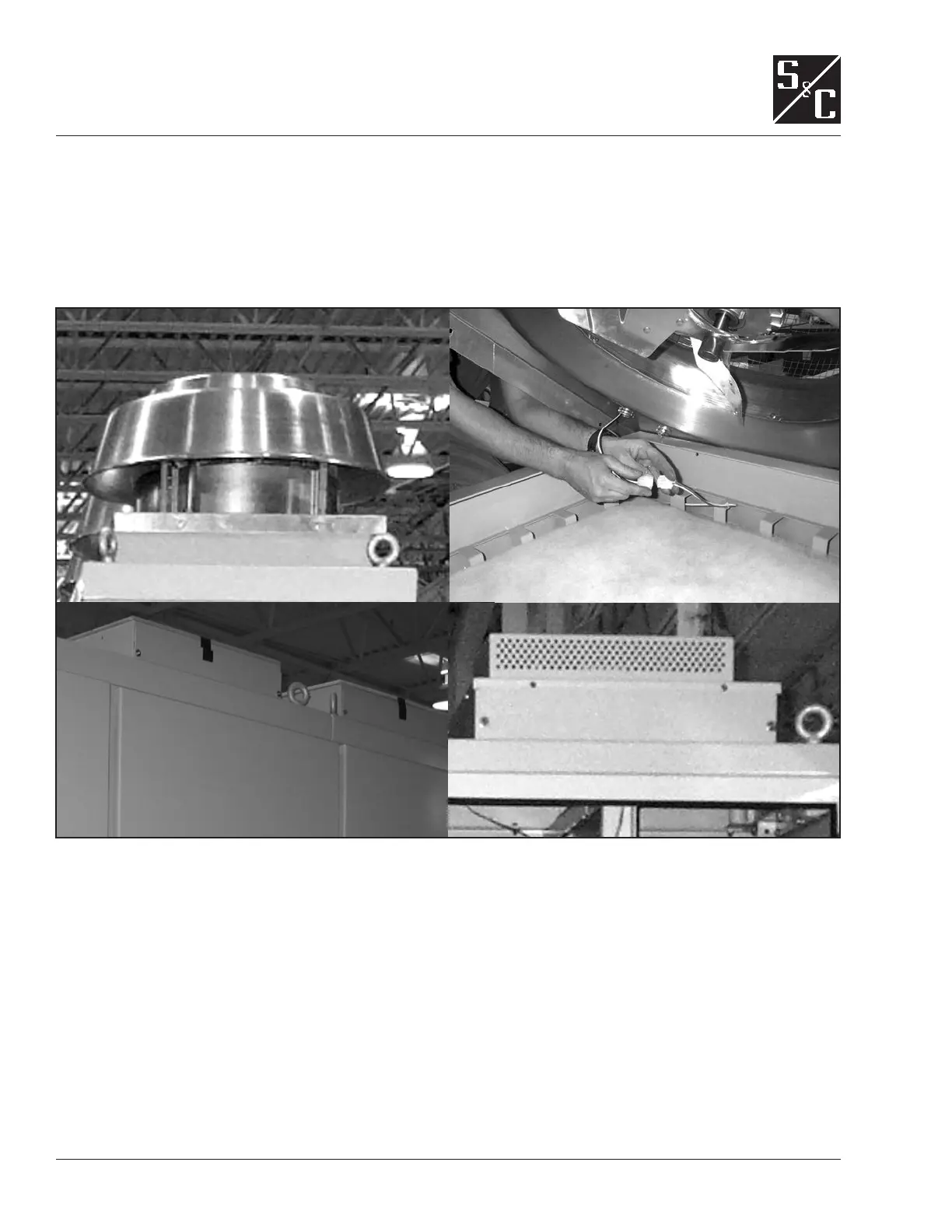

Figure 4. Outdoor fan housing (upper left). Fan power connection (upper right). Fans removed for shipping (lower left). Indoor
fan housing (lower right).
Placement 1. Note the positions of the control section and each of the capacitor sections. See
Figure 3. Determine the section having working clearances most affected by adjacent
walls or structures . . . this section should be placed first.
2. Unbolt each section from its skid and lift it into position on the pad or floor, observing
the precautions discussed under “Handling” on page 7.
3. Fan housings may have been removed for shipping. Reinstall the fan housings using the
hardware provided. See Figure 4.
