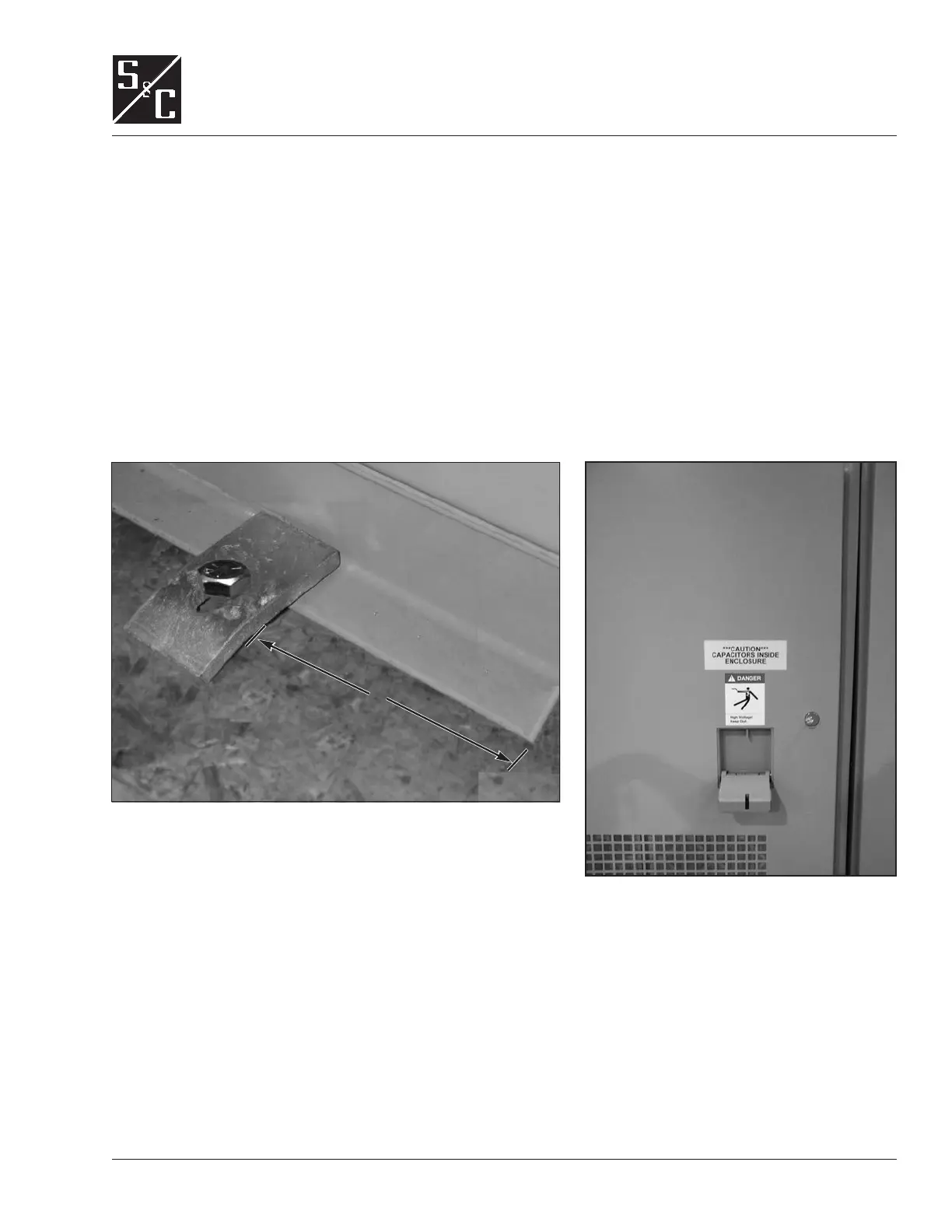

Figure 8. Anchor bracket installation.
INSTALLATION
3. Install anchor brackets to secure the PureWave AVC to the pad or
floor. At a minimum, there should be two brackets on the left side
and two on the right side of the AVC, located approximately 6 inches
from each corner. See Figure 8. Depending on the configuration, the
bottom flange may point inward or outward. An inward flange will
require anchor brackets inside the unit – capacitor trays may have to
be temporarily removed to access the inside corners to mount the
anchor bolts. See Figure 7. Anchor brackets on outward-facing
flanges should be placed to minimize the chance to tripping on the
anchor.
Access to Interior To open a door: Remove the padlock and pull the door handle out-
wards. See Figure 9. If key interlocks have been provided, insert the
key. When the door is opened slightly past 90 degrees, the door holder
at the bottom will engage and prevent the door from closing acciden-
tally.
