INSTALLATION

To close a door: Depress the door holder with your foot while pushing

the door in the closing direction. See Figure 10. Remove your foot and

close the door completely. Push the door handle up and install the pad-

lock.

Grounding 1. Connect the cable ground wires to the grounding system as appro-

priate.

2. Connect the ground pad of the PureWave AVC to the facility system

ground in accordance with the user’s standard grounding practice

and local codes. See Figure 11. Use the equivalent of 4/0 copper (or

cable sized in accordance with the user’s standard practice) in either

a single or multiple connection to attain the momentary rating of the

unit. For a multiple connection, cables smaller than 1/0 copper or

equivalent should not be used.

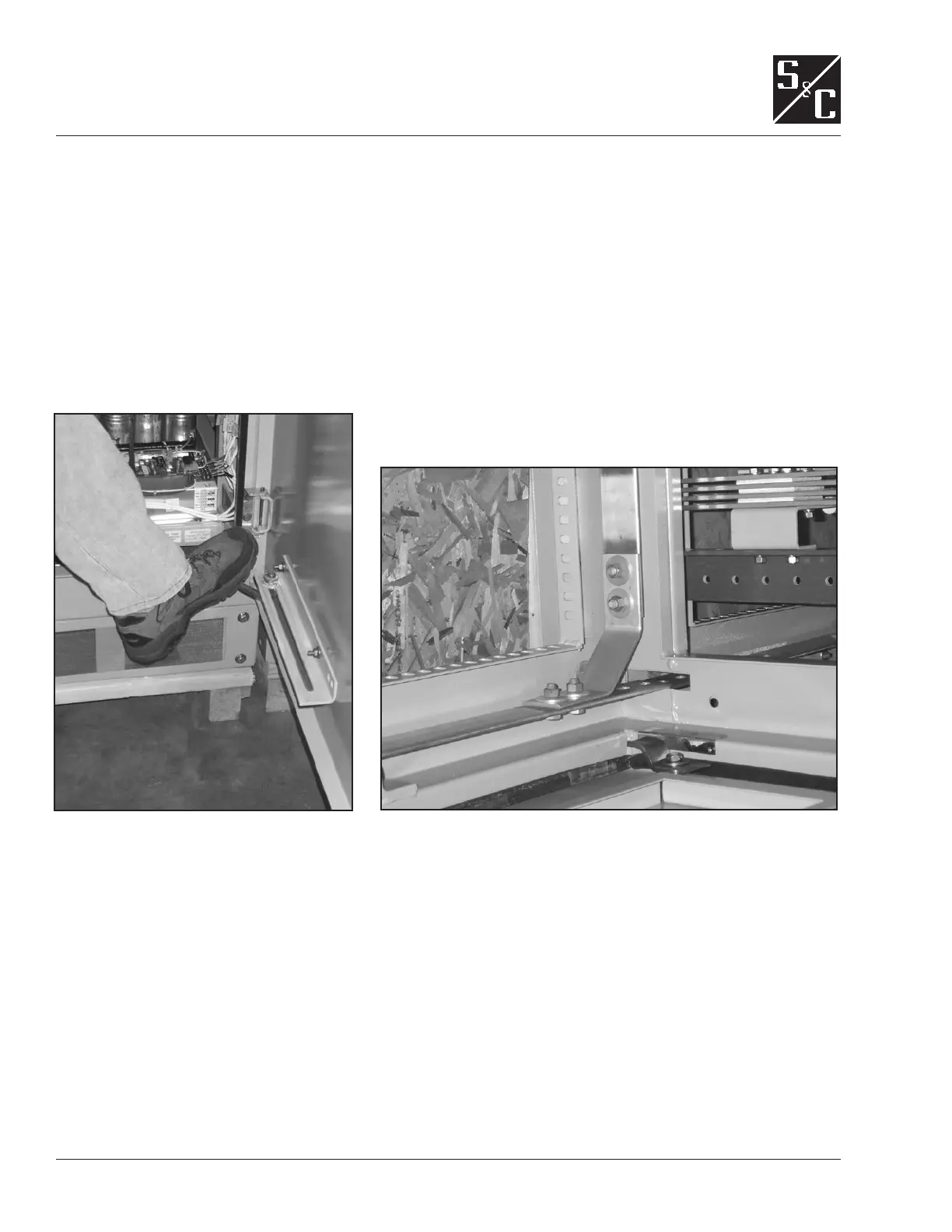

Figure 10. Door holder release with foot. Figure 11. Attach grounding pad to facility system ground.
