S&C Instruction Sheet 461-508LD 5

Specications

TripSaver II Cutout-Mounted Recloser USB

Transceiver

To enhance the wireless connectivity between the

TripSaver II recloser controller module and USB trans-

ceiver, S&C recommends the use of Taoglas External

antenna, model# GW.11.A153 (S&C part number 904-

002523-01) with USB transceiver part number FDA-1868R2.

This control module has been granted modular approval

for TripSaver II Cutout-Mounted Recloser applications.

The final host TripSaver II Cutout-Mounted Recloser and

control module combination have been evaluated in a

certified lab for FCC Part 15B criteria for unintentional

radiators to be properly authorized for operation as a

Part 15 digital device. S&C will provide a test report upon

request.

Control Module Models:

The TripSaver II Cutout-Mounted Recloser control module

provides controls and all logic functions for the proper

functionality of TripSaver II recloser. The control module

has two distinct models:

1. TripSaver II Control 5 (TSII-CONTRL5) has a main

control board that provides standard 5-second open

intervals during the TripSaver II recloser’s reclosing

sequence.

2. TripSaver II Control 6 (TSII-CONTRL6) provides

extended open interval functionality, enabling a

30-second open interval during the TripSaver II

recloser’s reclosing sequence. The main control board

has no sufcient storage energy to implement this

feature. Therefore, a battery and battery charging/

discharging circuitry has been added to supply

necessary energy to the control module.

Both TripSaver II Cutout-Mounted Recloser control

module models cause no changes to the recloser’s outer

enclosure. Overall integration and battery, battery board,

and main control board assembly is shown in Figure 1

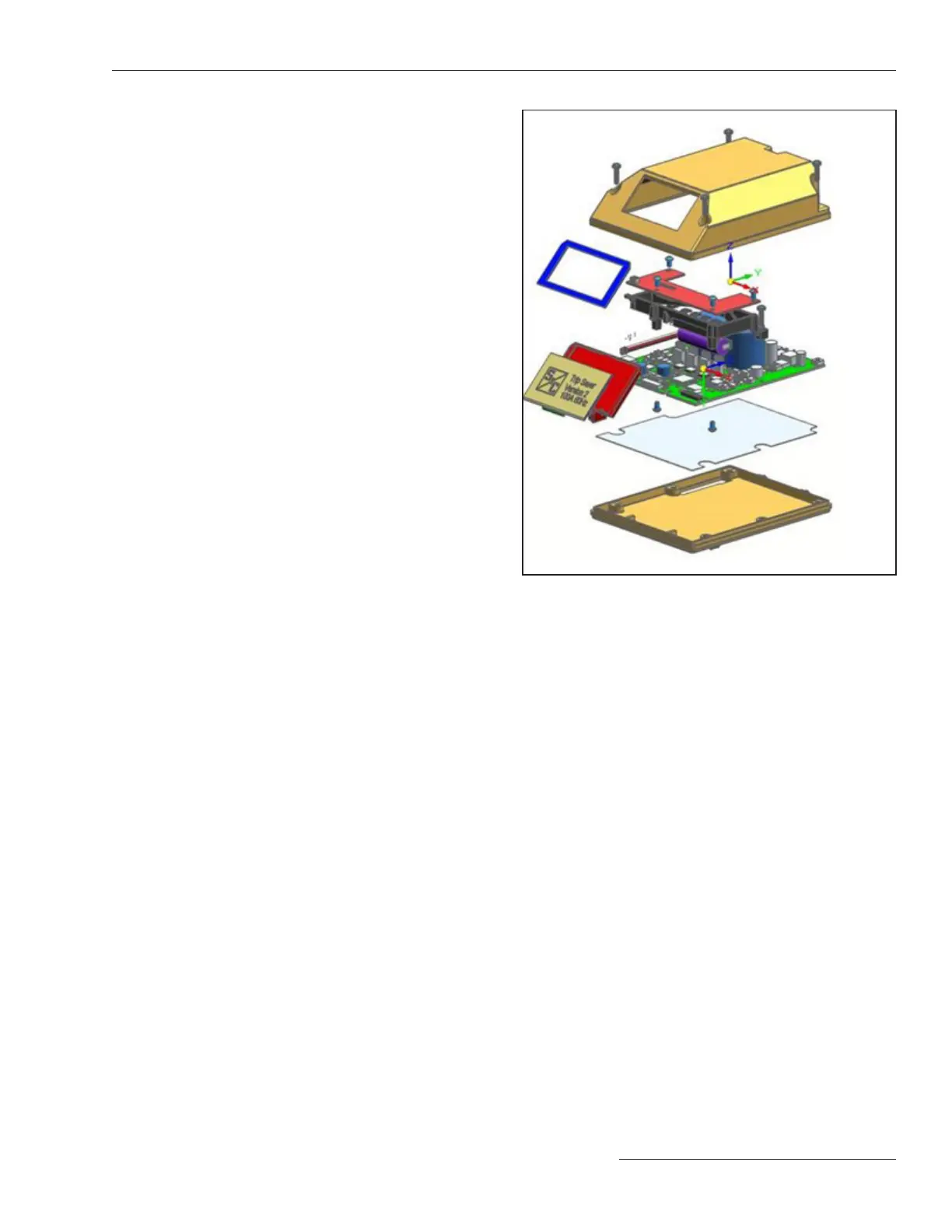

Figure 1. The control module assembly.
