12
ENGLISH
Avoid condensations in electrical cabinet
In units located in outdoor installation where the heat recovery units stop during the night or
during long intervals of time, it is necessary to:
a) Install isolation dampers in air inlet and air outlet.
b) Add anticondensation devices in the electrical cabinet as: cabinet heating elements that pre-
vent condensation formation on cabinet surfaces and electronic components.

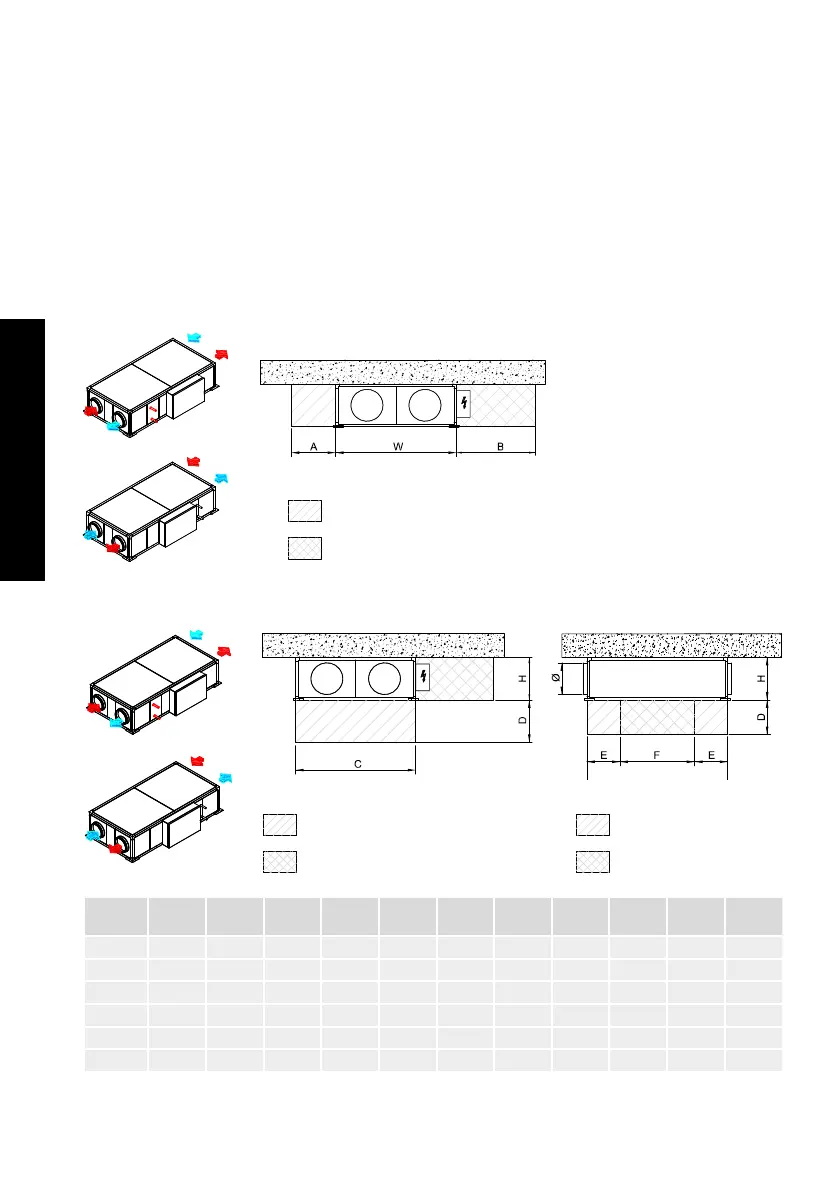

6.2. DIMENSIONS AND FREE SPACE FOR MAINTENANCE
a) Horizontal versions of CADB/T HE 04 to 21 (False ceiling installation)
Distances for maintenance in installations with access from the lateral panels
Conf. LH
Conf. RH
Access to fi lters and heat exchanger
Access to control panel, fans and coils/battery
connections (DI/DC versions)
Distances for maintenance in installations with access from the inferior panels
L
Conf. LH
Conf. RH
Access to fi lters and heat exchanger Access to fi lters and fan
Access to control panel, fans and coils/battery
connections (DI/DC versions)
Access to heat exchanger
Model W H L A B C D Ø E F Weight
(kg)
04 760 375 1520 400 400 700 350 200 350 920 147
08 910 425 1750 450 400 860 400 250 400 950 183
12 1050 425 1700 500 400 1000 400 315 400 900 190
16 1240 450 1950 600 500 1190 425 315 400 1150 235
21 1640 550 2300 800 700 1590 525 400 500 1300 333
33 1640 650 2300 800 700 1590 625 400 500 1300 420
