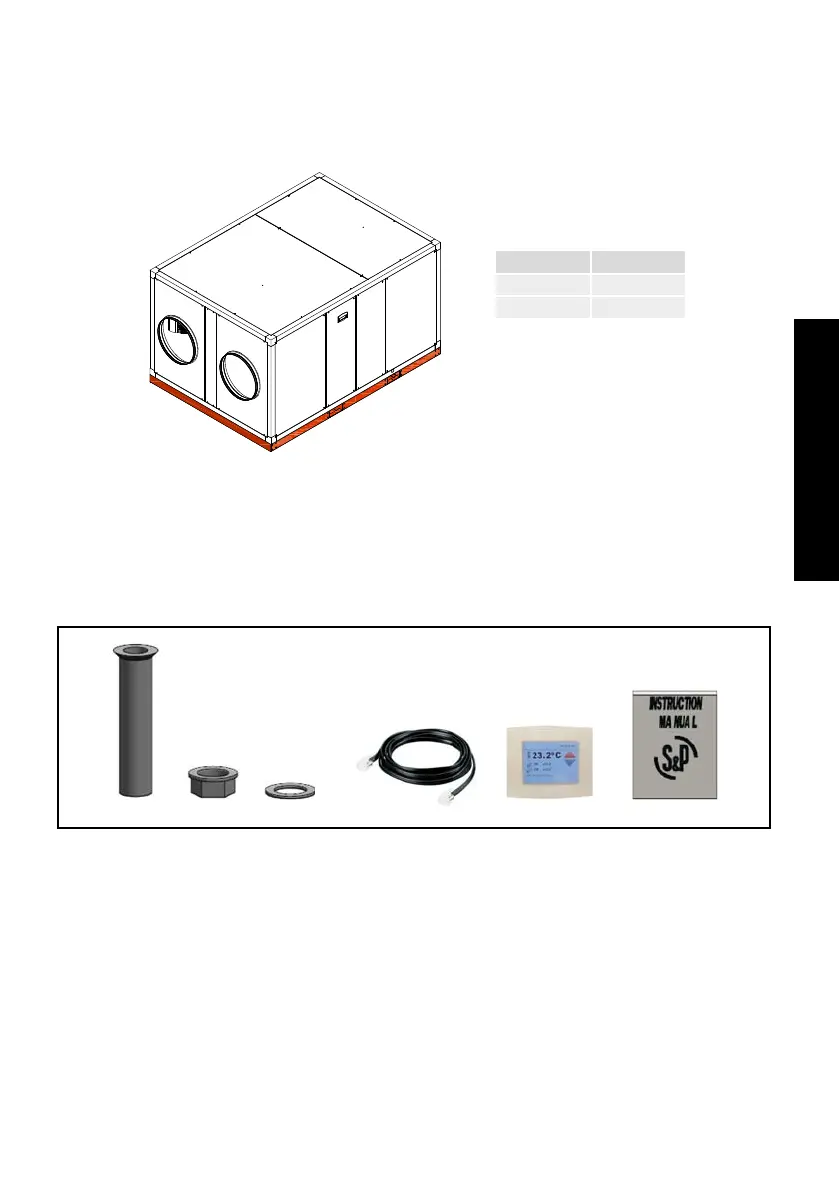

Horizontal models size 40 and 54 are supplied with a perimetral bed. This bed must be in contact with
the ground or with a fl at surface. It is essential that the weight of the equipment is distributed between
all points of support to prevent unit deformation.
The installer must make sure that the ceiling structure and the securing elements can bear the
weight of the unit, taking into account that it is a dynamic load.
Model Weight (kg)
40 597
54 730
For all confi gurations
Once secured the device in correct position, the installer have to realise the connection with air duct,
connection to the electric supply, and in the case of versions with water coil, the connection with closed
circuit of hot water coil.
Inside of the unit are supplied the following accessories:
Drain*
a)
b)
c)
x2 x2 x2 x1
Cable ManualRemote terminal
x1 x1
* In the models 40 and 54 the drain is installed by default in the unit.
The drain is composed by 3 pieces:
a) Drainpipe
b) Female screw
c) Joint ring Install the two drains as indicated in the following drawing:
