Sansui 2000X - Page 20

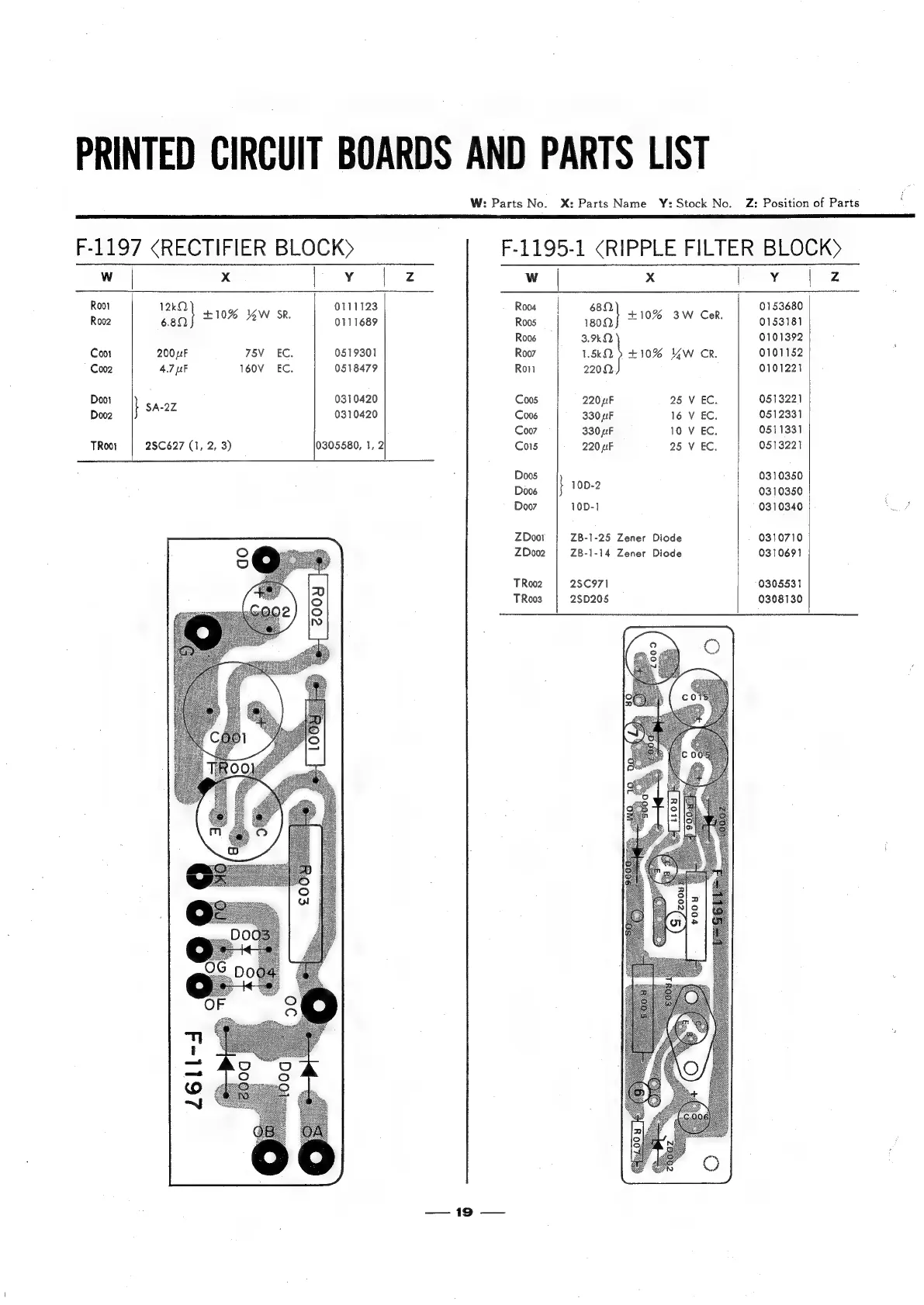

PRINTED CIRCUIT BOARDS AND PARTS LIST
F-1197 <RECTIFIER BLOCK>
Ww
Roo1
Roo2
Coo1
Coo2
Door
Doo2
TRoo1
x
12k
6.80
200puF
4.7 uF
} SA-2Z
28C627 (1, 2, 3)
} +10% WW SR.
75V EC.
160V_ EC.
—_
0111123
0111689
0519301
0518479
0310420
0310420
0305580, 1, 2|
W: Parts No. X: Parts Name Ys: Stock No.
Z: Position of Parts
el ae
WwW x Y Zz
Roos 680, 5 0153680
Roos en Ol Seok: 0183181
Roos 3.9kO, 0101392
Rooz 1.5kQ 5 +10% YW CR. 0101182
Roni 2202 0101221
Coos 220F 25 V EC. 051322]
Coos 330 pF 16 V EC. 0512331
Coo 330 uF 10 V EC, 0511331
Cos 220 pF 25 V EC. 0513221
Doos 0310350
Doos } 100-2 0310350
Doo7 10D-1 0310340
ZDoot | ZB-1-25 Zener Diode 0310710
ZDooz | ZB-1-14 Zener Diode 0310691
TRooz | 2SC971 0305531
TRoos | 2SD205 0308130
