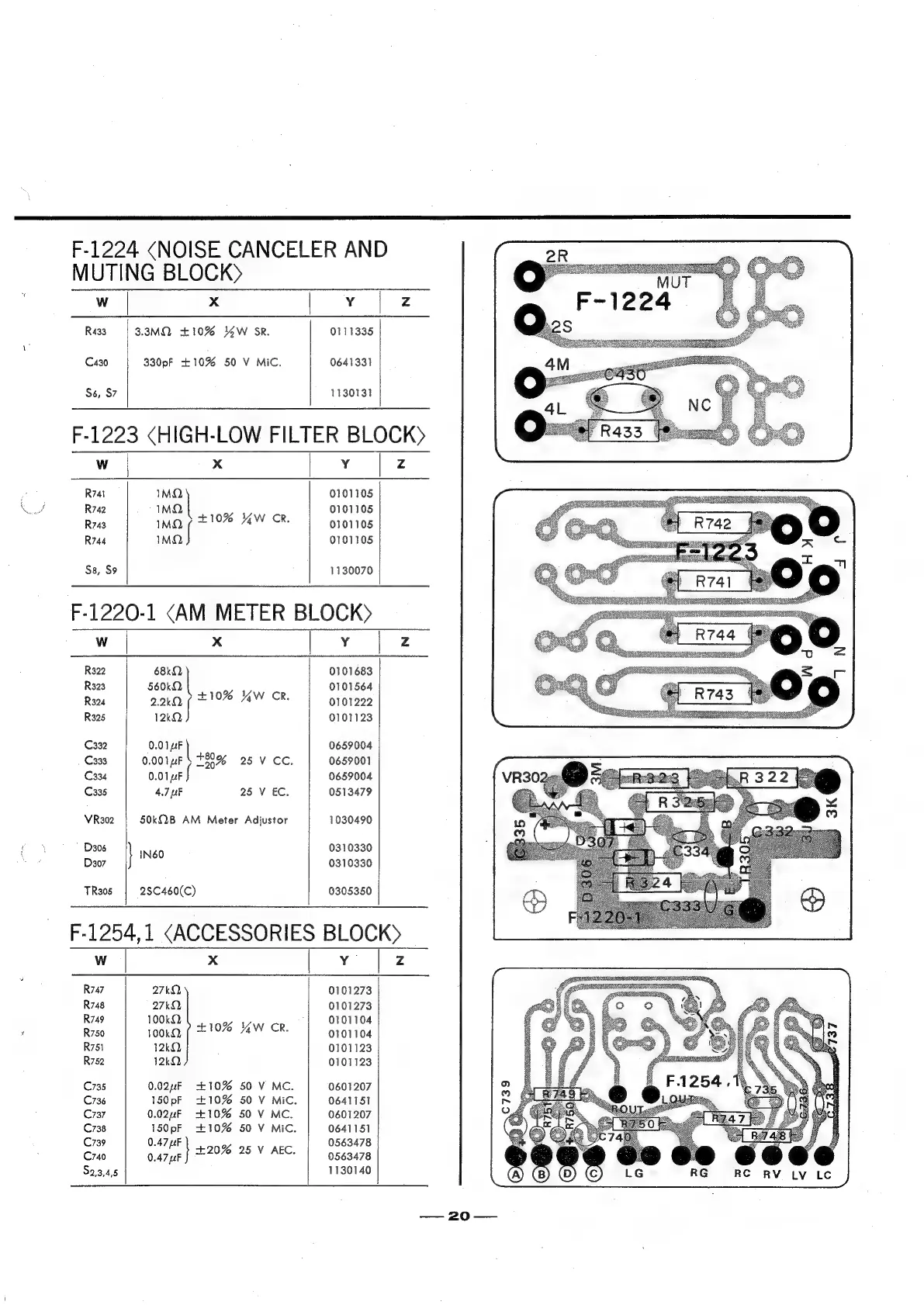

Sansui 2000X - Page 21

F-1224 «NOISE CANCELER AND
MUTING BLOCK)»
Ww Xx Y Zz
R433 3.3MQ, 410% Iw Sr. 0111335
C430 330pF +10% 50 V MiC. 0641331
S6, $7 1130131
Ww x Y z
R741 MQ 0101105
R742 IMQ 0101105
wy YL
R743 hea £10% AW CR. 0101105
R744 IMQ 0101105
Ss, S9 1130070
Ww x Y Zz
R322 68k 0101683
R323 560kQ 0101564
yy 1
Ra24 a 10% JW CR. 0101222
R325 12k, 0101123
C332 0.01 uF | 0659004
C333 0.001 mFS 783% 25 V CC. 0659001
C334 0.01 uF 0659004
C335 4.7 uF 25 V EC. 0513479
VR302 §0kQB AM Meter Adjustor 1030490
D306 } IN6O 0310330
D3o7 0310330
TR305 25C460(C) 0305350
F-1254,1 <ACCESSORIES BLOCK)
Ww x Yo Zz
R747 27k 0101273
R748 27k 0101273
R749 100kQ 0101104
R750 100kO, 10% }4W CR. 0101104
R751 12kQ 0101123
R752 12kO, 0101123
C735 0.02uF +10% 50 V MC. 0601207
C736 150pF +10% 50 V Mic. 0641151
C737 0.02uF +10% 50 V MC. 0601207
C738 150pF +10% 50 V MiC. 0641151
C739 0.47 uF - 0563478
C740 pee AO OO 0563478
$2,3,4,5 1130140 RG RC RV LV LC
— 20-—
