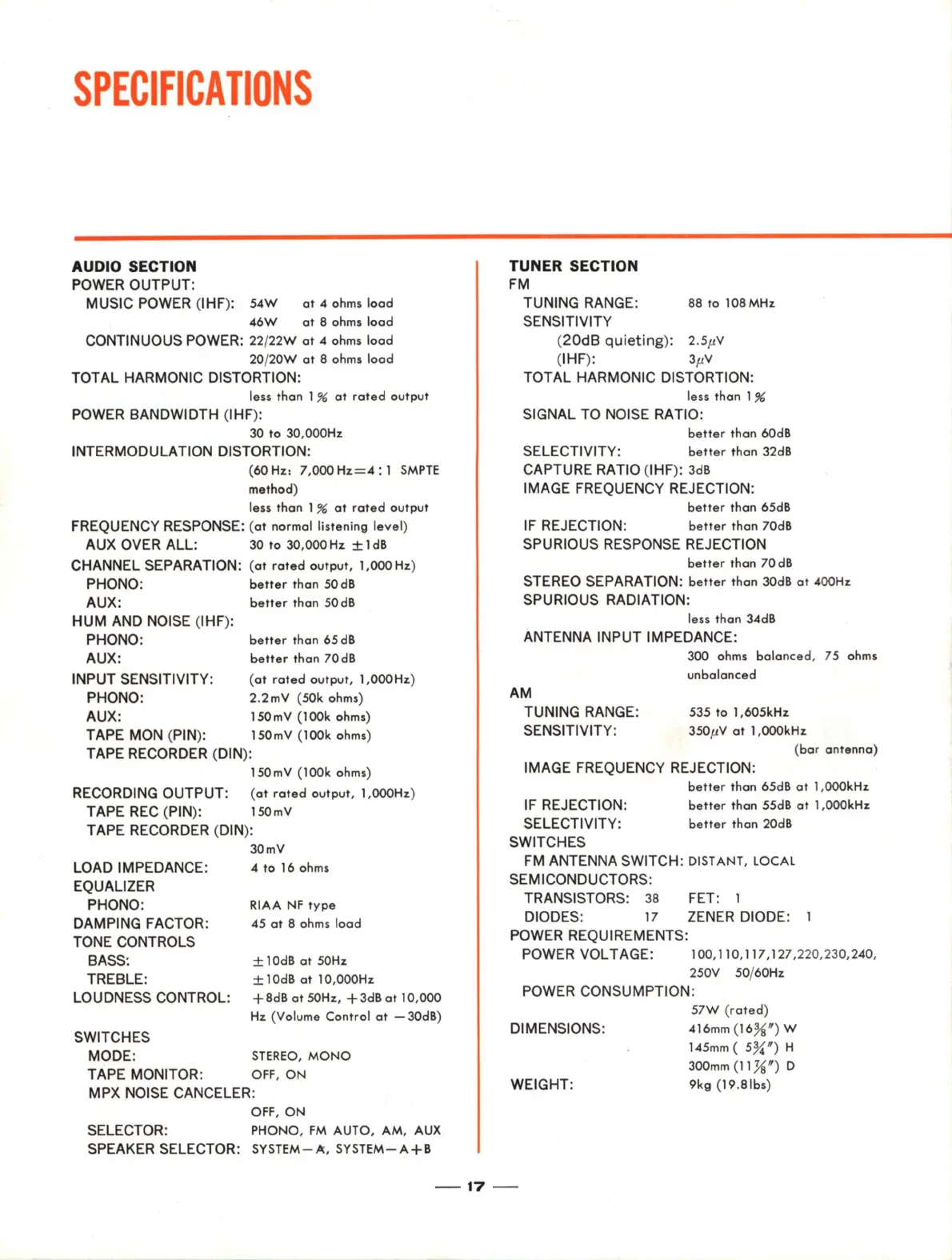

SPECIFICATIONS
AUDIO SECTION
POWER OUTPUT:
MUSIC POWER (IHF):
54W
at
4
ohms
load
46W
at
8 ohms
load
CONTINUOUS POWER:
22
/
22W
at
4
ohms
load
20
/
20W
at
8 ohms
load
TOTAL HARMONIC DISTORTION:
less
than
1
%
at
roted
output
POWER BANDWIDTH (IHF):
30
to
30,000Hz
INTERMODULATION DISTORTION:
(60
Hz,
7,000
Hz= -4: 1
SMPTE
method)
less
than
1
%
at
roted
output
FREQUENCY RESPONSE:
(at
normal listening
level
)
AUX OVER ALL:
30
to
30,000
Hz
±
1
dB
CHANNEL SEPARATION:
(at
roted
output,
1,000
Hz)
PHONO:
better
than
50
dB
AUX:
better
than
50dB
HUM
AND NOISE (IHF):
PHONO:
better
than
65
dB
AUX:
better
than
70dB
INPUT SENSITIVITY:
(at
roted
output
, 1,
000Hz
)
PHONO:
2.
2mV
(50k ohms)
AUX:
150mV
(100k
ohms)
TAPE MON (PIN):
150mV
(100k
ohms)
TAPERECORDER(DIN):
150mV
(100k
ohms}
RECORDING OUTPUT:
(at
roted
output,
1,000Hz
)
TAPE
REC
(PIN):
150mV
TAPE RECORDER (DIN):
LOAD IMPEDANCE:
EQUALIZER
PHONO:
DAMPING
FACTOR:
TONE CONTROLS
BASS:
TREBLE:
LOUDNESS CONTROL:
SWITCHES
30mV
4
to
16 ohms
RIAA
NF
type
45
at
8 ohms
load
±
l0dB
at
50Hz
±
1 0dB
at
10,
000Hz
+ 8dB
at
50Hz, + 3dB
at
10,
000
Hz
(Volume
Control
at
-30dB)
MODE:
STEREO
,
MONO
TAPE MONITOR:
OFF,
ON
MPX NOISE CANCELER:
OFF,
ON
SELECTOR:
PHONO,
FM
AUTO, AM,
AUX
SPEAKER SELECTOR:
SYSTEM
- A,
SYSTEM-A+B
TUNER SECTION
FM
TUNING RANGE:
SENSITIVITY
88
to
108MHz
(
20dB
quieting
):
2.5
µ V
(IHF):
3µV
TOTAL HARMONIC DISTORTION:
less
than
1 %
SIGNAL TO NOISE RATIO:
better
than
60dB
SELECTIVITY:
better
than
32dB
CAPTURE RATIO (IHF):
3dB
IMAGE FREQUENCY REJECTION:
better
than
65dB
IF
REJECTION:
better
than
70dB
SPURIOUS RESPONSE REJECTION
better
than
70
dB
STEREO SEPARATION:
better
than
30dB
at
400Hz
SPURIOUS RADIATION:
less
than
34dB
ANTENNA INPUT IMPEDANCE:
AM
TUNING RANGE:
SENSITIVITY:
300
ohms
balanced
,
75
ohms
unbalanced
535
to
1,605kHz
350µV
at
l ,0OOkHz
(
ba
r
antenna)
IMAGE FREQUENCY REJECTION:
IF REJECTION:
SELECTIVITY:
SWITCHES
better
than
65dB
at
1,000kHz
better
than
55dB
ot
1,000kHz
better
than
20dB
FM
ANTENNA SWITCH:
DISTANT,
LOCAL
SEMICONDUCTORS:
TRANSISTORS:
38
FET:
1
DIODES:
17
ZENER DIODE:
1
POWER REQUIREMENTS:
POWER VOLTAGE:
100,110,117,127
,220,2
30,240
,
250V
50
/60Hz
POWER CONSUMPTION:
DIMENSIONS:
WEIGHT:
57W
(r
oted
)
416mm (16
%")
W
145mm ( 5
¾")
H
300mm (
11
½")
D
9kg
(19.
8lbs)
-1
7 -
