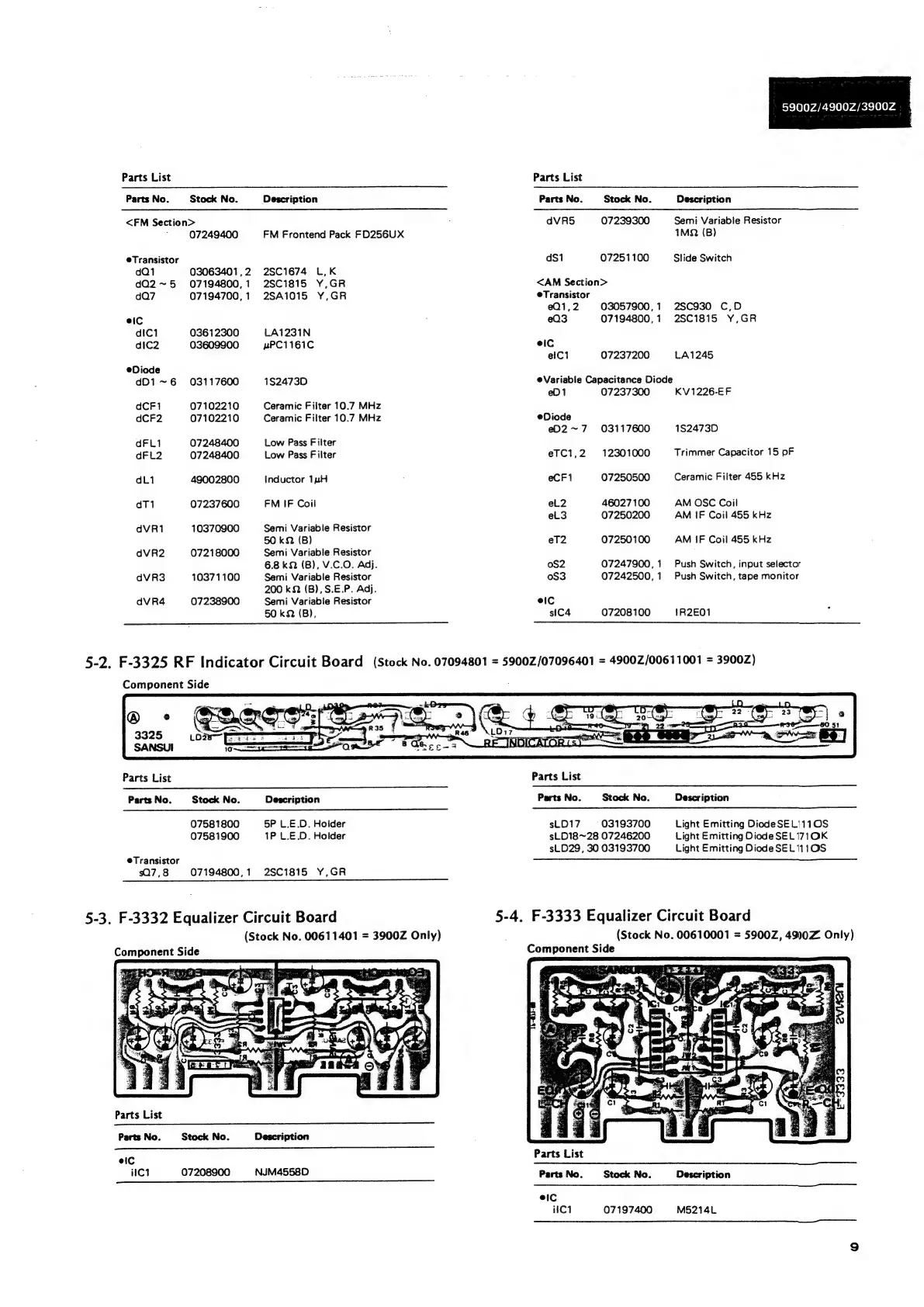

Sansui 5900Z - Page 11

Parts List
Parts No. Stock No. Description
<FM Section>
‘ 07249400 FM Frontend Pack FD256UX
®@Transistor
dQ1 03063401,2 2SC1674 L,K
dQ2~5 07194800,1 2SC1815 Y,GR
dQ7 07194700,1 2SA1015 Y,GR
eiC
dic1 03612300 LA1231N
dic2 03609900 wPC1161C
eDiode
dD1~6 03117600 1$2473D
dCF1 07102210 Ceramic Filter 10.7 MHz
dCF2 07102210 Ceramic Filter 10.7 MHz
dFL1 07248400 Low Pass Filter
dFL2 07248400 Low Pass Filter
dL 49002800 Inductor 14H
dT 1 07237600 FM IF Coil
dVR1 10370900 Semi Variable Resistor
50 kQ (B)
dVR2 07218000 Semi Variable Resistor
6.8 kQ (B), V.C.O. Adj.
dVR3 10371100 Semi Variable Resistor
200 k (B), S.E.P. Adj.
dVR4 07238900 Semi Variable Resistor
50 kQ (B),
5900Z/49002/39002
Parts List
Parts No. Stock No. Description
dVR5 07239300 Semi Variable Resistor
1MQ (B)
dS1 07251100 Slide Switch
<AM Section>
eTransistor
eQ1,2 03057900,1 2SC930 C,D
eQ3 07194800,1 2SC1815 Y,GR
eiC
elC1 07237200 LA1245
eVariable Capacitance Diode
eD 1 07237300 KV 1226-EF
eDiode
e02~7 03117600 1$2473D
eTC1,2 12301000 Trimmer Capacitor 15 pF
eCF1 07250500 Ceramic Filter 455 kHz
eL2 46027 100 AM OSC Coil
eL3 07250200 AM IF Coil 455 kHz
eT2 07250100 AM IF Coil 455 kHz
oS2 07247900,1 Push Switch, input selector
oS3 07242500, 1 Push Switch, tape monitor
eiC
siC4 07208100 1R2E01
5-2.
F-3325
RF
Indicator
Circuit
Board
(Stock
No.
07094801
=
5900Z/07096401
=
4900Z/00611001
=
3900Z)
Component Side
Parts List
Parts No. Stock No. Description
07581800 5P L.E.D. Holder
07581900 1P L.E.D. Holder
Transistor
sQ7,8 07194800,1 2SC1815 Y,GR
5-3. F-3332 Equalizer Circuit Board
(Stock No. 00611401 = 3900Z Only)
Component Side
Parts List
Parts No. Stock No. Description
eIC
iIC1 07208900 NJM4558D
Parts List
Parts No. Stock No. Description
sLD17 03193700 Light Emitting DiodeSEL'11O0S
sLD18~28 07246200 Light Emitting Diode SEL 1710K
sLD29, 30 03193700 Light Emitting Diode SEL 1110S
5-4. F-3333 Equalizer Circuit Board
(Stock No. 00610001 = 5900Z, 49)0Z Only)
Component Side
Parts List
Parts No. Stock No. Description
eiC
iC 07197400 M5214L
