002Z/8900ZDB/7900Z |

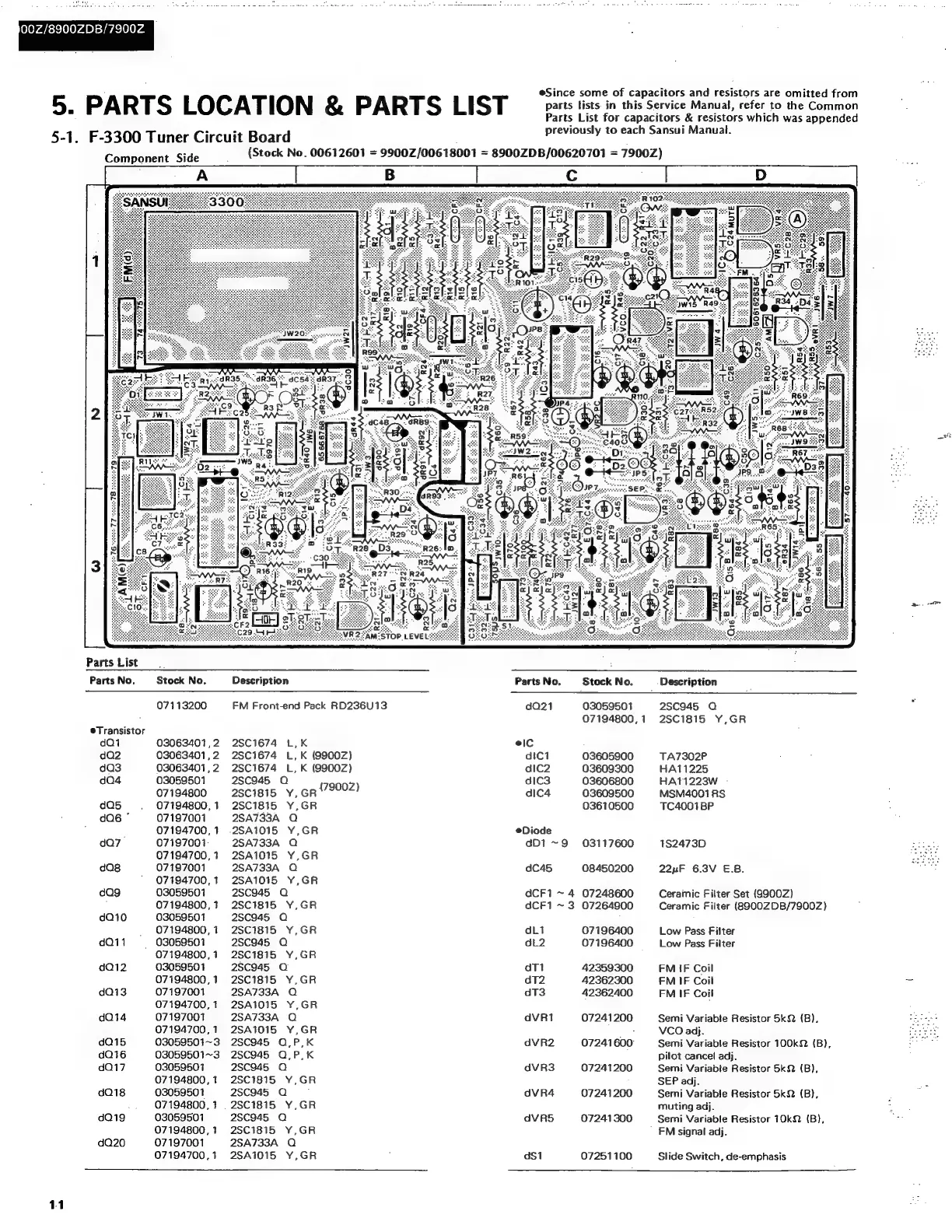

5. PARTS LOCATION & PARTS LIST
Since some of capacitors and resistors are omitted from
parts fists. in this Service Manual, refer to the Common
Parts List for capacitors & resistors which was appended
previously to each Sansui Manual.
5-1. F-3300 Tuner Circuit Board
(Stock No. 00612601 = 9900Z/00618001 = 8900ZDB/00620701 = 7900Z)
Component Side
A
Parts List
Parts No. Stock No. Description Parts No. Stock No. Description
07113200 FM Front-end Pack RD236U13 da21 03059501 2SC945 QO
* 07194800,1 2SC1815 Y,GR
Transistor
dQ1 03063401,2 2SC1674 L,K eic
dQ2 03063401,2 2SC1674 L,K (99002) dici 03605900 TA7302P
dQ3 03063401,2 2SC1674 L, K (99002) dIc2 03609300 HA11225
da4 03059501 2SC945 Q 179002) dic3 03606800 HA11223W
07194800 2S8C1815 Y,GR dic4 03609500 MSM4001 RS
dQ5 077194800,1 2SC1815 Y,GR 03670500 TC4001 BP
dQ6 ° 07197001 2SA733A OQ
07194700,1 .2SA1015 Y,GR e@Diode
dQ7> 07197001 2SA733A Q dD1 ~9 03117600 182473D
07194700,1 2SA1015 Y,GR
dQs 07197001 2SA733A Q dc45 08450200 22uF 6.3V E.B.
07194700,1 2SA1015 Y,GR
dag 03059501 2sc945 Q dCF1 ~ 4 07248600 Ceramic Filter Set {Q900Z)
07194800,1 2SC1815 Y,GR dCF1 ~ 3 07264900 Ceramic Filter (8900ZDB/7900Z)
dQ10 03059501 28¢c945 Q
07194800,1 2SC1815 Y,GR dLt 07196400 Low Pass Filter
dQi1 _ 03059501 2S8c945 OQ dbL2 07196400 Low Pass Filter
07194800,1 2SC1815 Y,GR
dQ12 03059501 28C945 QO dT1 42359300 FM IF Coil
07194800,1 2SC1815 Y,GR dT2 42362300 FM IF Coil
daQi3 07197001 2SA733A Q dT3 42362400 FM IF Coil
07194700,1 2SA1015 Y,GR :
doa 07197001 2SA733A Q dVRI1 07241200 Semi Variable Resistor 5k (B),
07194700,1 2SA1015 Y,GR m8 VCO adj.
dQ15 03059501~3 2SC945 O,P,K dVR2 07241600 Semi Variable Resistor 100k. (B),
dQi6 03059501~3 2SC945 Q,P,K pilot cancel adj.
dQ17 03059501 28C945 OQ dVR3 07241200 Semi Variable Resistor 5k2 (B),
07194800,1 2SC1815 Y,GR SEP adj.
dQ18 03059501 28C945 Q : dVR4 07241200 Semi Variable Resistor 5kQ (B),
a 07194800,1 .2SC1815 Y,GR muting adj.
dQ19 03059501 2S8C945 Q dVR5 07241300 Semi Variable Resistor 10k (B),
07194800,1 2SC1815 Y,GR FM signal adj.
dQ20 07197001 2SA733A OQ
07194700,1 2SA1015 Y,GR dS1 07251100 Slide Switch, de-emphasis
