Fig. 4.5
colorants depositing.
 Washing assembly：Clean the nozzle after colorant dispensing. The washing wheel wants to be keeping clean
to insure the washing function for the nozzles.
 Lifting assembly：with the assistance of electrical control system, the
machine can make the piston up and down so to dispense colorant out.
Only authorized personnel are allowed to open the front door for service.
 Loading plate：base paint can is located here. Put bracket up or side face
according to the size of paint cans. Photoelectric sensor（Fig. 4.5）will
sense the base paint can.
5. Installation
5
5
.
.
1
1
M
M
a
a
c
c
h
h
i
i
n
n
e
e
I
I
n
n
s
s
t
t
a
a
l
l
l
l
i
i
n
n
g
g
 Unpack the wooden case and inner film of the
machine with necessary tools.
 Take out tool box, check the items inside according
to the packing list. Preserve the tool box for next
use.
 Get the side door keys from the tool box and
unlock the lock to open the side door.
 Remove the transportation fixing plates using inner
hexagon spanner 5.
 Remove the four screws on the foundation by using
the spanner 19. Move the machine to the working
site.
 Use the spanner 19 to rotate the four feet clockwise.
Level the machine. Make sure the machine doesn’t
move or make noise.

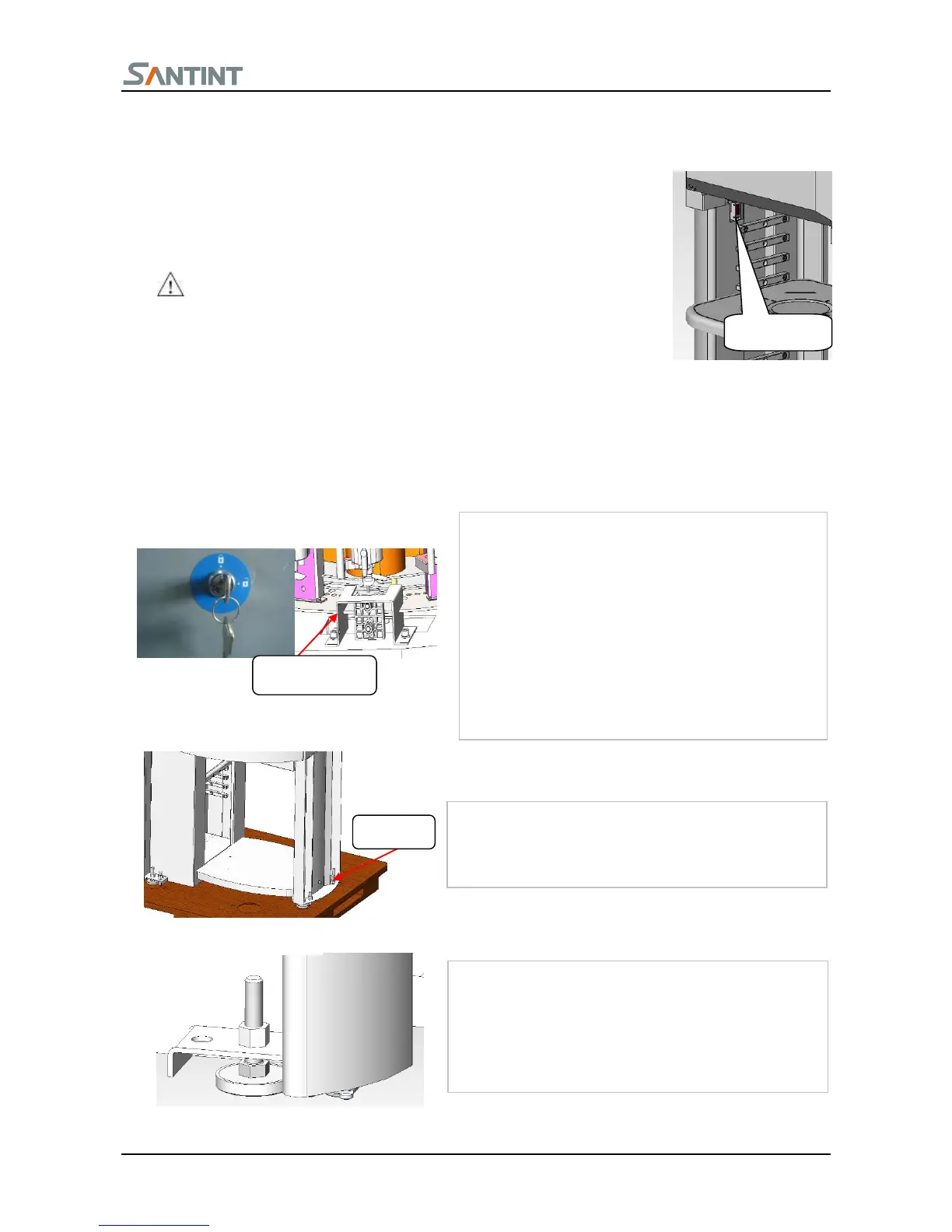

Fig 5.1.3
Fig 5.1.1
Fixing Plate
Fig 5.1.2
M12Bolt
photosensor
