Santint M3 - Replacement of Piston and Canister

Santint
M3 Manual Dispenser V1.0 9
f Add some cleaner into the canister;
g Set the Black gauge to its maximum scale;
h Put a container right below the nozzle and then operate as dispensing procedures；
i Set the Red gauge to its maximum scale, then operate as dispensing procedures；
j Repeat step g-i until the canister is clean (the cleaner can be used for 1-3 times. Yet fresh cleaner is
required for the final cleaning);
k Leave the canister to dry out before re-filling new colorant.
6.5 Replacement
A Replace Sniff-Back Piston
Remove the nozzle (see above-mentioned method), rotate the valve handle to its maximum travel.
Pull out the broken sniff-back piston. Install a new sniff-back piston with small O-ring. Reinstall the
nozzle and release the valve handle.
Notes：make the groove of the piston facing the bulged part of the valve handle.
B Replace the canister
a．Loose the three fixing screws of the canisters and rotate the canisters clockwise to remove them
from the turntable.

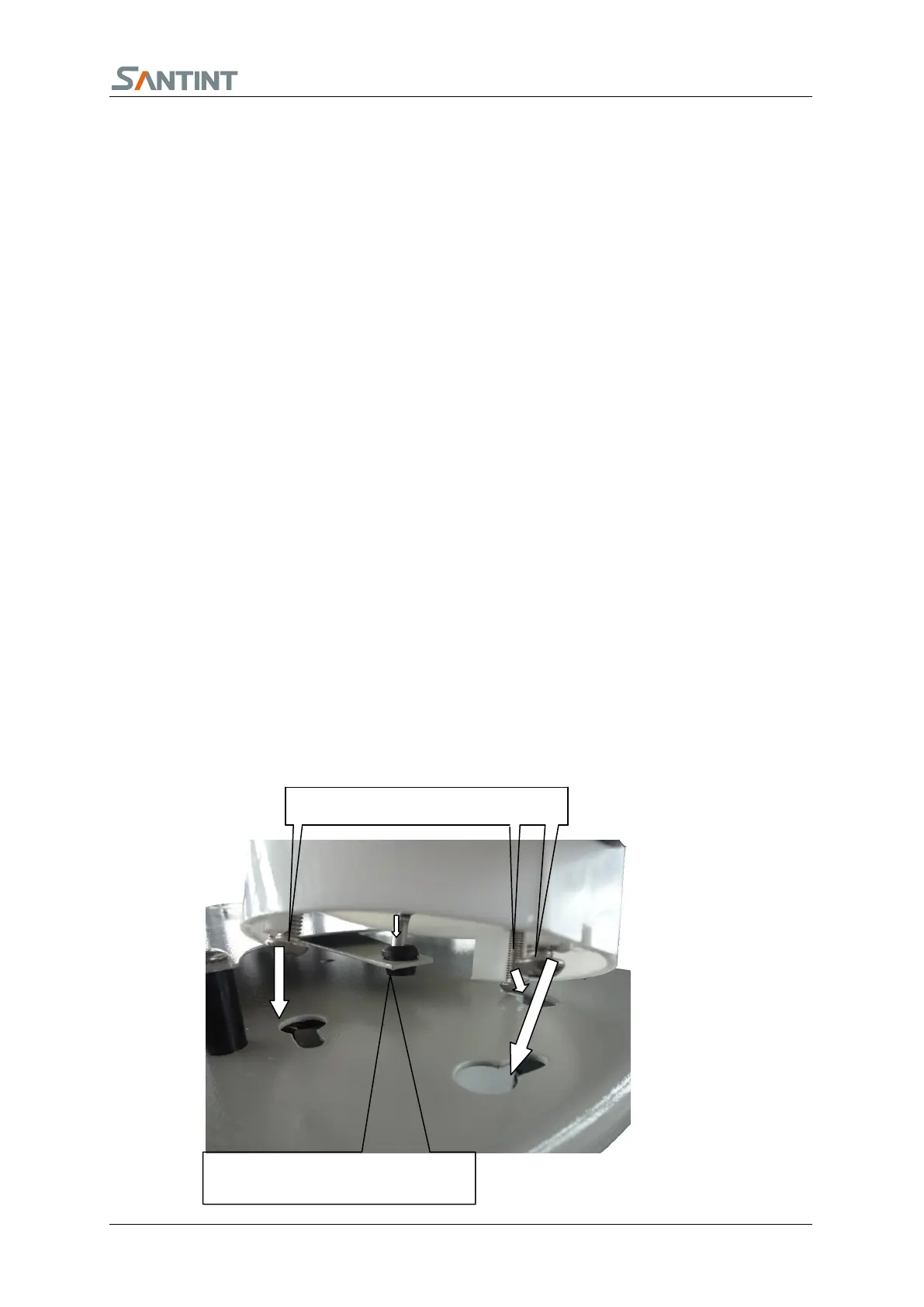

b．While installing new canister, place the three screws at the bottom of the canister into the bigger
ends of the three cone-shaped holes in the turntable.
A
Put the screw into the big hole
Notice
Insert paddle shaft into the
drive hole.
