4
WARNING: IF WATER FLOWS FROM THE PRESSURE RELIEF VALVE
OR TEMPERATURE / PRESSURE RELIEF VALVE (IF FITTED) THE
ELECTRICITY SUPPLY MUST BE SWITCHED OFF IMMEDIATELY.
CONTACT THE SANTON SERVICE TEAM (TEL: (0844) 8711530 OR AN
APPROVED INSTALLER.

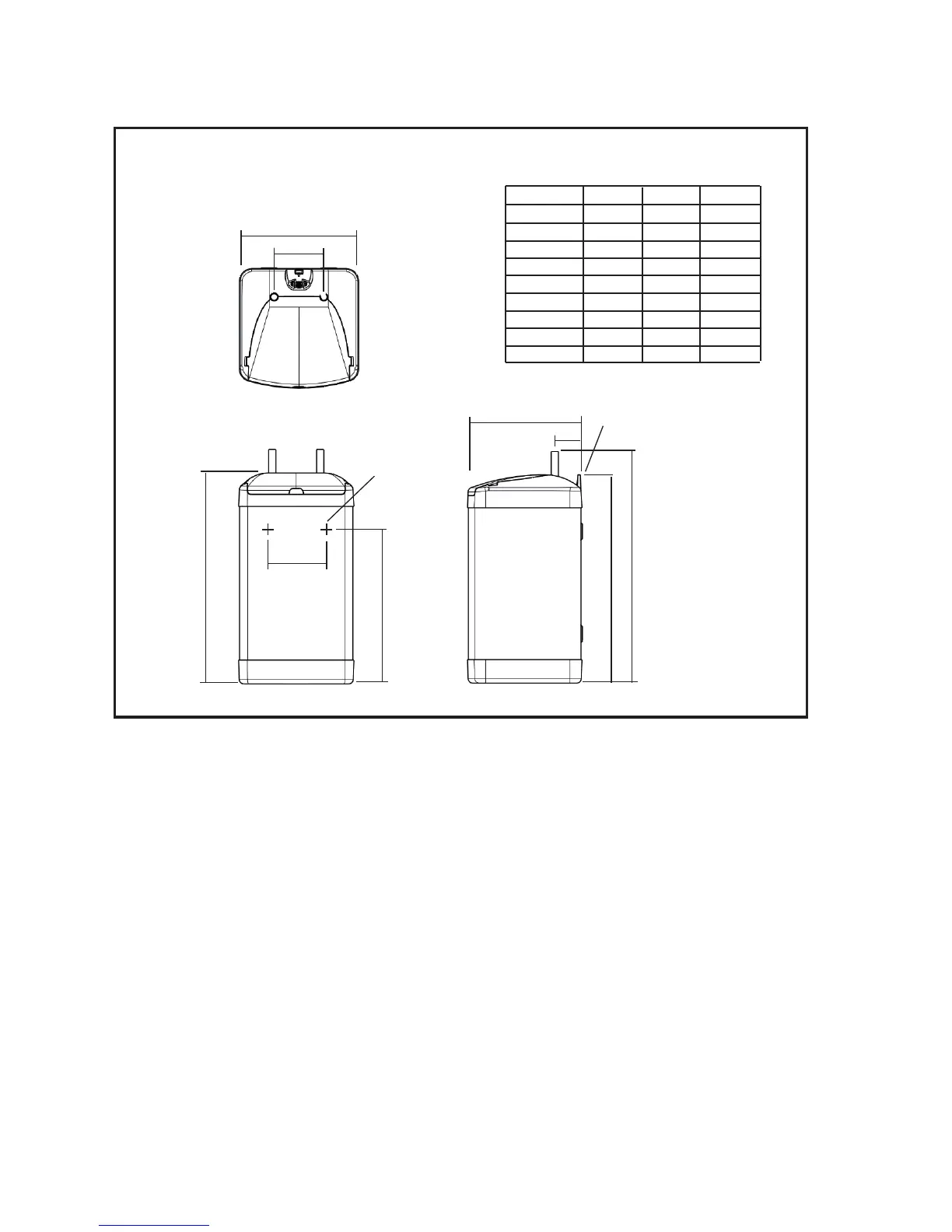

DIMENSION 7 LITRE 10 LITRE 15 LITRE
A 356mm 442mm 417mm
D 406mm 492mm 467mm
B 251mm 337mm 312mm
C 349mm 435mm 410mm
E 240mm 240mm 330mm
F 100mm 100mm 100mm
G 120mm 120mm 170mm
H 240mm 240mm 330mm
I 57mm 57mm 102mm
FIGURE 01: DIMENSIONS
E
G
I
H
F
A
B
C D
2 KEYHOLE
FIXING SLOTS
6mm WIDE
FIXING HOLE
