Santon AH15/2.2 - Setting the Water Temperature

9
3.7 SETTING THE TEMPERATURE
3.7.1 The temperature should be set during installation by the installer.
3.7.2 The temperature can be set between the minimum setting (10°C) indicated
by a ‘1’ and the maximum setting (70°C) indicated by a ‘5’ by rotating the
dial on the thermostat.
3.7.3 It is recommended that the temperature is set above 60°C.
ELEM ENT
NEON
RESET BUTTON
EA RTH
POST
(STAT/CUT-OUT
PLUGS DIRECTLY
ONTO ELEMENT
TERMINATIONS).
DOUBLE POLE
ISOLATING SWITCH
BROWN
BLUE
GREEN/ YELLOW
MAINS
SUPPLY
L
N

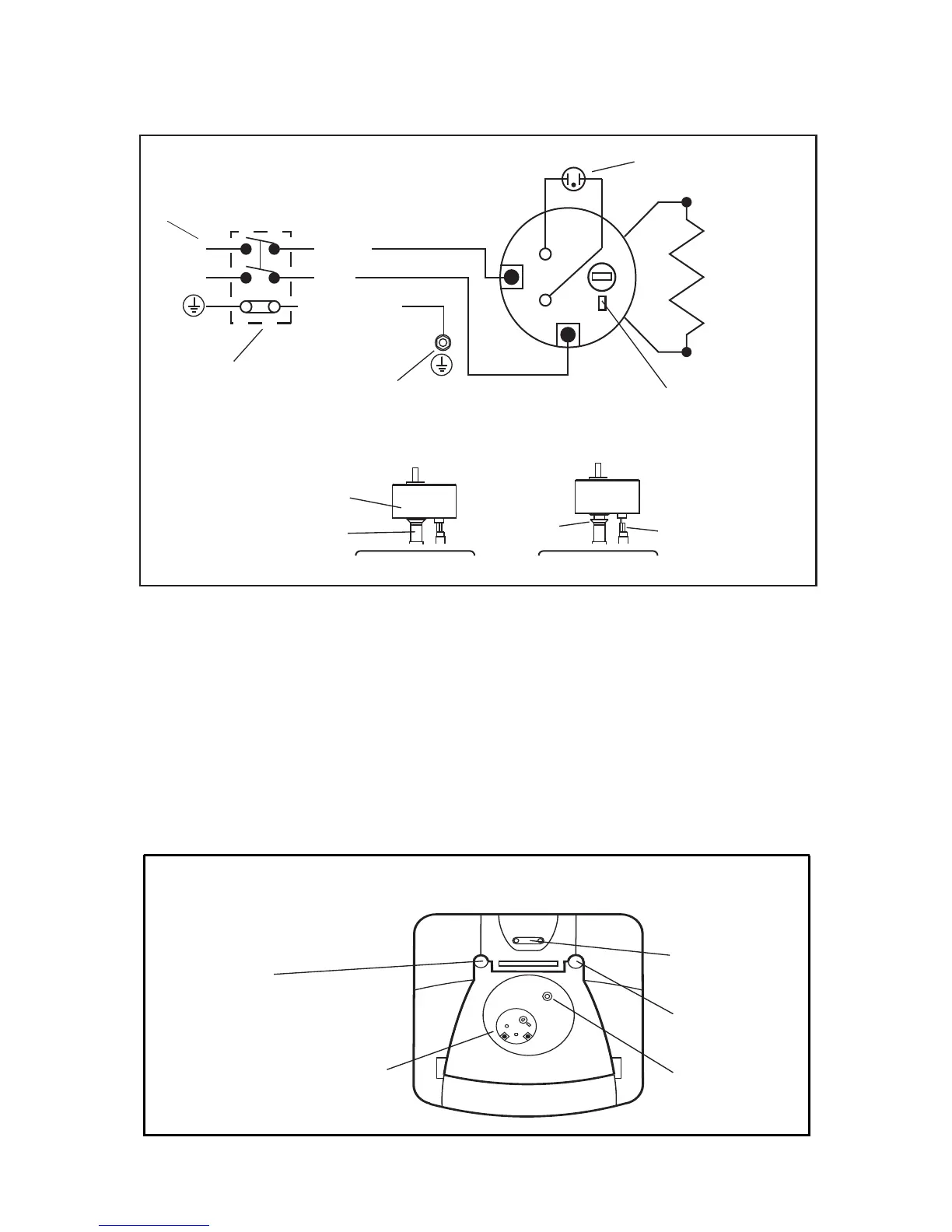

FIGURE 06 : WIRING DIAGRAM.
IMPORTANT: THE COMBINED THERMOSTAT/ CUT-OUT MUST BE PUSHED FULLY
HOME TO ENSURE CORRECT OPERATION OF THE CUT-OUT
CO M BI NED
THERMOSTAT
& CUT-OUT
THERMOSTAT
PO CKET
ELEM EN T
TERM I NA L S
FLARED EN D OF
THERMOSTAT
PO CKET
CORRECT I N CORRECT
INLET
OUTLET
CABLE CLAMP
EARTH POST
COMBINED THERMOSTAT
AND THERMAL CUT-OUT
FIGURE 7: CORRECT ORIENTATION OF ELEMENT PLATE ( VIEWED FROM TOP OF UNIT ).
