SANUS VuePoint FLF424KIT - Supplied Parts and Hardware

4

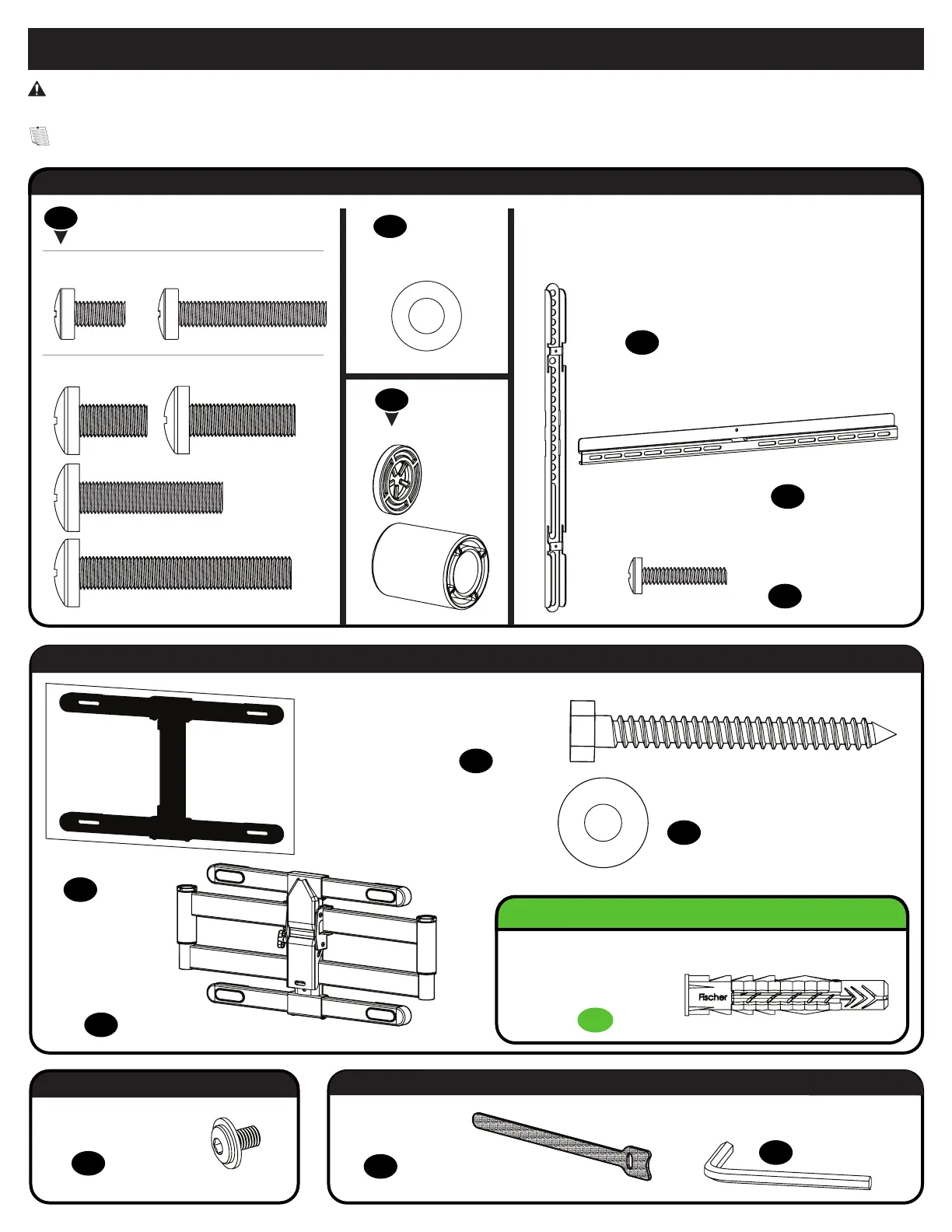

Supplied Parts and Hardware
WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and
undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts!
NOTE: Not all hardware included will be used.
STEP 1 Parts and Hardware
TV Bracket Horizontal
TV Interface Screw
TV Bracket Vertical
TV Screws
(qty. 4 each) [Only one size fits your TV]
Washer
(qty. 4)
Spacers
(qty. 4 each)
[If needed]
02
03
01
M6
M8
(qty. 2)
05
(qty. 4)
06
(qty. 2)
04
M6 x 12mmM6 x 35mm
M5 x 8mm
M8 x 35mm
2.5mm
M6 / M8
M4 x 20mm
22mm
M8 x 25mm
M8 x 50mm
5/16 in.
M8 x 16mm
5/16 x 2¾ in.
Fischer UX10 x 60R Anchor
STEP 3 Hardware
(qty. 1)
07
(qty. 1)
08
(qty. 4)
09
(qty. 4)
10
(qty. 4)
(qty. 1)
11
Locking Screw
Lag Screw
Washer
Drilling Template
Arm Assembly
Additional Hardware
(qty. 4)
12
(qty. 1)
13
Cable Tie
Hex Key
M4
STEP 2 Parts and Hardware
STEP 2B: Concrete Anchor Kit CMK1 [NOT INCLUDED]
Contact Customer Service at 888-333-9952 to inquire about the CMK1
Concrete Anchor Kit.
Concrete Anchor
C1
M6 x 12mmM6 x 35mm
M5 x 8mm
M8 x 35mm
2.5mm
M6 / M8
M4 x 20mm
22mm
M8 x 25mm
M8 x 50mm
5/16 in.
M8 x 16mm
5/16 x 2¾ in.
Fischer UX10 x 60R Anchor
