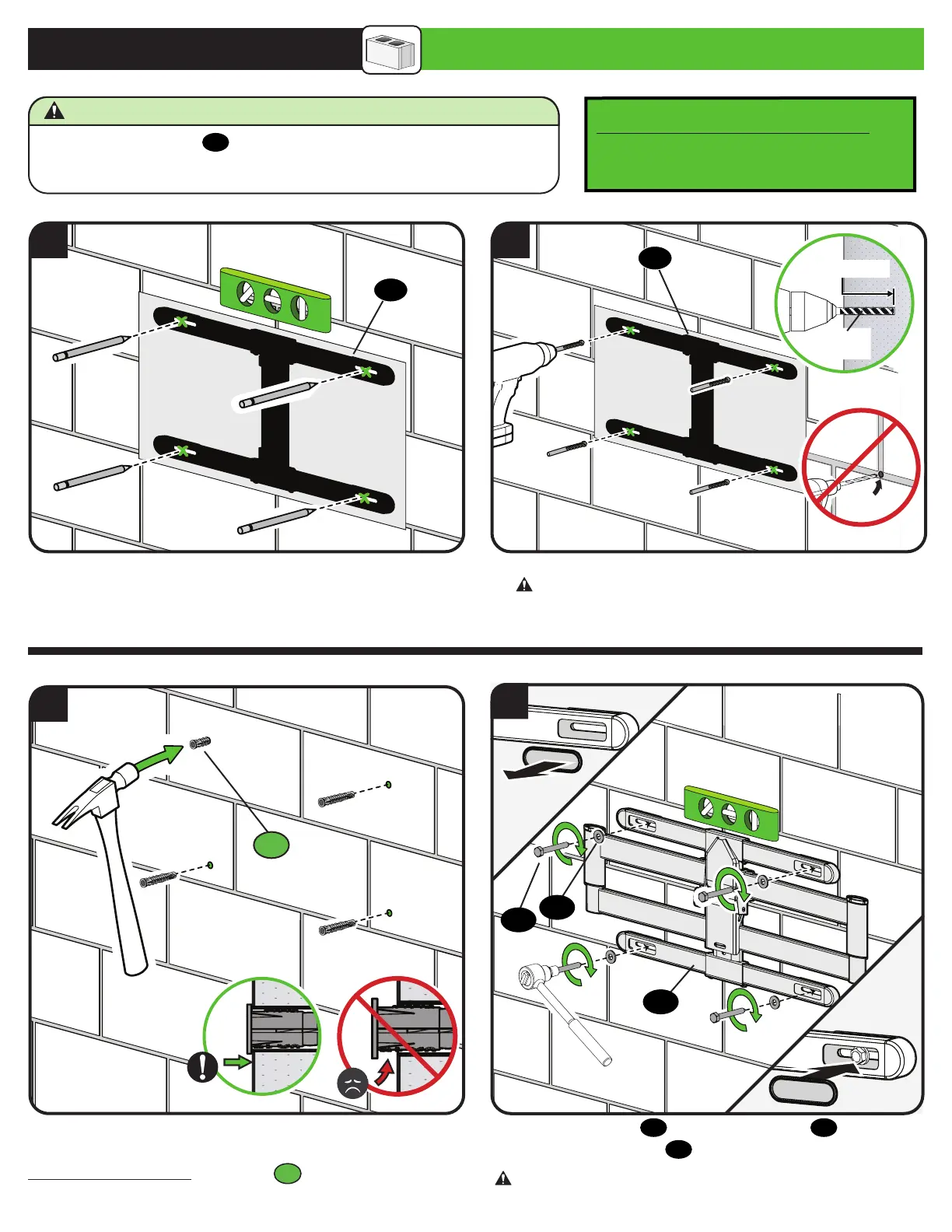

SANUS VuePoint FLF424KIT - Solid Concrete or Concrete Block Installation

8
CAUTION: Avoid potential personal injury or property damage!
● Mount arm assembly
08
directly onto concrete surface (no wall covering)
● Minimum solid concrete thickness: 8 in. (203 mm)
● Minimum concrete block size: 8 x 8 x 16 in. (203 x 203 x 406 mm)
Solid Concrete or Concrete Block Installation
STEP 2B Attach Wall Plate
CAUTION: Never drill into the mortar between blocks.
Tighten the lag screws
09
only until the washers
10
are pulled
snug against the wall plate
08
.
CAUTION: Improper use could reduce the holding power of
the lag screw. DO NOT over-tighten the lag screws.
Concrete Anchor Kit CMK1 is not included
Contact Customer Service at 888-333-9952 to inquire about
the CMK1 Concrete Anchor Kit.
21
002862.eps
3/8 in.
(10 mm)
3 in. (76 mm)
3
C1
*
Contact Customer Service at 888-333-9952 to inquire about
Concrete Anchor Kit CMK1 and anchors
C1
.
07
07
4
08
09
10
