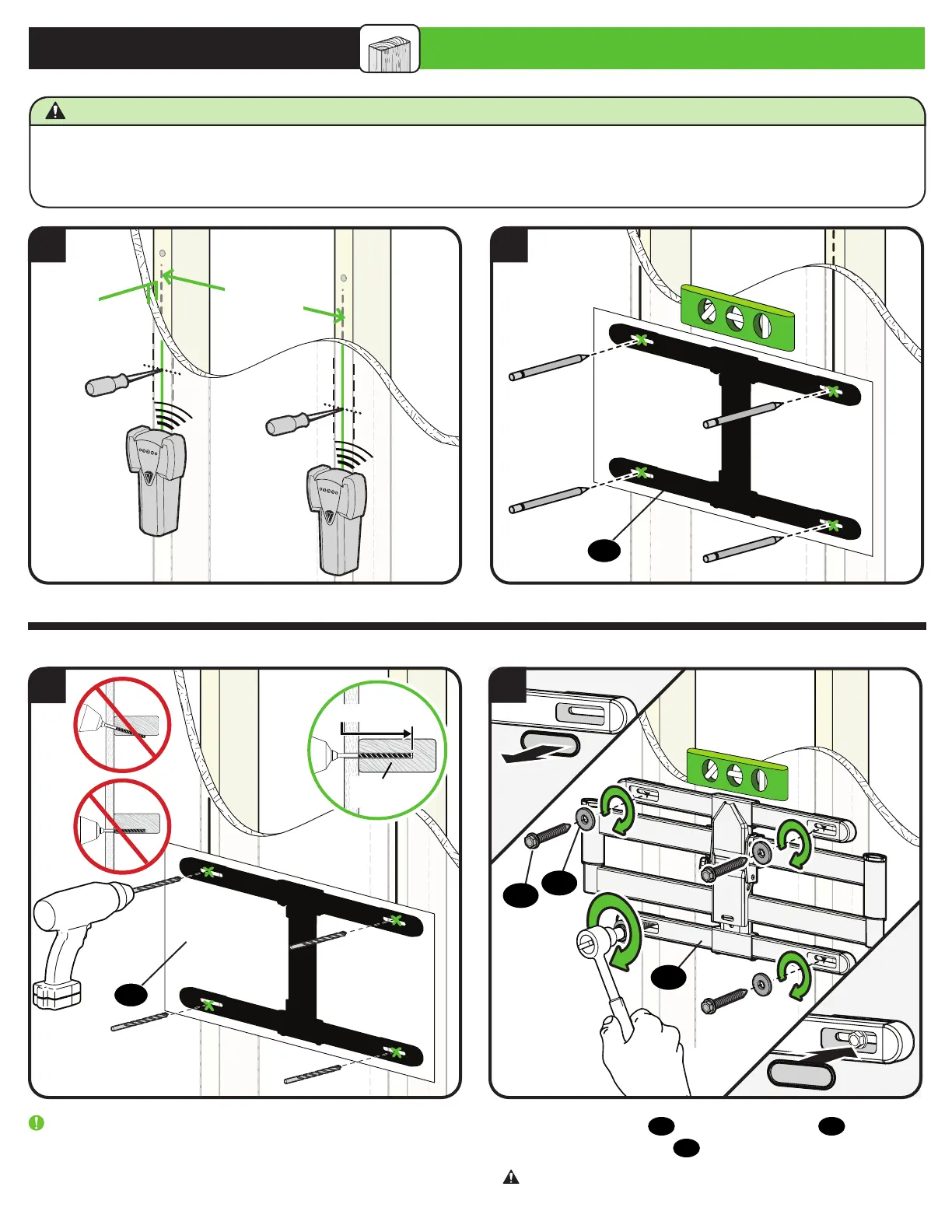

STEP 2A Attach Wall Plate
Wood Stud Installation
IMPORTANT: Drill into the center of the stud.
CAUTION: Avoid potential personal injury or property damage!
● Drywall covering the wall must not exceed 5/8 in. (16 mm)
● Minimum wood stud size: nominal 2 x 4 in. (51 x 102 mm) actual 1½ x 3½ in. (38 x 89 mm)
● Minimum horizontal space between lag screws: 16 in. (406 mm)
● Stud center must be verified
Tighten the lag screws
09
only until the washers
10
are pulled
snug against the wall plate
08
.
CAUTION: Improper use could reduce the holding power of
the lag screw. DO NOT over-tighten the lag screws.
1 2
≤ 5/8 in.
(16 mm)
16 in.
(406 mm)
3
4
2 ¾ in. (70 mm)
7/32 in.
(5.5 mm)
07
08
09
10
07
