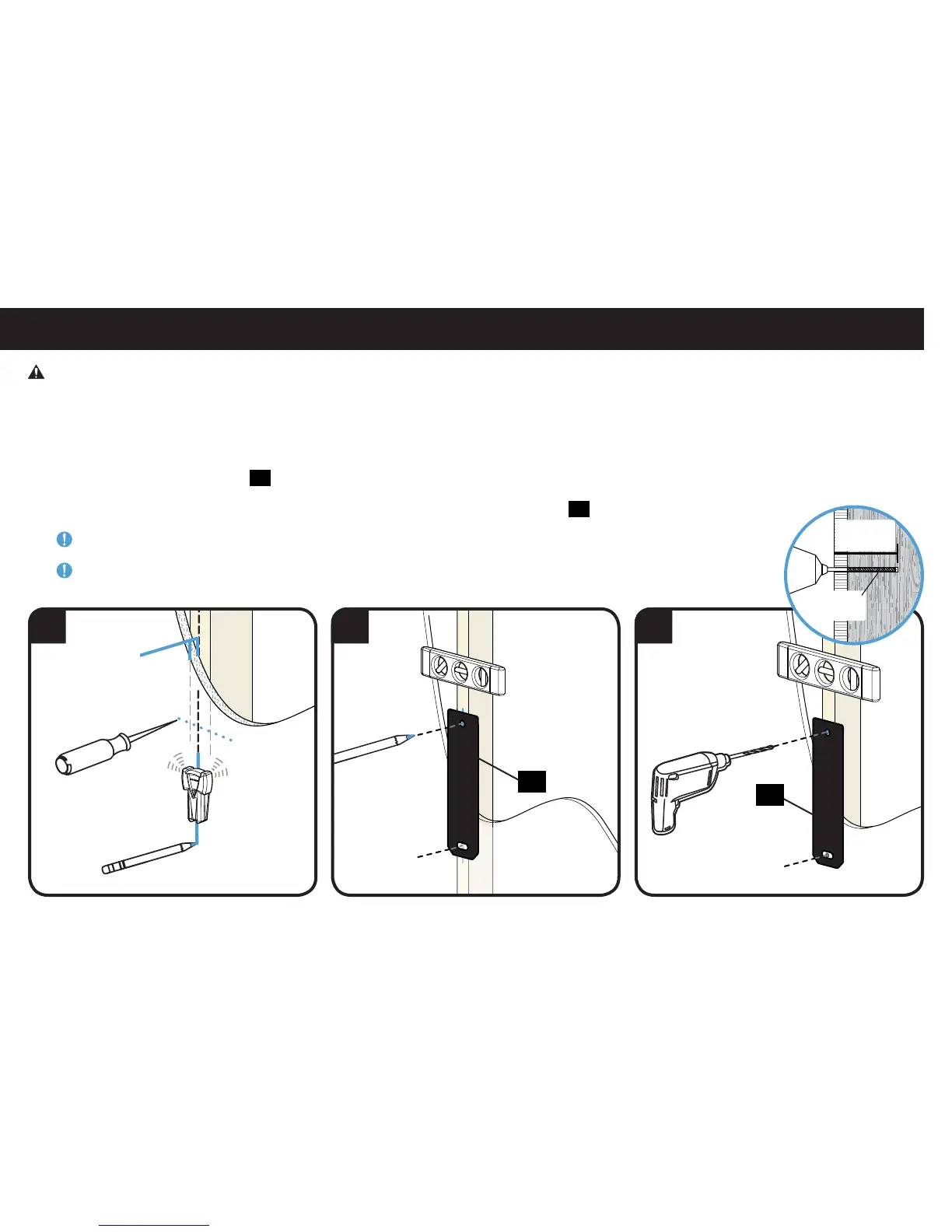

Sanus F11C - STEP 2 A Attach Wall Plate - Wood Stud; Locate Stud and Drill Pilot Holes

10
CAUTION: Avoid potential personal injuries and property damage!
● Drywall covering the wall must not exceed 5/8 in. (16 mm)
● Minimum wood stud size: common 2 x 4 in. (51 x 102 mm) nominal 1½ x 3½ in. (38 x 89 mm)
1. Locate your stud. Verify and mark the center of the stud by finding the stud edges using an awl, a thin nail, or an edge to edge stud finder.
2. Position the wall plate template
14
at your desired height and line up the holes with your stud center line. Level the template and tape in place.
3. Drill pilot holes using a 1/8 in. (3 mm) diameter drill bit. Remove wall plate template
14
.
IMPORTANT: Be sure to drill into the center of the stud.
IMPORTANT: Pilot holes must be drilled to a depth of 2½ in. (63.5 mm).
STEP 2A Attach Wall Plate - Wood Stud
2 3
2½ in.
(63.5 mm)
1/8 in.
(3 mm)
14
14
≤ 5/8 in.
(16 mm)
1
