Spacer, long screw and washer
Short screw and washer

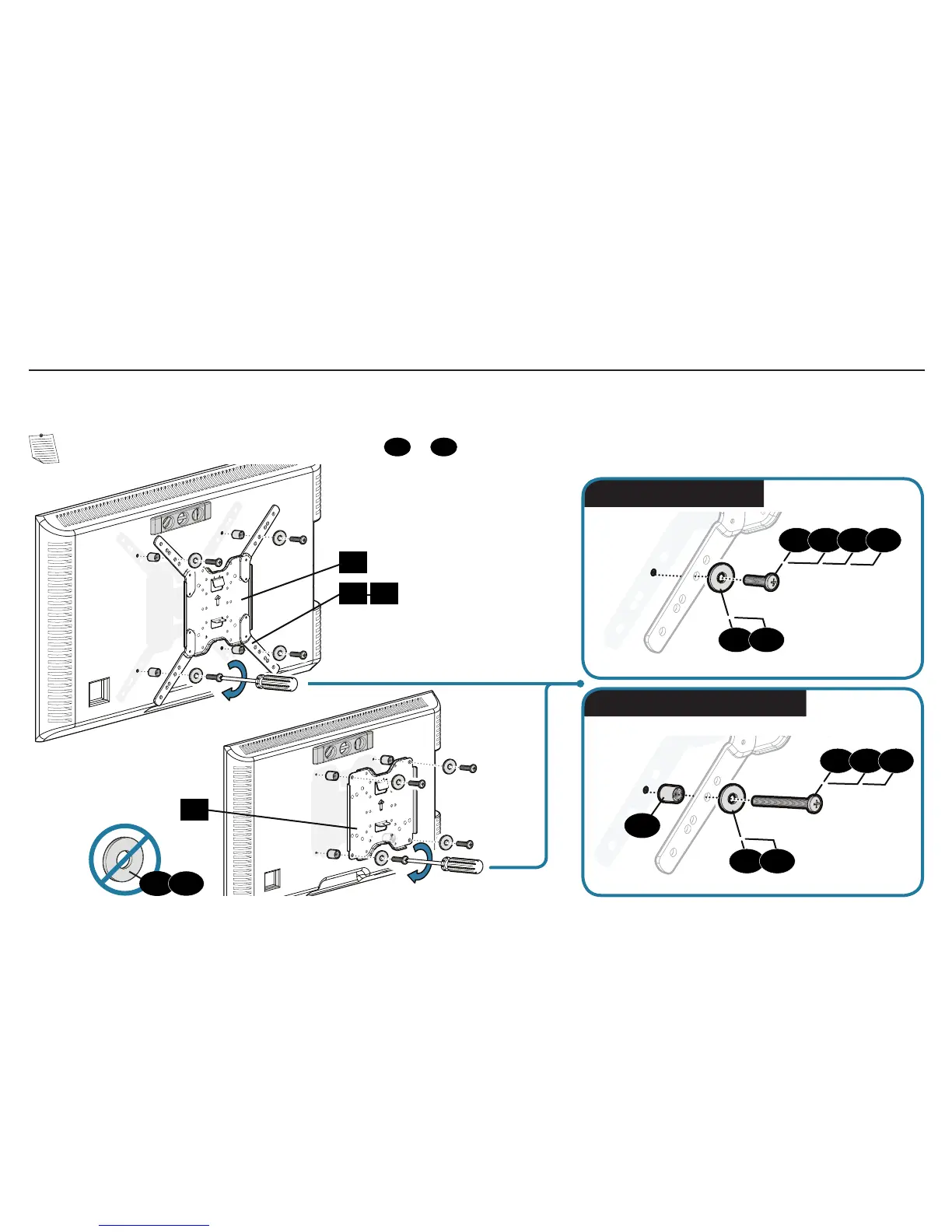

1-5 Attach TV Bracket
Position your TV bracket configuration
over your TV hole pattern - making sure the brackets are vertically centered and level.
Install using either the short screw and washer or spacer, long screw and washer combination you selected for your TV.
NOTE: 75 x 75 mm hole patterns do not use washers
12
or
13
, only use screws (and spacers if needed).
01
14
02 03
01
TV Bracket
Confi guration A
Illustrated
TV Bracket
Confi guration B
Illustrated
12
13
09
05
10
06
11
07 08
12
12
13
13
75 x 75 mm
hole patterns
do not use
washers
To Next Page
