STEP 2 Attach Wall Plate
Solid Concrete or Concrete Block Option
10 mm
(3/8 in.)
75 mm
(3 in.)
NOTE: For assistance in
determining wall plate location,
try our MountWizard
™
at
Simplicity.Sanus.com
CAUTION: Avoid potential personal injuries and property damage!
● Mount the wall plate directly onto the concrete surface
● Minimum solid concrete thickness: 203 mm (8 in.)
● Minimum concrete block size: 203 x 203 x 406 mm (8 x 8 x 16 in.)

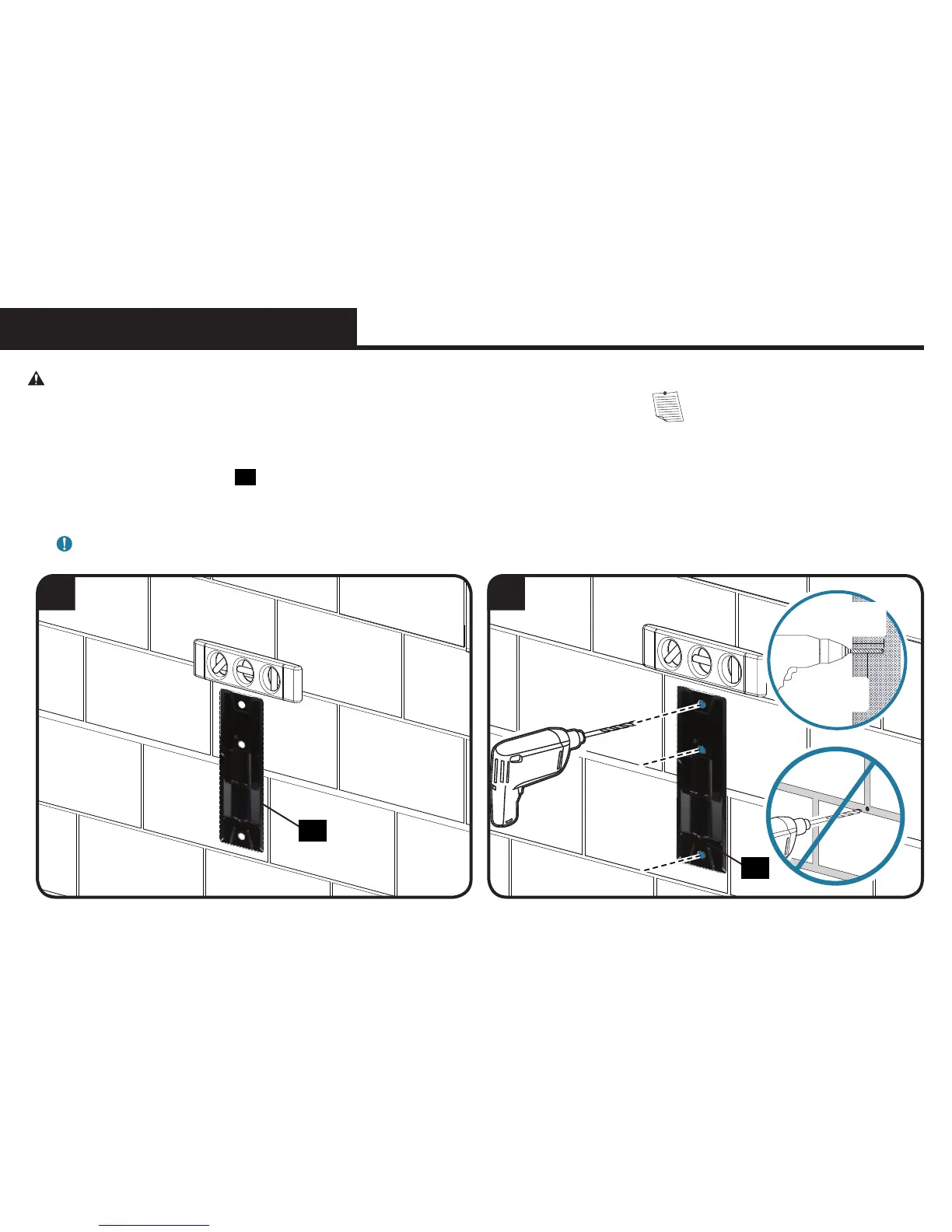

1. Level the wall plate template
15
and tape in place.
2. Drill pilot holes into solid concrete. Never drill into the mortar between blocks.
IMPORTANT: Pilot holes must be drilled to a depth of 75 mm (3 in.), using a 10 mm (3/8 in.) diameter drill bit.
