Sanus Simplicity SMF3 - Step 2: Attach Wall Plate; Wood Stud Wall Mounting

12
CAUTION: Avoid potential personal injuries and property damage!
● Drywall covering the wall must not exceed 16 mm (5/8 in.)
● Minimum wood stud size: common 51 x 102 mm (2 x 4 in.) nominal 38 x 89 mm (1 1/2 x 3 1/2 in.)

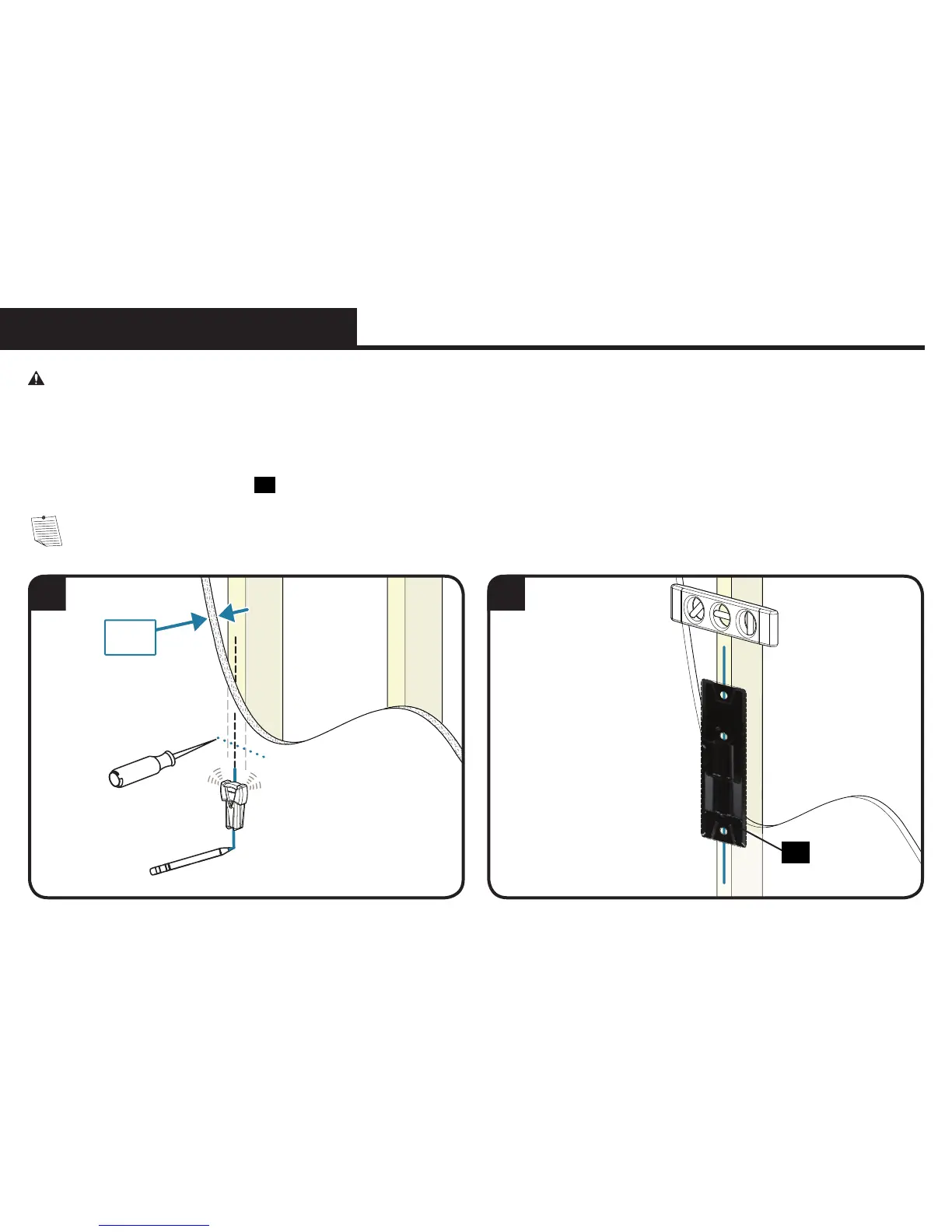

1. Locate your stud. Verify and mark the center of the stud by finding the stud edges using an awl, a thin nail, or an edge to edge stud finder.
2. Position the wall plate template
15
so the holes line up with your stud center line, level the template and tape in place.
STEP 2 Attach Wall Plate
Wood Stud Option
NOTE: For assistance in determining wall plate location, try our MountWizard
™
at Simplicity.Sanus.com
1 2
≤16 mm
(5/8 in.)
15
