Sanus SLT4 - Step 2 C: Steel Stud Installation (Continued); Position Wall Plate Template; Drill Pilot Holes

16
1 in. (2.54 cm)
1/2 in.
(13 mm)
06
06
4X

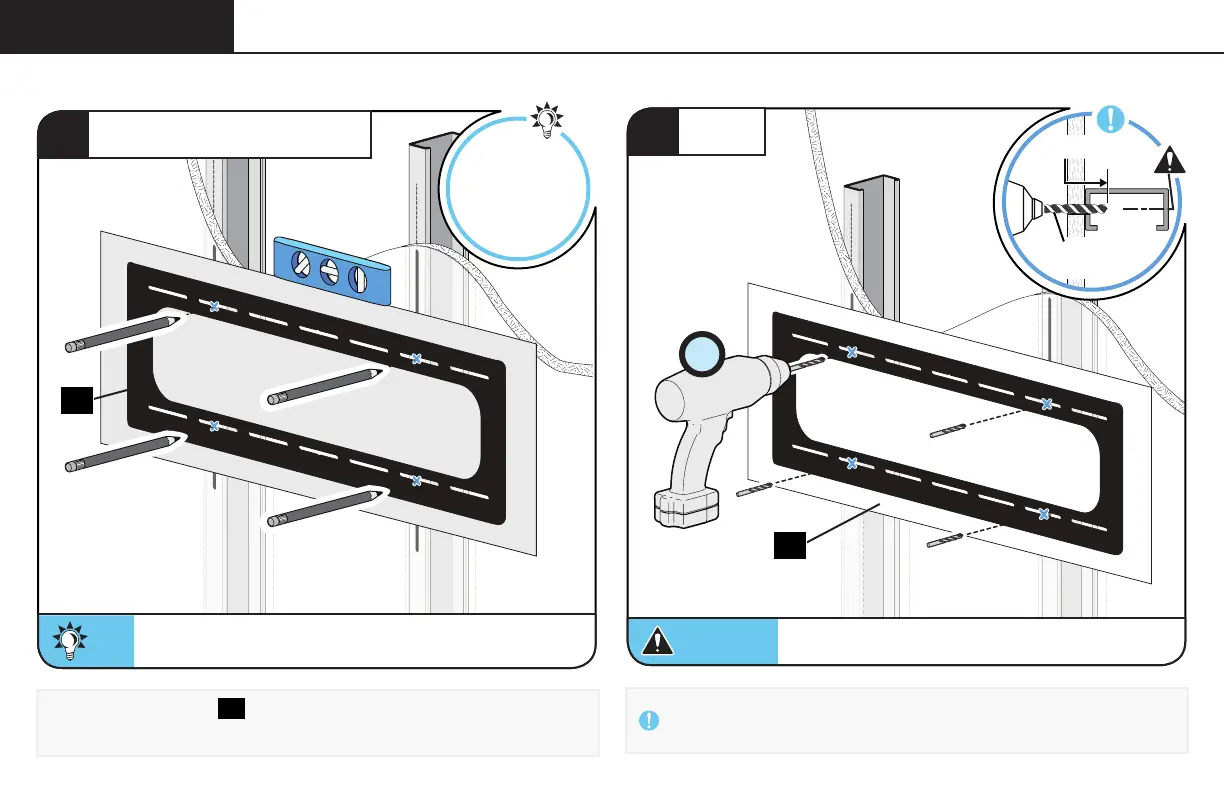

Place the wall plate template
06
at your desired height and position the slotted holes over
your stud center lines. Level and mark the hole locations.
4
POSITION TEMPLATE
TIP:
To calculate your precise wall plate location, check out our
HeightFinder at sanus.com [www.san.us/1173].
www.
san.us/1173
HeightFinder™
Visit
Drill the four pilot holes using a 1/2 in. (13 mm) diameter drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 1 in. (2.54 cm).
Remove the wall plate template and discard.
5
DRILL
CAUTION:
Be sure you drill into the CENTER of the stud.
STEP 2C (continued)
