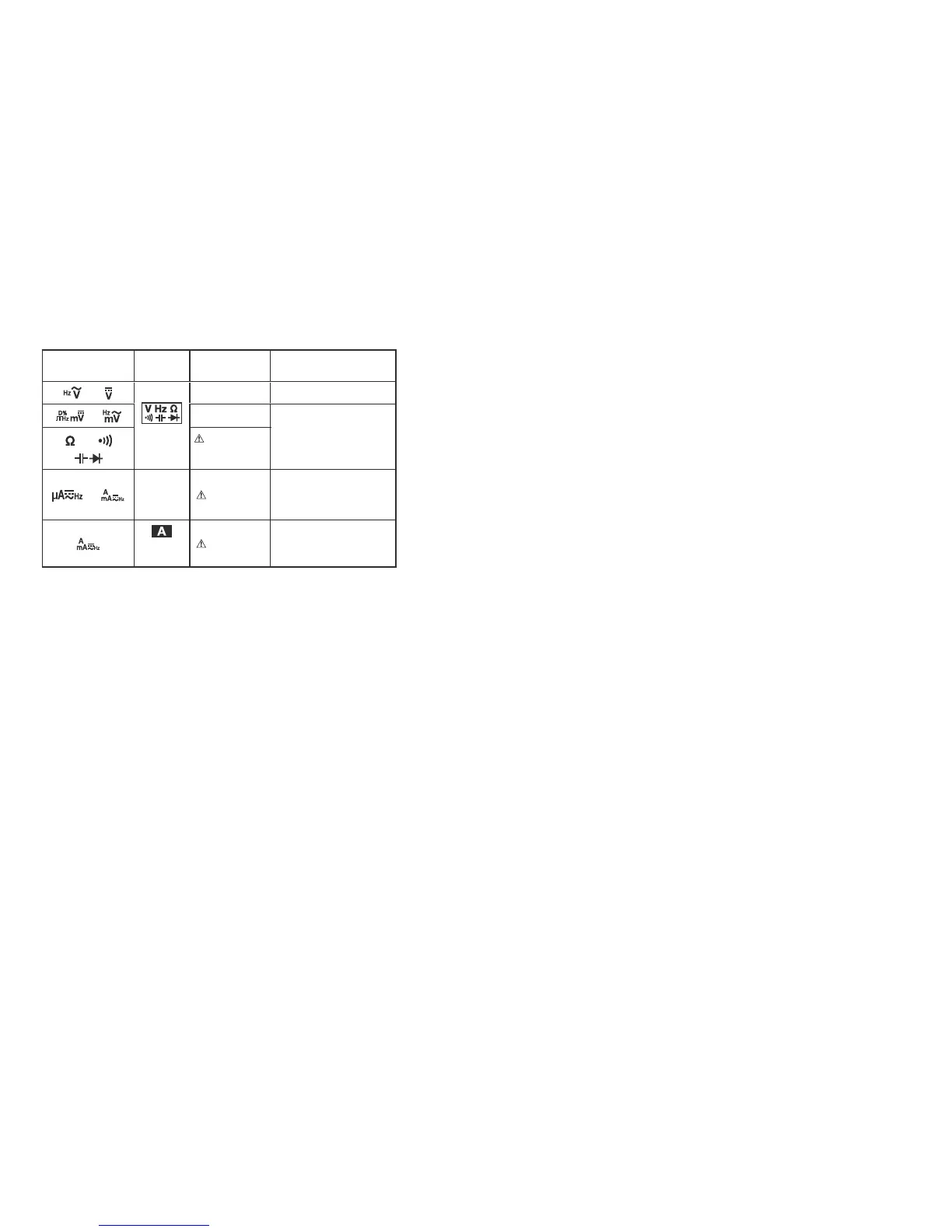

1-3 Overload Protection
Function
Measuring
terminal
Max.Rated Input Overload Protection
「 」,「 」
and
COM
1000V dc/ac 1050V rms, 1450V peak
「 」,「 」
10V dc/ac
600Vrms
「 」,「 」
「 」
Do not apply
any voltage or
current.
「 」,「 」
mAµ A
and
COM
600mA dc/ac
Do not apply
any voltage.
0.63A/500V Fuse
Breaking capacity: 50kA
「 」
and
COM
10A dc/ac
Do not apply
any voltage.
12.5A/500V Fuse
Breaking capacity: 20kA
[2]APPLICATIONS AND FEATURES
2-1 Applications
This instrument is a portable digital multimeter designed to
measure light electric circuits. The instrument offers not only
measurements for small communication equipments, home
electric appliances, output from a wall socket, and many batteries,
also circuit analyses with additional functions.
2-2 Features
• Compliant with IEC61010-1 CAT.
Ⅲ
600V, CAT.
Ⅱ
1000V, and safe
design using fuses with large number of breaking capacity.
• 9999 count display (ACV, DCV, Hz)
• Fast response display
(Numeric parts: 5 times/Sec. Bar graph part: 60 times/Sec.)
• Dual Display shows "Voltage or Current and its Frequency", and
"AC components and DC components of Voltage or Current"
• Maximum DC/AC voltage measurement resolution: 0.01 mV
• Frequency (Sensitivity selectable),
Wide capacitance range (0.01nF to 25.00mF)
• Relative mode with auto ranging
• PCLink7 (separately available software) allows you to download
logged data into your PC with USB optical communication unit
(KB-USB7)
