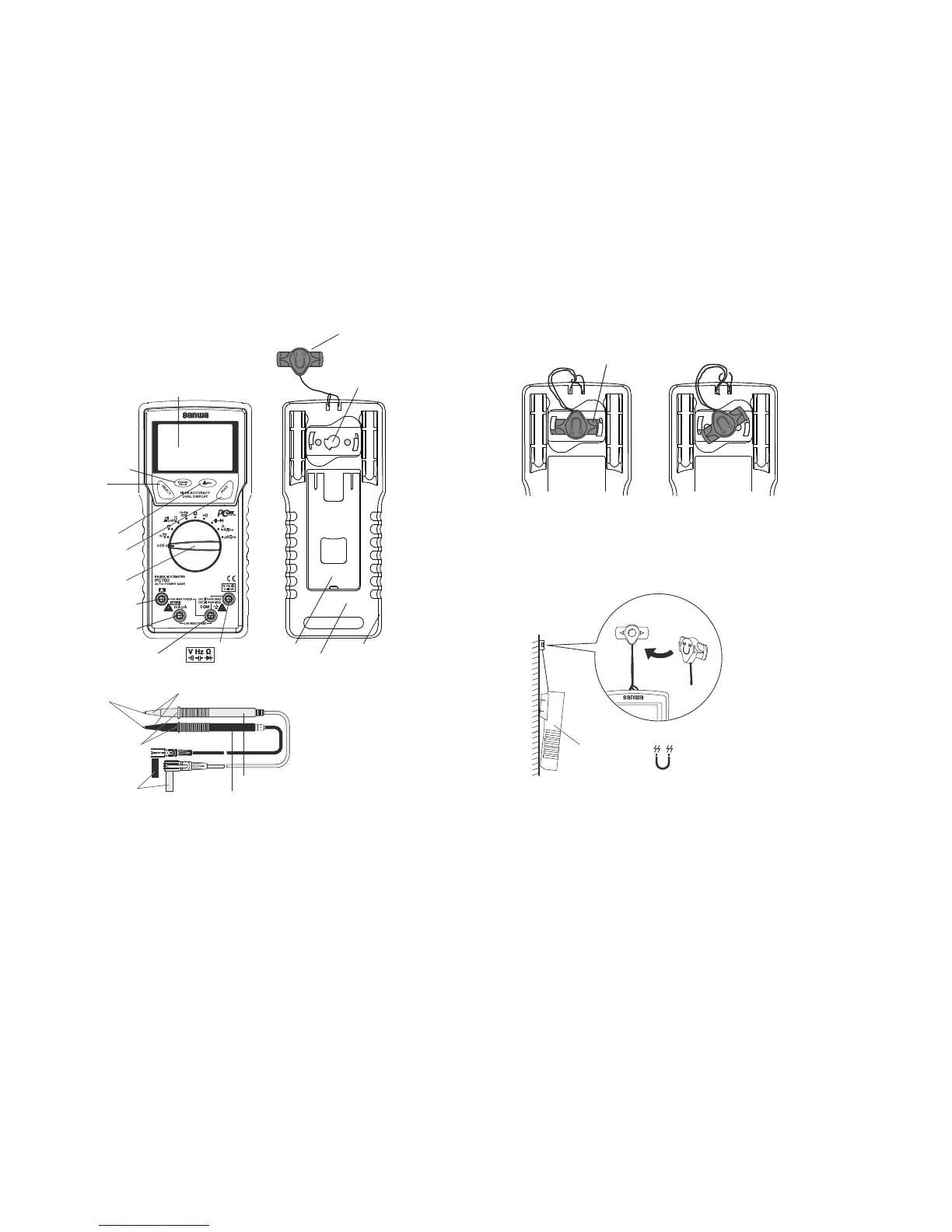

Sanwa PC700 - Digital Multimeter Parts Identification; Multimeter and Test Leads

LCD display
Range hold button
Select button
Relative button
Data hold button
Power/
Function selector
Measuring terminal
for A
Measuring terminal
for mAµA
Common terminal
Measuring
terminal
Light shielding magnet cap
Optical
communication
unit connector
Stand
Battery door
Holster
Finger guards
Plugs
Test probe (red)
Test probe (black)
Test leads TL-23a
3
Detachable test pin covers
Test pins
⇒
↑
↓
Light shielding magnet cap
M
a
g
n
e
t
i
c
a
l
l
y
a
t
t
r
a
c
t
a
b
l
e
m
a
t
e
r
i
a
l
w
a
l
l
(
e
.
g
.
s
t
e
e
l
)
DMM body
Attach the light shielding magnet cap
with side touched to the wall.
― 6 ―― 5 ―
[3] Parts Identification
3-1 Multimeter and Test Leads
With the detachable test pin covers: CAT. III 600V
Without the detachable test pin covers: CAT. II 1000V
How to detach the light shielding magnet cap
Turn the light shielding magnet cap counterclockwise to detach.
An application of the light shielding magnet cap
Note:
Keep the light shielding magnet cap away from cellular phones,
analog watches, floppy disks, magnetic cards, magnetic tapes, and
magnetic tickets. Otherwise, the memorized information may be lost.
