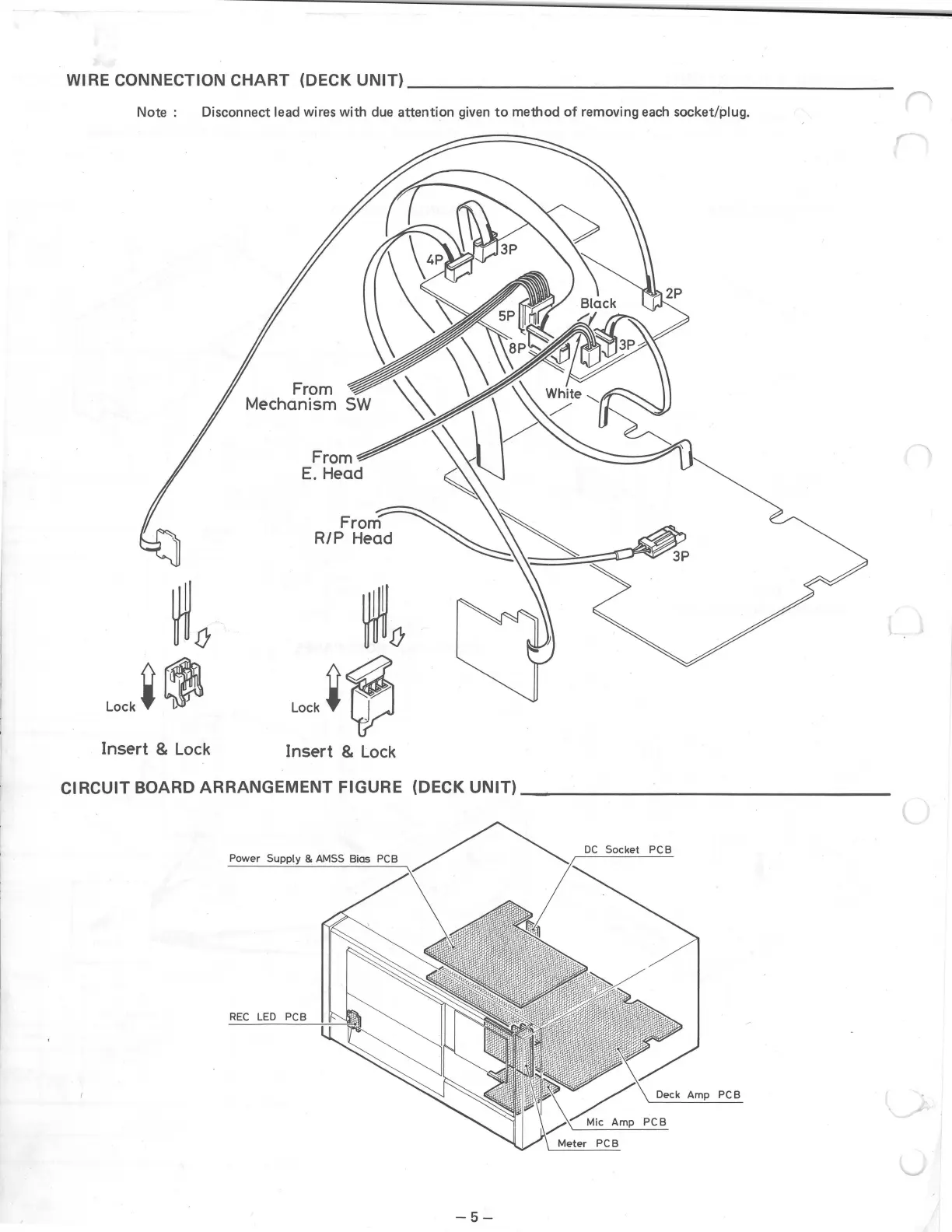

WIRE CONNECTION CHART (DECK UNIT) ___________________ _
Note : Disconnect lead wires with due attention given to method of removing each socket/plug.
Insert & Lock
Insert & Lock
Cl RCUIT BOARD ARRANGEMENT FIGURE (DECK UNIT) _______________ _
Power Supply & AMSS Bias PCB
REC LED PCB
-5-
DC Socket PCB
eek Amp PCB
Mic Amp PCB
