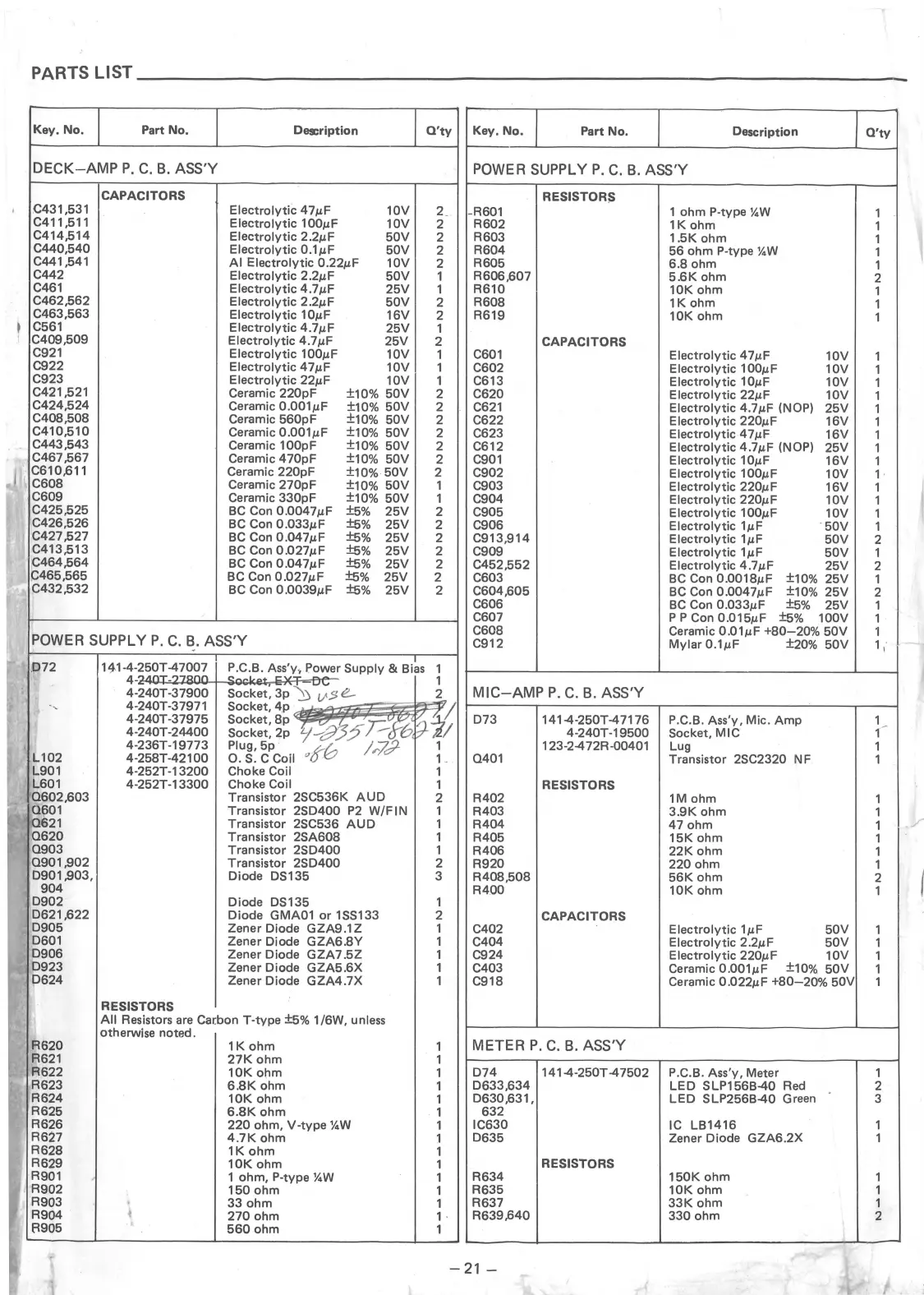

Sanyo C4 - Power Supply P. C. B. Assy

PARTS LIST _______________________________ _
---
Key. No. Part No.
Des:ription O'ty
DECK-AMP P. C. B. ASS'Y
CAPACITORS
'
C431,531
Electrolytic 47µF
10V
2_
C411,511
Electrolytic 100µF
10V
2
C414,514
Electrolytic 2.2µF
50V
2
C440,540
Electrolytic 0.1µF
50V
2
C441,541
Al Electrolytic 0.22µF
10V
2
C442
Electrolytic 2.2µF
50V
1
C461
Electrolytic 4.7µF
25V
1
C462,562
Electrolytic 2.2µF
50V
2
C463,563
Electrolytic 1 OµF
16V
2
'
C561
Electrolytic 4.7µF
25V
1
C409,509
Electrolytic 4.7µF
25V
2
C921
Electrolytic 100µF
10V
1
C922
Electrolytic 47µF
10V
1
C923
Electrolytic 22µF
10V
1
C421,521
Ceramic 220pF
±10% 50V
2
C424,524
Ceramic 0.001µF
±10% 50V
2
C408,508
Ceramic 560pF
±10% 50V
2
C410,510
Ceramic 0.001µF
±10% 50V
2
C443,543
Ceramic 100pF
±10% 50V
2
C467,567
Ceramic 470pF
±10% 50V
2
I I
C610,611
Ceramic 220pF
±10% 50V
2
C608
Ceramic 270pF
±10% 50V 1
C609
Ceramic 330pF
±10% 50V
1
C425,525
BC Con 0.0047µF
±5% 25V
2
C426,526
BC Con 0.033µF
±5%
25V
2
C427,527
BC Con 0.047µF
±5%
25V
2
C413,513
BC Con 0.027µF
±5% 25V
2
C464,564
BC Con 0.047µF
±5% 25V
2
C465,565
BC Con 0.027µF
±5% 25V
2
C432,532
BC Con 0.0039µF
±5% 25V 2
POWER SUPPLY P. C. B. ASS'Y
-
,D72
141-4-250T-47007
I
P.C.B. Ass'y, Power Supply & Bias
1
4-".llnT_-,~nnn
,,.. r-- ·- -
1
4-240T-37900
Socket, 3p ~ -v.S e.-
2_
~
4-240T-37971
Socket, 4p
7,
~1/
4-240T-37975
Socket, Sp t ~ T-~'6
~ '/
4-240T-24400
Socket, 2p 1/ _;,_c7.5 5 .---
4-236T-19773
Plug, 5p ,fib /r7c?
1
L102
4-258T-42100
0. S. C Coil " 1-
L901 4-252T-13200 Choke Coil
1
L601
4-252T-13300 Choke Coil
1
Q602,603 Transistor 2SC536K AUD
2
;,.~
0601
Transistor 2SD400 P2 W/FIN 1
fa621
Transistor 2SC536 AUD 1
,.:,
Q620
Transistor 2SA608 1
Q903
Transistor 2SD400
1
Q901,902
Transistor 2SD400
2
D901,903,
Diode DS135 3
904
D902
Diode DS135 1
D621,622
Diode GMA01 or 1SS133
2
D905
Zener Diode GZA9.1Z
1
D601
Zener Diode GZA6.8Y
1
~· 0906
Zener Diode GZA7 .5Z
1
t 0923
Zener Diode GZA5.6X
1
D624
Zener Diode GZA4.7X
1
RESISTORS
All Resistors are Carbon T-type ±5% 1/6W, unless
otherwise noted.
R620
1K ohm
1
R621
27K ohm
1
R622
10K ohm 1
R623
6.8K ohm
1
R624
10K ohm
1
R625
6.8K ohm
1
R626
220 ohm, V-type ¼W
1
R627
4.7K ohm
1
R628
1K ohm
1
R629
10K ohm
1
R901
1 ohm, P-type ¼W
1
I,
R902
150 ohm
1
t
R903
~
33 ohm
1
R904
270 ohm
1 .
R905
l
560 ohm
1
~
-
Key. No.
Part No.
Description
POWER SUPPLY P. C. B. ASS'Y
RESISTORS
-R601
R602
R603
R604
R605
R606,607
R610
R608
R619
CAPACITORS
C601
C602
C613
C620
C621
C622
C623
C612
C901
C902
C903
C904
C905
C906
C913,914
C909
C452,552
C603
C604,605
C606
C607
C608
C912
MIC-AMP P. C. B. ASS'Y
D73
141-4-250T-4 7176
4-240T-19500
123-2-4 72R-00401
Q401
RESISTORS
R402
R403
R404
R405
R406
R920
R408,508
R400
CAPACITORS
C402
C404
C924
C403
C918
METER P. C. B. ASS'Y
D74 141-4-250T-47502
D633,634
D630,631,
632
IC630
D635
R634
R635
R637
R639,640
21 -
RESISTORS
1 ohm P-type ¼W
1K ohm
1.5K ohm
56 ohm P-type ¼W
6.8 ohm
5.6K ohm
10K ohm
1K ohm
10K ohm
Electrolytic 47µF
10V
Electrolytic 100µF
10V
Electrolytic 10µF
10V
Electrolytic 22µF
10V
Electrolytic 4.7µF (NOP)
25V
Electrolytic 220µF
16V
Electrolytic 47µF
16V
Electrolytic 4.7µF (NOP)
25V
Electrolytic 10µF
16V
Electrolytic 1 OOµF
10V
Electrolytic 220µF
16V
Electrolytic 220µF
10V
Electrolytic 1 OOµF
10V
Electrolytic 1µF
·sov
Electrolytic 1µF
50V
Electrolytic 1µF
50V
Electrolytic 4.7µF
25V
BC Con 0.0018µF ±10% 25V
BC Con 0.0047µF
±10% 25V
BC Con 0.033µF
±5% 25V
PP Con 0.015µF
±5% 100V
Ceramic 0.01µF +80-20% 50V
Mylar 0.1µF
±20% 50V
P.C.B. Ass'y, Mic. Amp
Socket, MIC
Lug
Transistor 2SC2320 NF
1M ohm
3.9K ohm
47 ohm
15K ohm
22K ohm
220 ohm
56K ohm
10K ohm
Electrolytic 1µF 50V
Electrolytic 2.2µF
50V
Electrolytic 220µF 10V
Ceramic 0.001µF
±10% 50V
Ceramic 0.022µF +80-20% 50V
P.C.B. Ass'y, Meter
LED SLP156B-40 Red
LED SLP256B-40 Green
IC LB1416
Zener Diode GZA6.2X
150K ohm
10K ohm
33K ohm
330 ohm
a·w
1
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
2
1
2
1
1
1
1 .
I
1
1
1
1
1
1
2
1
1
2
3
1
1
1
2
