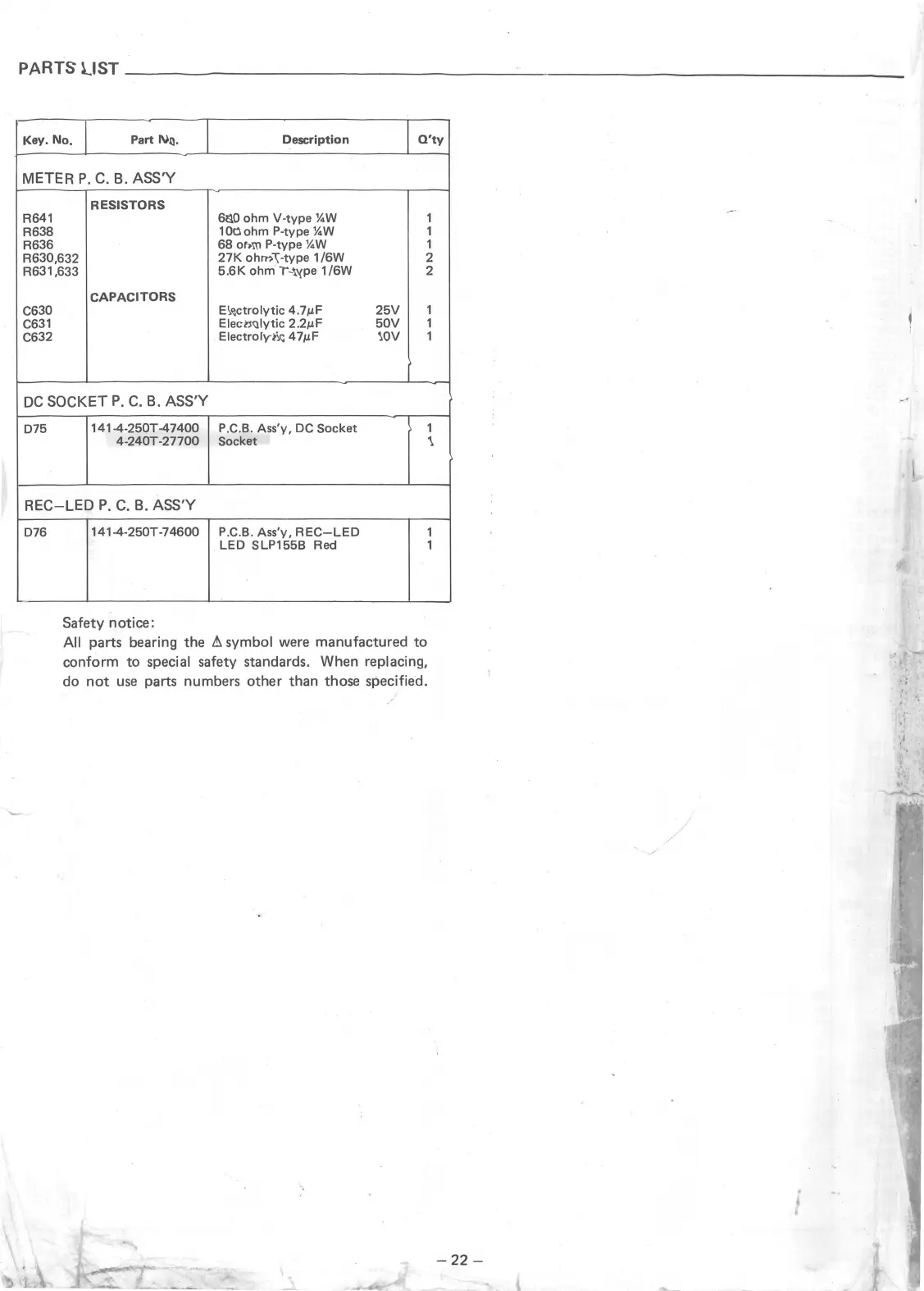

PARTS UST _______________________________ _
Key. No.
Part N.i.
Description
O'ty
METER P. C. B. ASS'Y
RESISTORS
R641
6110 ohm V-type ¼W
1
R638
100ohm P-type ¼W
1
R636
68 or.m P-type ¼W
1
R630,632
27K ohrn,-type 1/6W 2
R631,633
5.6K ohm 1-\'{pe 1/6W
2
CAPACITORS
C630
E~llctrolytic 4.7µF
25V 1
C631
Elect}<;ilytic 2.2µF 50V
1
C632
Electrolyt~<; 47µF \OV
1
DC SOCKET P. C. B. ASS'Y
D75
141-4-250T -4 7400 P .C.B. Ass'y, DC Socket
1
4-240T-27700
Socket
\
REC-LED P. C. B. ASS'Y
D76
141-4-250T-74600 P.C.B. Ass'y, REC-LED 1
LED SLP155B Red
1
Safety notice:
All parts bearing the !:,. symbol were manufactured to
conform to special safety standards. When replacing,
do not use parts numbers other than those specified.
