Sanyo C4 - Belt Replacement

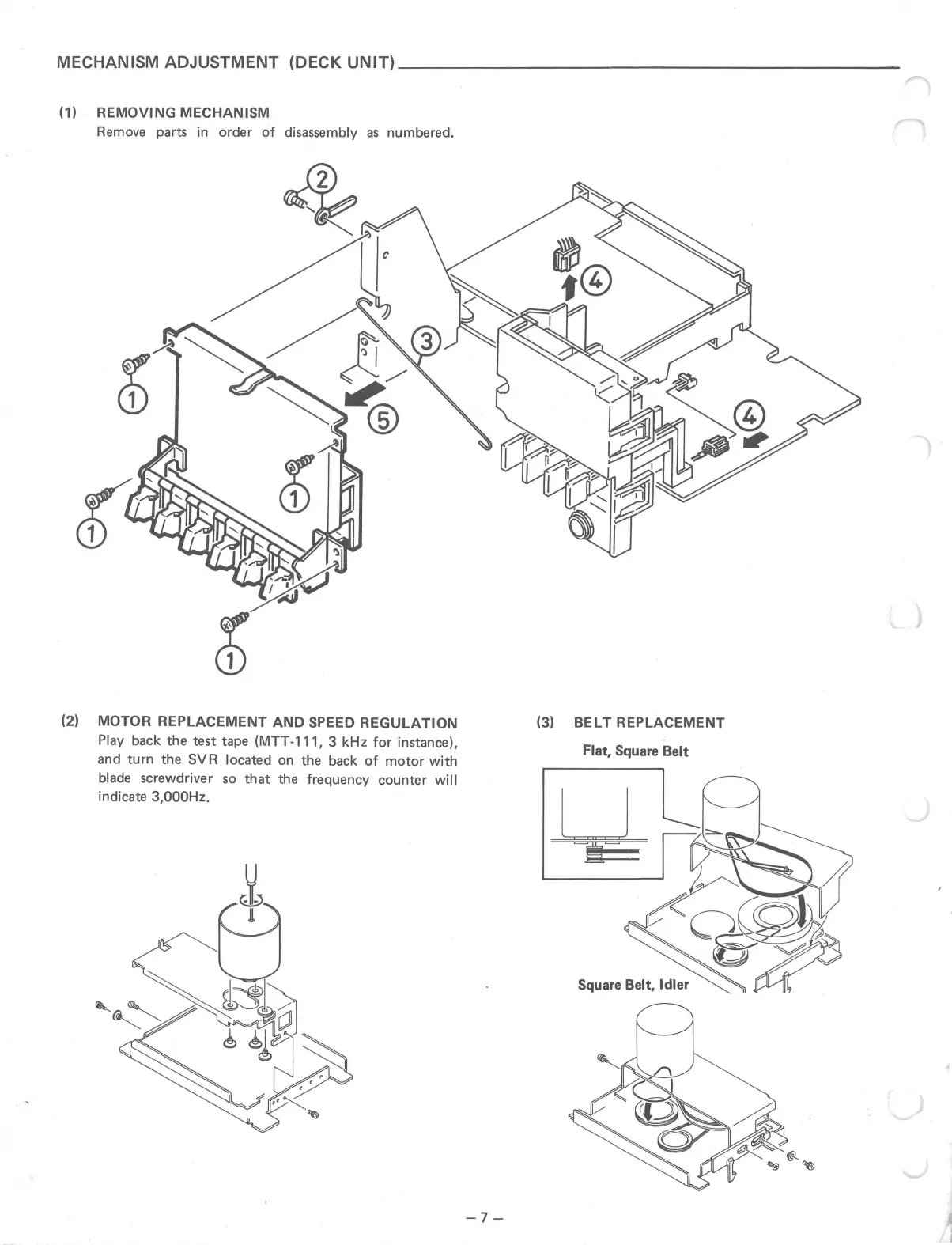

MECHANISM ADJUSTMENT {DECK UNIT) ____________________ _
(1) REMOVING MECHANISM
Remove parts in order of disassembly as numbered.
(2) MOTOR REPLACEMENT AND SPEED REGULATION
Play back the test tape (MTT-111, 3 kHz for instance),
and turn the SVR located on the back of motor with
blade screwdriver so that the frequency counter will
indicate 3,000Hz.
(3) BELT REPLACEMENT
Flat, Square Belt
-7-
)
-.....,)
