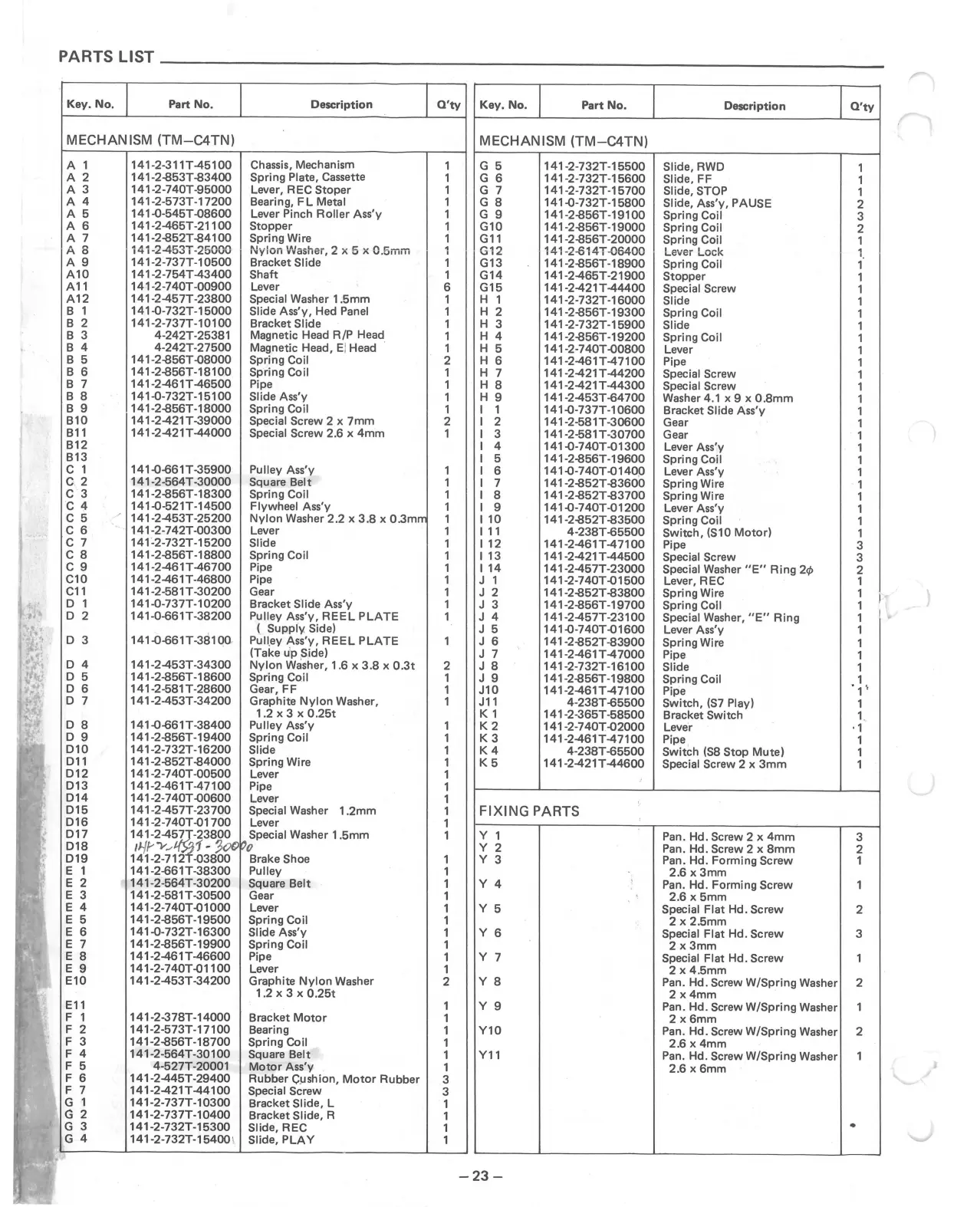

PARTS LIST
Key. No.
Part No. Description
Q'ty
Key. No.
Part No.
Description
O'ty
MECHANISM (TM-C4TN)
MECHANISM (TM-C4TN)
A 1 141-2-311T-45100
Chassis, Mechanism
1
A 2
141-2-853T -83400
Spring Plate, Cassette
1
G 5 141-2-732T-15500
Slide, RWD
1
G 6 141-2-732T-15600
Slide, FF
1
A 3 141-2-740T-95000 Lever, REC Stoper
1
G 7 141-2-732T-15700
Slide, STOP
1
A 4 141-2-573T-17200 Bearing, FL Metal
1
A 5
141-0-545T -08600
Lever Pinch Roller Ass'y
1
A 6
141-2-465T-21100
Stopper
1
A 7
141-2-852T -84100
Spring Wire
1
A 8
141-2-453T-25000
Nylon ~AJasher, 2 x 5 x 0.5mm
G 8 141-0-732T-15800
Slide, Ass'y, PAUSE
2
G 9
141-2-856T-19100
Spring Coil
3
G10
141-2-856T-19000
Spring Coil
2
G11
141-2-856T-20000
Spring Coil
1
G12
141-2-614T-06400
Lever Lock
1
A 9
141-2-737T-10500
Bracket Slide
1
A10 141-2-754T-43400
Shaft
1
A11 141-2-740T-00900 Lever
6
A12
141-2-45 7T-23800
Special Washer 1 .5mm
1
G13 141-2-856T-18900
Spring Coil
1
G14
141-2-465T-21900
Stopper
1
G15
141-2-421T-44400
Special Screw
1
H 1
141-2-732T-16000
Slide
1
B 1 141-0-732T-15000
Slide Ass'y, Hed Panel
1
B 2
141-2-737T-10100
Bracket Slide
1
B 3 4-242T-25381
Magnetic Head R/P Head_
1
B 4
4-242T-27500
Magnetic Head, El Head
1
H 2
141-2-856T-19300
Spring Coil
1
H 3
141-2-732T-15900
Slide
1
H 4
141-2-856T-19200
Spring Coil
1
H 5
141-2-740T-00800
Lever
1
B 5
141-2-856T-08000
Spring Coil
2
B 6
141-2-856T-18100
Spring Coil
1
B 7 141-2-461 T -46500 Pipe
1
B 8 141-0-732T-15100 Slide Ass'y
1
H 6
141-2-461T-47100
Pipe
1
H 7
141-2-421T-44200
Special Screw
1
H 8 141-2-421T-44300
Special Screw
1
H 9 141-2-453T -64 700
Washer 4.1 x 9 x 0.8mm
1
B 9
141-2-856T-18000
Spring Coil
1
B10 141-2-421 T-39000
Special Screw 2 x 7mm
2
1 141-0-737T-10600
Bracket Slide Ass'y
1
2 141-2-581T-30600
Gear
1
B11 141-2-421T -44000
Special Screw 2.6 x 4mm
1
3 141-2-581T-30700
Gear
1
B12
B13
C 1
141-0-661T -35900
Pulley Ass'y
1
C 2 141-2-564T-30000
Square Belt
1
C 3 141-2-856T-18300 Spring Coil
1
C 4 141-0-521T-14500 Flywheel Ass'y
1
C 5
/
141-2-453T-25200
Nylon Washer 2.2 x 3.8 x 0.3m
1
C 6
141-2-742T-00300
Lever
1
C 7 14F2-732T-15200
Slide
1
C 8
141-2-856T-18800
Spring Coil
1
C 9
141-2-461T-46700 Pipe
1
C10 141-2-461T-46800 Pipe
1
4
141-0-740T-01300
Lever Ass'y
1
5
141-2-856T-19600
Spring Coil
1
6 141-0-740T -01400
Lever Ass'y
1
7 141-2-852T -83600
Spring Wire
1
8 141-2-852T -83700
Spring Wire
1
9 141-0-740T-01200
Lever Ass'y
1
10
141-2-852T -83500
Spring Coil
1
11
4-238T -65500
Switch, (S10 Motor)
1
12 141-2-461T-47100
Pipe
3
13 141-2-421 T-44500
Special Screw
3
14
141-2-457T-23000
Special Washer "E" Ring 2q,
2
1
141-2-740T-01500
Lever, REC
1
C11 141-2-581T-30200 Gear
1
D 1
141-0-737T-10200
Bracket Slide Ass'y
1
J 2 141-2-852T -83800
Spring Wire
1
I
J 3
141-2-856T-19700
Spring Coll
1
D 2 141-0-661T-38200
Pulley Ass'y, REEL PLATE
1
141-0-661T-38100
( Suppl¥ Side)
D 3
Pulley Ass'y, REEL PLATE
(Take u'p ,Side)
D 4 141-2-453T-34300
Nylon Washer, 1.6 x 3.8 x 0.3t
2
J 4 141-2-457T-23100
Special Washer, "E" Ring
1
J 5 141-0-740T-01600
Lever Ass'y
1
J 6
141-2-852T-83900
Spring Wire
1
J 7 141-2-461T-47000
Pipe
1
J 8 141-2-732T-16100
Slide
1
D 5 141-2-856T-18600
Spring Coil
1
D 6 141-2-581T-28600
Gear, FF
1
D 7 141-2-453T-34200
Graphite Nylon Washer,
1
1 .2 X 3 X O .25t
D 8
141-0-661T-38400 Pulley Ass'y
1
J 9
141-2-856T-19800
Spring Coil
..
1
J10
141-2-461T-47100
Pipe
1 >
J11
4-238T -65500
Switch, (S7 Play)
1
K 1
141-2-365T-58500
Bracket Switch
1.
K2
141-2-740T-02000
Lever
. 1
D 9 141-2-856T-19400 Spring Coil
1
D10 141-2-732T-16200
Slide
1
D11 141-2-852T -84000
Spring Wire
1
D12 141-2-740T-00500
Lever
1
K3
141-2-461T-4 7100
Pipe
1
K4
4-238T-65500
Switch (S8 Stop Mute)
1
K5
141-2-421T-44600
Special Screw 2 x 3mm
1
D13 141-2-461T-47100
Pipe
1
D14
141-2-740T-00600
Lever
1
D15 141-2-457T-23700
Special Washer
1.2mm
1
FIXING PARTS
D16 141-2-740T -01700
Lever
1
D17
141-2-45m-23800
Special Washer 1 .5mm
1
D18
1>-{f-'..,,,.., 1 - pot' (}
D19
141-2-712 -03800
Brake Shoe
1
E 1
141-2-661T-38300
Pulley
1
y 1
Pan. Hd. Screw 2 x 4mm
3
y 2
Pan. Hd. Screw 2 x 8mm
2
y 3
Pan. Hd. Forming Screw
1
2.6 x3mm
E 2 141-2-564T-30200 Square Belt
1
E 3
141-2-581T-30500 Gear
1
y 4
Pan. Hd. Forming Screw
1
2.6 x 5mm
E 4 141-2-740T-01000
Lever
1
E 5 141-2-856T-19500 Spring Coil
1
y 5
Special Flat Hd. Screw
2
2 x 2.5mm
E 6
141-0-732T-16300
Slide Ass'y
1
E 7 141-2-856T-19900
Spring Coil
1
y 6
Special Flat Hd. Screw
3
2x3mm
E 8 141-2-461T-46600
Pipe
1
E 9 141-2-740T-01100
Lever
1
y 7
Special Flat Hd. Screw 1
2 x4.5mm
E10
141-2-453T-34200
Graphite Nylon Washer
2
1.2 X 3 X 0.25t
y 8
Pan. Hd. Screw W/Spring Washer
2
2 x4mm
E11
1
F 1
141-2-378T-14000
Bracket Motor
1
y 9
Pan. Hd. Screw W/Spring Washer
1
2 x6mm
F 2
141-2-573T-17100 Bearing
1
F 3 141-2-856T-18700
Spring Coil
1
Y10
Pan. Hd. Screw W/Spring Washer
2
2.6 x4mm
F 4 141-2-564T-30100
Square Belt
1
F 5 4-527T-20001
Motor Ass'y
1
Y11
Pan. Hd. Screw W/Spring Washer
1
2.6 x 6mm
F 6 141-2-445T-29400
Rubber C_ushion, Motor Rubber
3
F 7
141-2-421T-44100
Special Screw
3
G 1 141-2-737T-10300
Bracket Slide, L
1
G 2 141-2-737T-10400
Bracket Slide, R
1
G 3
141-2-732T-15300
Slide, REC
1
.
G 4 141-2-732T-15400,
Slide, PLAY
1
-23-
