Sanyo DC-DA2000 Service Manual

- 3 -

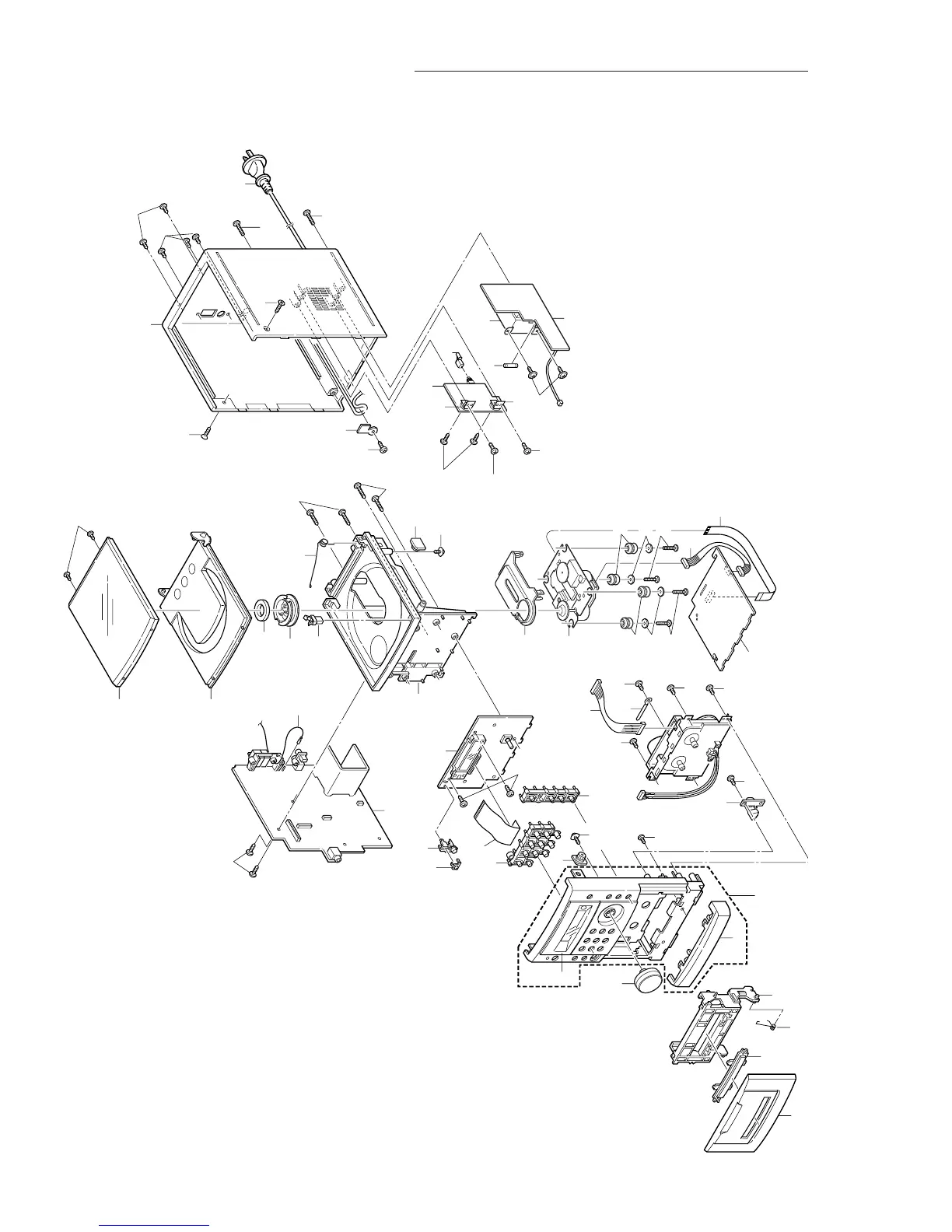

EXPLODED VIEW (CABINET & CHASSIS)
16
29
Y03
Y05
Y01
Y06
Y11
Y09
Y13
Y14
Y14
Y14
Y15
Y16
Y16
Y17
Y17
Y18
Y19
Y11
Y10
Y12
Y03
Y04
Y03
Y03
Y02
Y07
Y08
Y08
Y07
15
1
2
3
4
5
6
7
8
10
9
11
71
73
74
75
26
25
25
72
28
27
20
18
19
21
22
23
24
12
13
14
15
17
51
53
54
57
56
58
52
55
This is a basic exploded view.

Sanyo DC-DA2000 Specifications

Tuner

FM frequency range	87.5 - 108 MHz
AM frequency range (9 kHz step)	522 - 1710 kHz
AM frequency range (10 kHz step)	520 - 1710 kHz

CD Player

Channels	2-channel stereo
Sampling frequency	44.1 kHz
Laser output	0.6 mW
Wave length	790 nm

Cassette Deck

Track system	4-track, 2-channel stereo
Frequency response	80 Hz to 15 kHz
Signal-to-noise ratio	40 dB
Wow/flutter	0.15% (WRMS)
Fast forward/rewind time	Approx. 110 sec. (C-60)

General

Output power	4W x 2
Power requirements	AC 230 ~ 240 V, 50 Hz
Power consumption	21 W
Dimensions	150(W) x 230(H) x 205(D) mm
Weight	2.3 kg

Speaker Systems

Type	Full range bass reflex
Unit used	10 cm cone type
Maximum power-handling capacity	8 W (peak)
Nominal impedance	4 ohms
Dimensions	145(W) x 230(H) x 170(D) mm
Weight	1.2 kg (per speaker)
