10
R-AUDIO-L
PR/CR PB/CB Y
HDMI1 IN
(DVI)
AUDIO (DVI)
HDMI2 IN
AUDIO
PC IN
AV3 IN
AV1 IN
R-AUDIO-L
VIDEO
R-AUDIO-L
VIDEO
(MONO)
ANT.75
HDMI4 IN
IBM-compatible
computers
or Macintosh
computers
(VGA / SVGA /
XGA )
Desktop
type
Cables used for connection (These cables are not
supplied with this LCD TV.)
● PC/VGA Cable (D-SUB 15pin)
● HDMI Cable: HDMI Input
● MAC Adapter (in the case of connecting Macintosh
computer)
●
Audio Cable [Mini Plug (L/R)]
NOTE:
When connecting the cables, AC Power Cords
of both LCD TV and external equipment should
be disconnected from AC outlet. Turn LCD
TV and peripheral equipment on before your
computer is switched on.
PC Input
Audio Output
(stereo)
Monitor
Output
HDMI Output
Audio Input
(stereo)
HDMI Input

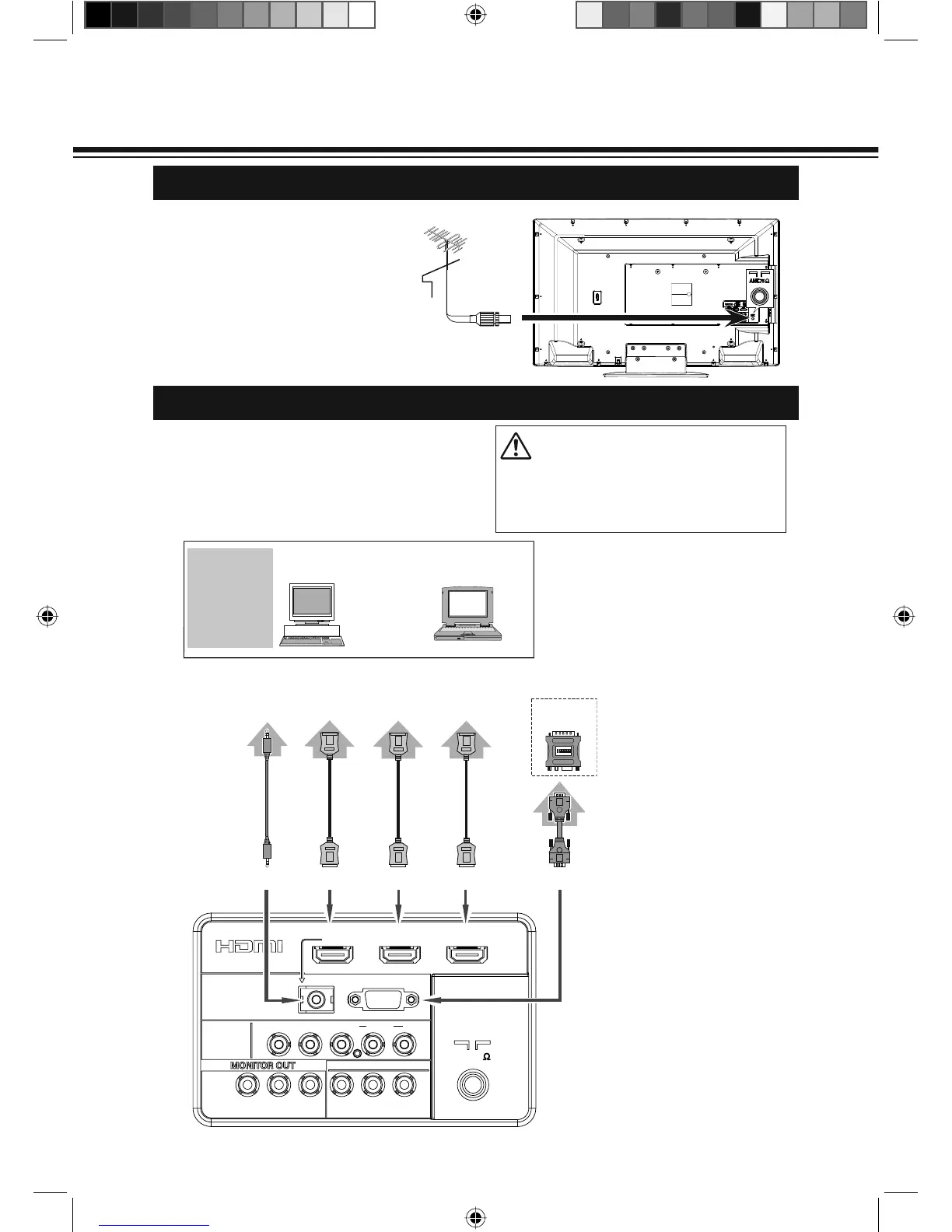

CONNECTING A COMPUTER
Laptop
type
Note:
●You can connect the DVI source to HDMI input
terminal by using the DVI to HDMI converter.
●HDMI4 is only for model LCD-42K40/A-HD.
Cable used for connection (This cable
is not supplied with this LCD TV.)
●
Aerial Cable
NOTE:
For all aerial circuit problems, please
consult your local dealer.
Aerial Cable
CONNECTING
OUTDOOR
AERIAL
Outdoor Aerial
CONNECTING LCD TV
MAC
Adapter
LCD-K40.indd 10 1/21/2010 10:47:10 AM
