Sanyo LCD-32K40 User Manual

11
HDMI1 IN
(DVI)
HDMI2 IN
AUDIO (DVI)
AUDIO
PC IN
R-AUDIO-L
PR/CR---PB/CB Y
AV1 IN
R-AUDIO-L
VIDEO
R-AUDIO-L
VIDEO
(MONO)
ANT.75
AV3 IN
HDMI4 IN
External Audio
Equipment
Video Source (example)
DVD Player
Audio cable
(RCA X 2)
R L
C
R/PR,CB/PB, Y
Component Video Source
(example)
DVD video equipment.
(such as DVD player or high-definition
TV source)
DVD
(RCA X 3)

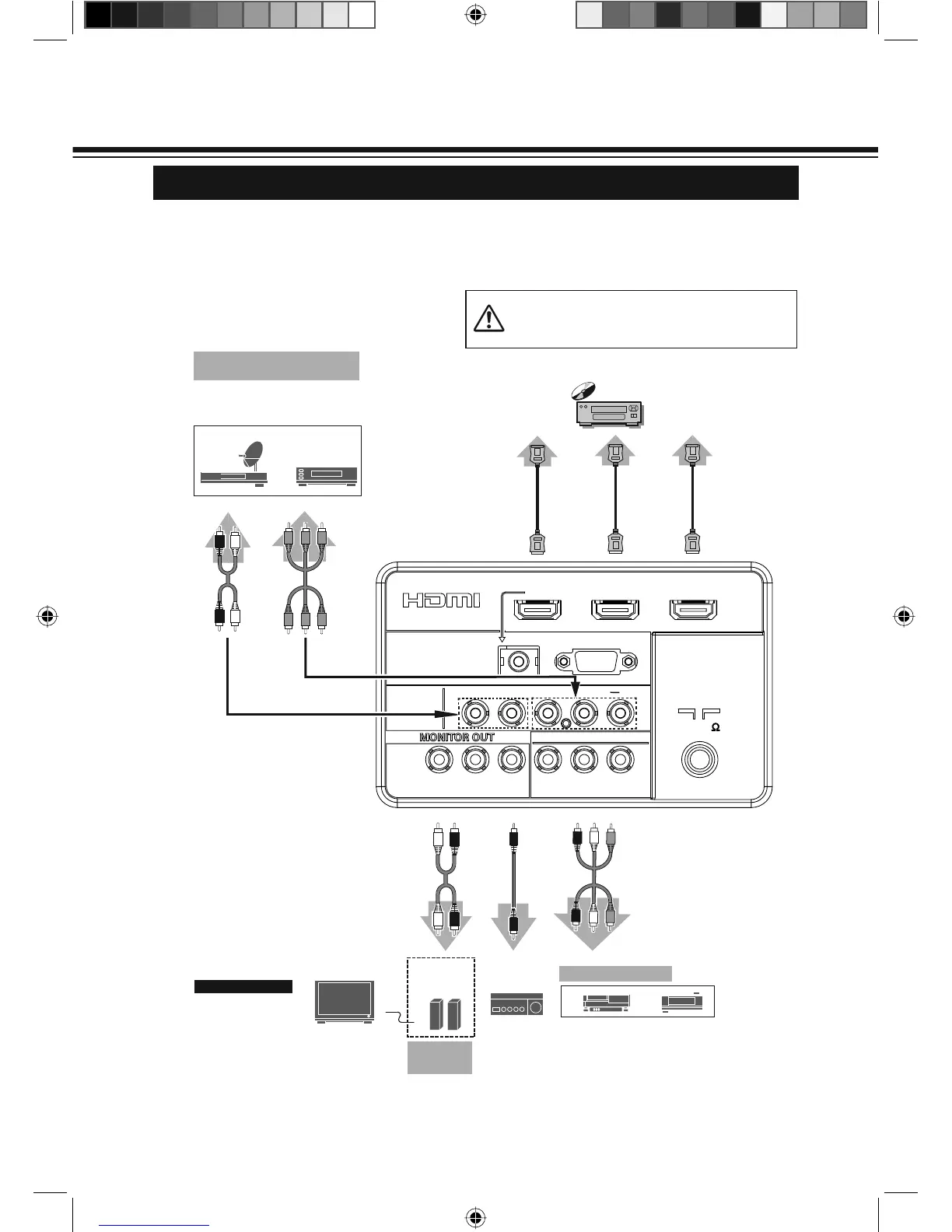

CONNECTING VIDEO EQUIPMENT
Cables used for connection (These cables are not supplied with this LCD TV.)
● Video Cable(RCA X1), S-Video Cable, Audio Cable (RCA X2) : Video 1 or Video 2
● Video Cable(RCA X3), Audio Cable (RCA X2) : DVD (Component Video)
● Video Cable(RCA X1), Audio Cable (RCA X2) : Monitor Output
● HDMI Cable: HDMI Input
NOTE : When connecting the cable, AC Power Cords
of both LCD TV and external equipment should
be disconnected from AC outlet.
External
monitor
Composite Video
and Audio Output
Audio
Speaker
(stereo)
Audio
Amplifier
Note:
Video (RCA) output is for
TV, AV or S-VIDEO only.
MONITOR OUT
Video cable
(RCA x1)
Audio cable
(RCA x 2)
Video and Audio
cable (RCA x 3)
R , L , V
Video Cassette
Recorder
Video Disc
Player
HDMI cable
(RCA x1)
HDMI cable
(RCA x1)
HDMI cable
(RCA x1)
CONNECTING LCD TV
Digital AV Equipment
Note:
HDMI4 is only for model LCD-42K40/A-HD.
LCD-K40.indd 11 1/21/2010 10:47:10 AM
