Connect the cable with a plug
from aerial jack to the aerial
socket on the cabinet back.
Headphone Jack
SIDE TERMINAL
PREPARATION
Connect computer outputs
to these terminals.
●RGB (D-SUB)
●Audio (L/R)
PC Input Terminals
Connect all kinds of HDMI output
equipment to these terminals.
●HDMI 1(DVI)
●HDMI 2
●HDMI 3
HDMI Input Terminals

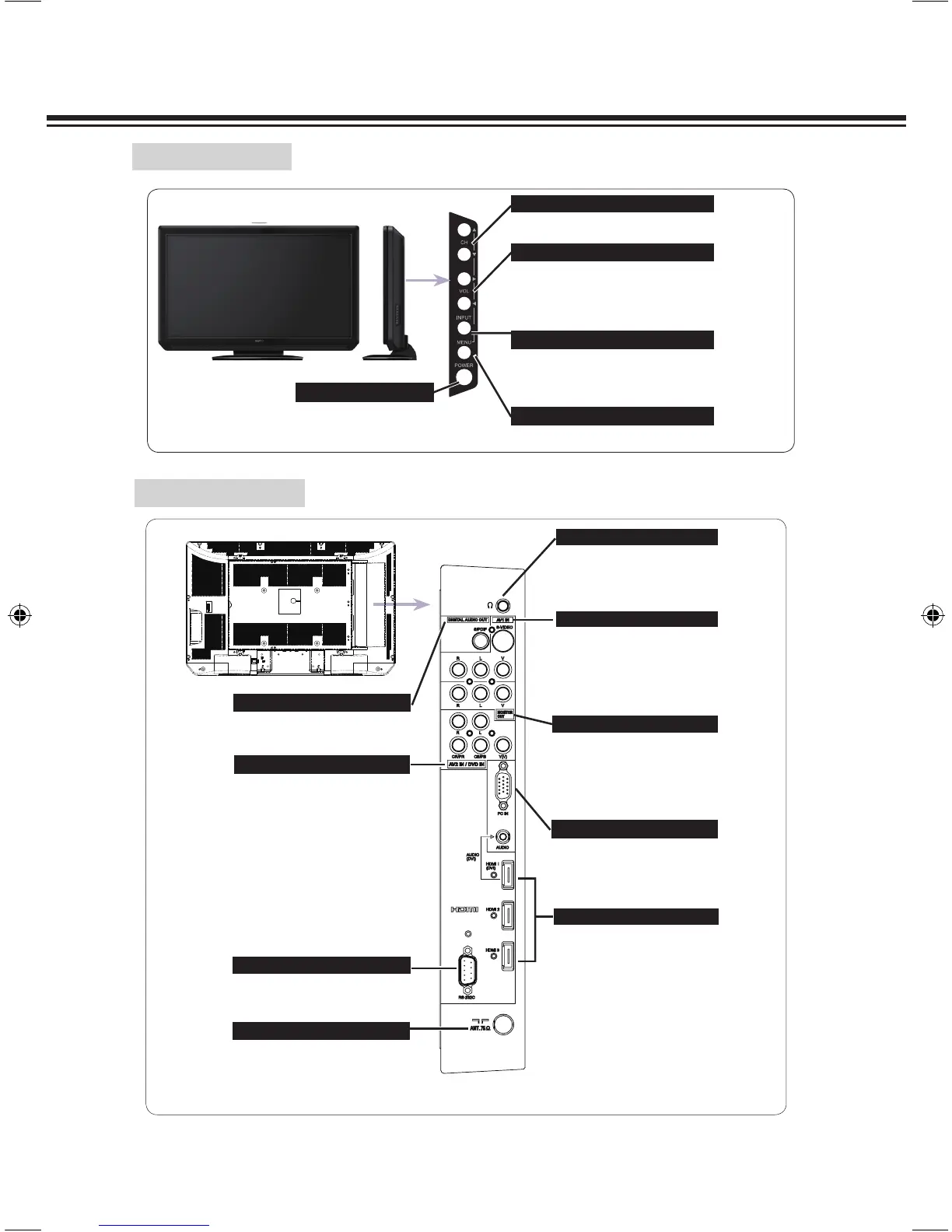

SIDE CONTROL
(Each button on the control panel has the same function with its
counterpart on the remote control. )
C o nn e c t v i d e o a n d au d i o
outputs from video equipment.
DVD /Y t ermi nal is als o f or
composite video input.
●DVD component (RCA type)
●Audio L and R (RCA type)
AV2 Input Terminals
Connect a television, video
recorder or external audio
amplifier to these jacks.
●Video (RCA type)
●Audio L and R (RCA type)
Monitor Output Terminals
Connect video and audio outputs
from video equipmenut.
●CompositeVideo (RCA type)
●Audio L and R (RCA type)
●S-Video (mini DIN 4 type)
AV1 Input Terminals
S/PDIF digital audio out Terminal
Connect the digital audio input
of a digital audio component.
Fo r se rv ice u se. Th e us er
cannot operate the unit through
this terminal.
Connect a headphone (stereo)
to this jack.
When this jack is inserted,
speaker should be muted.
RS232 Interface
Aerial Jack
OK
- Used to Change channels.
- Used to select items.
- Used to adjust the volume.
- Used to adjust the value of the selected item on
On-Screen Menu.
- Used to execute the selected item on
On-Screen Menu.
- Used to select input source: TV/AV1/(S-VIDEO)/
AV2(DVD)/HDMI 1(DVI)/HDMI 2/HDMI 3/PC.
- Used to confirm the selected item on On-Screen
Menu.
- Open or close the On-Screen Menu.
POWER ON/ OFF button
- Used to turn the LCD
TV on or off.
VOLUME (+/-) buttons
MENU button
INPUT MODE button
CHANNELUP/DOWN(▲▼)buttons
