Connections(Continued)

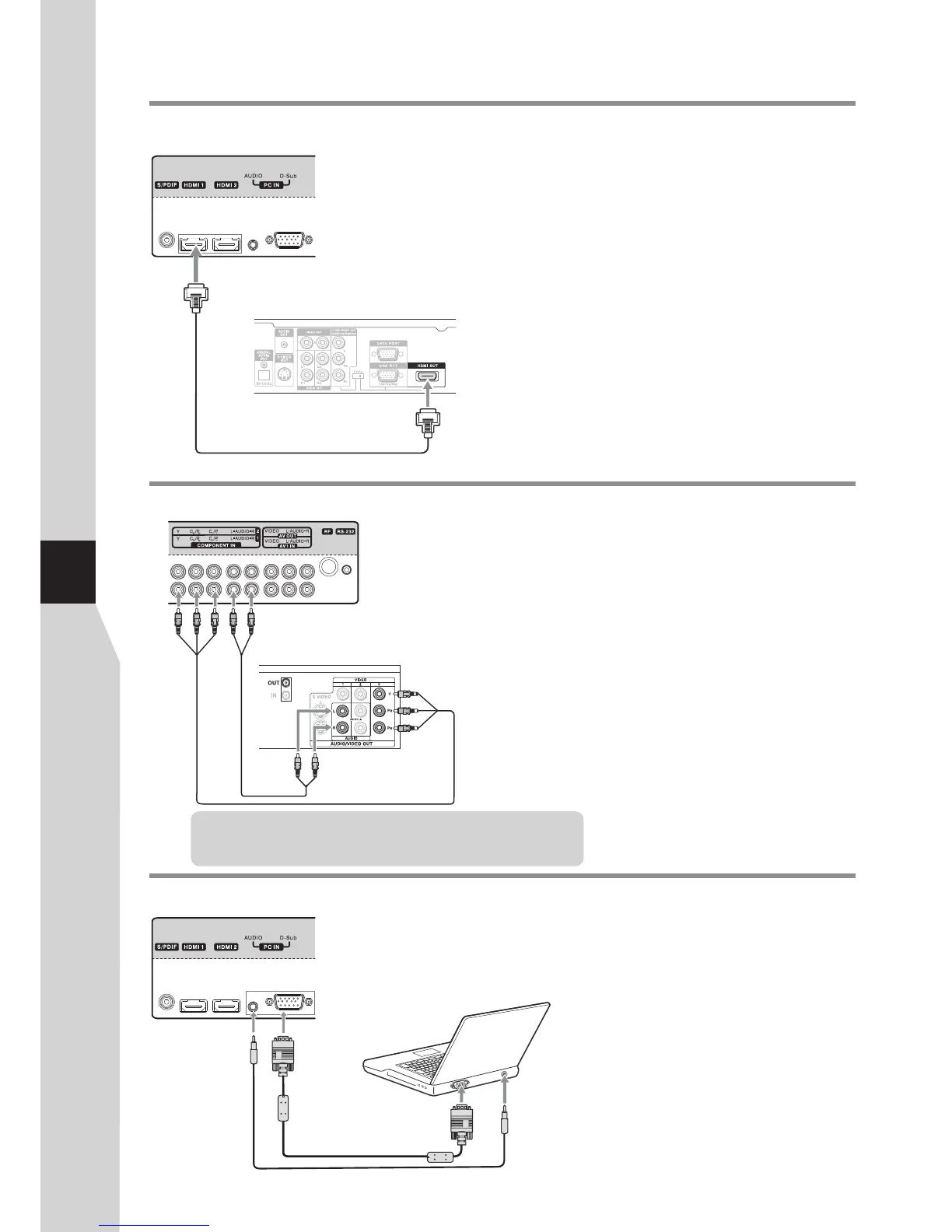

Connecting a component video device
TV REAR
Component
Audio cable
Component video device
video cable
To connect a component video device:
1. Turn on your TV, then press SOURCE button. The Input
Source menu opens.
2. Press 5or6 to select Component 1 or Component 2,
then press OK to confirm.
3. Turn on your external device and set it to the correct mode.
See the device’s user guide for more information.
To play from the component video device:
Connect the Component Video cable between the Y, Cb/Pb,
Cr/Pr input jacks on the TV and Y, Cb/Pb, Cr/Pr output jacks on
the device .
Connect the Audio cable between the AUDIO input jacks on
the TV and AUDIO output jacks on the device.
Component cables often have red, green, and blue color-coded
video connectors and red and white audio connectors. Match the
colors when making connections.
Connecting a computer
TV REAR
D-Sub cable
To monitor port
(15-pin D-Sub)
To audio output jack
Audio cable
To connect a computer:
1. Turn on your TV, then press SOURCE
button. The Input Source menu opens.
2. Press 5 or 6 to select D-SUB, then press
OK to confirm.
3. Turn on your computer, and adjust the display
properties as required.
To play video from the computer:
Connect a VGA cable between the VGA jack on the computer
and the VGA input jack on the unit.
Connect an Audio cable between the AUDIO output on the
computer and AUDIO input jack on the unit.
Connecting an HDMI device
TV REAR
HDMI cable
HDMI device
Connect the HDMI cable between the HDMI jack on the TV
and HDMI output jack on the device.
Note: If your device has an HDMI connection, we
recommend you use that to get the best quality possible.
To play from the HDMI device:
How to connect an HDMI device:
1. Turn on your TV, then press SOURCE button. The Input
Source menu opens.
2. Press 5or6to select HDMI1 or HDMI2 or HDMI3
correspondingly, then press OK to confirm.
3. Turn on the HDMI device and set it to the correct mode.
Refer to the instructions that came with the HDMI device.
If the external device has DVI output only, use a DVI to HDMI
adapter cable to connect to the HDMI terminal. Connect the audio
cable to the PC IN AUDIO jack on the TV rear.
Note:
12
