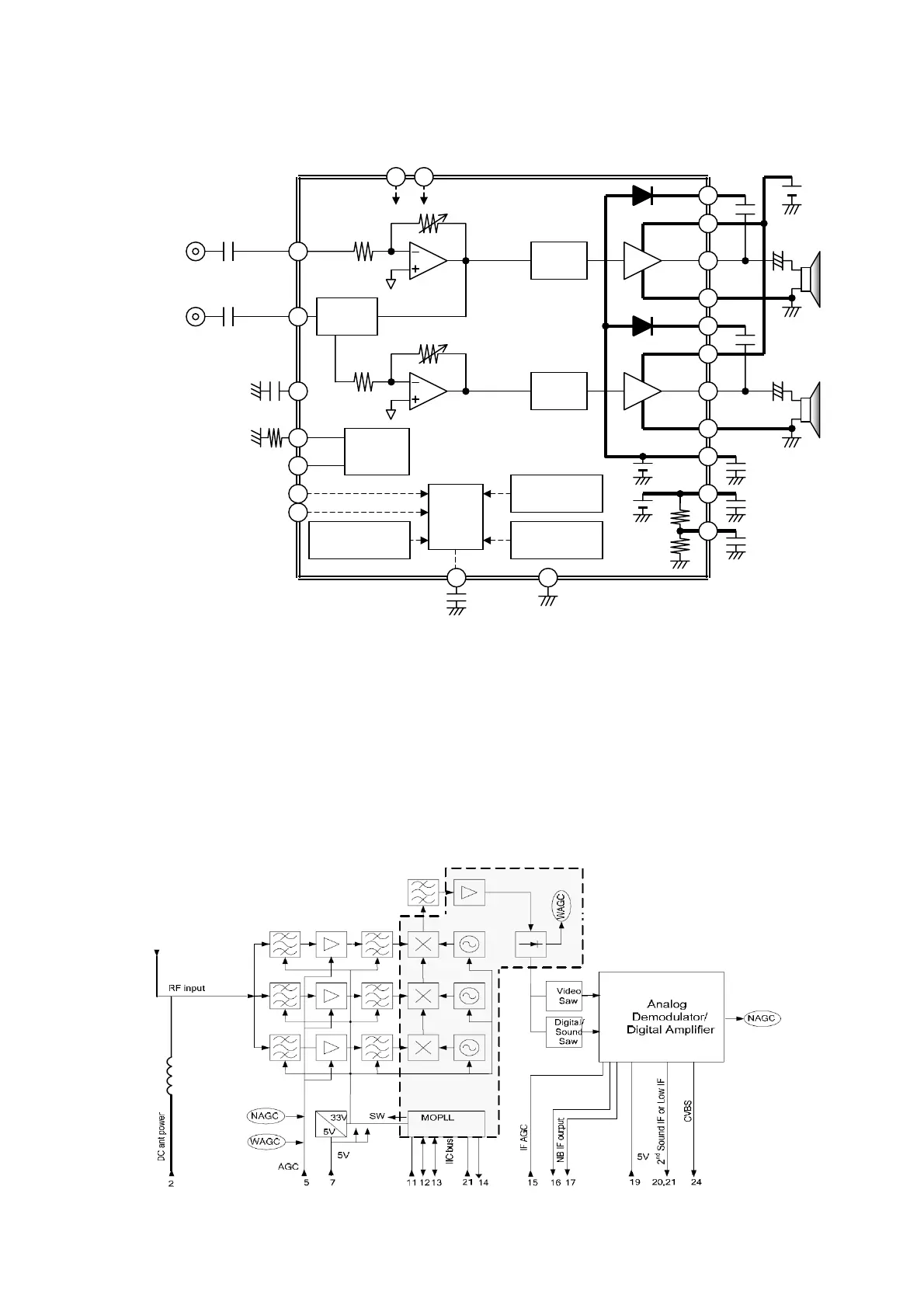

4、 Tuner：FQD1116ME/IV
The FQD1116 belongs to the new family of highly-featured hybrid frontends, which are
designed to meet a wide range of RF applications. The FQD1116 combines the functions
of a DVB-T digital tuner and a multi-standard TV IF demodulation unit for both positive and
negative modulated TV systems. The unit includes a 7 MHz digital SAW filter with an IF
AGC amplifier for connection to the DVB-T channel decoder. The FQD1116 is intended
for CCIR L/L’ (France), B/G, I and D/K systems and DVB-T broadcast.
The frontends have a built-in digital (I2C) PLL tuning system. A DC-DC converter circuit is
built into the FQD1116 to synthesize the tuning voltage required, thus making the frontend
a true 5V device.
●Power supply voltage : 11V to 25V
●Speaker Impedance : from 4 to 8Ω
Under Voltage
Detection
Over Temp.
Detection
Over Current
Detection
Control
Logic
STBYL
GND
IN1
A
MUTEL
PROT
CBIAS
A
IN2
PWM
Gen.
PWM
Gen.
Oscillator
ROSC
GAIN1 GAIN2
SE/BTL
Selector
OUT1
HB1
VD1
VS1
OUT2
VD2
VS2
HB2
DVDD
AVCC
♪
♪
♪
♪
R
L
CLOCK
VREF
10V
5V
To Next Page
