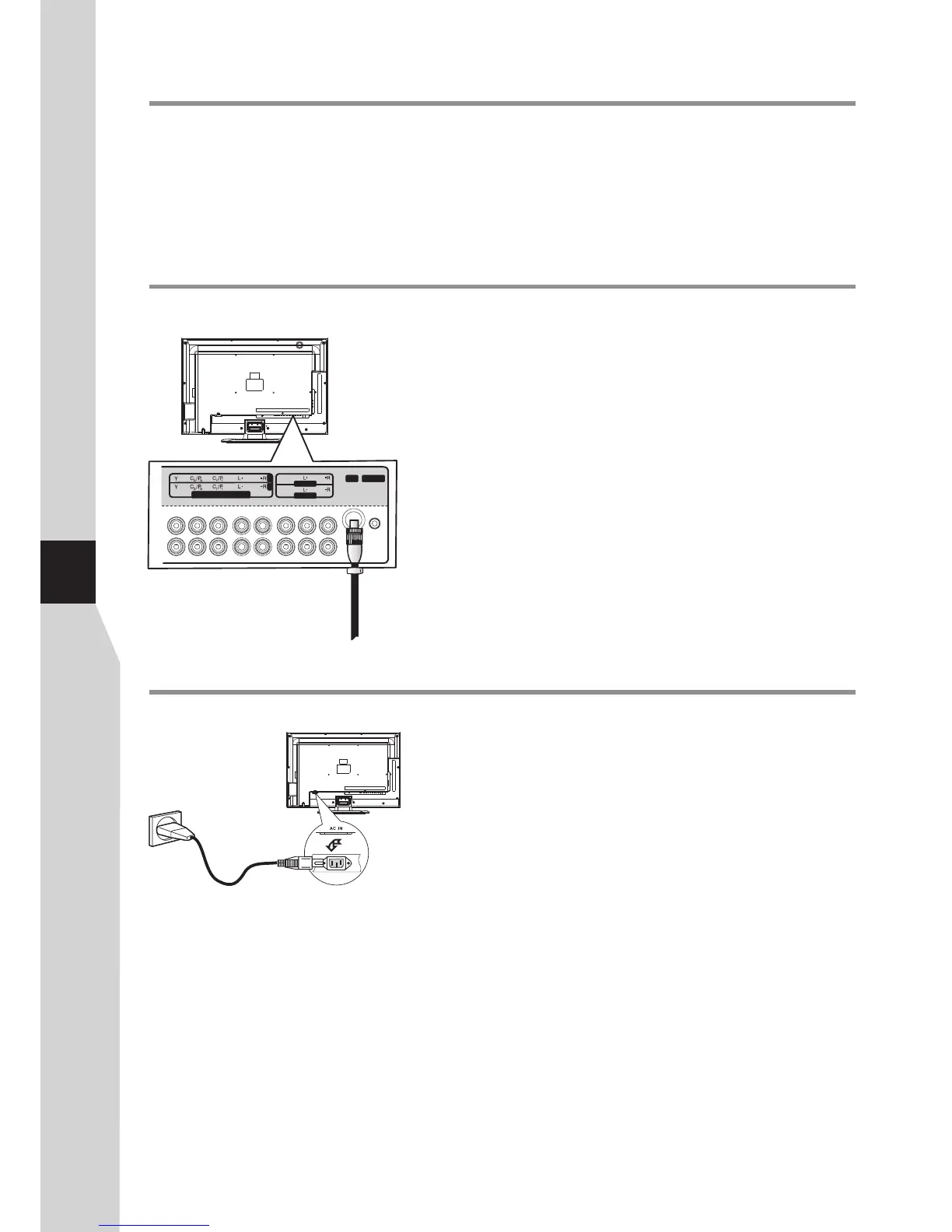

Sanyo LCD-46XR10F - Page 10

No.
Definition
H. - fre.（kHz） V. – fre.（Hz） Dot pulse fre.（MHz）
Note
6 720×576 31.25 50 27 576p(PAL PROG)
7 1280×720 45 59.94 74.18 720p(59p)
8 1280×720 45 60 74.25 720p(60p)
9 1280×720 37.5 50 74.25 720p(50p)
10 1920×1080 33.75 59.94 74.25 1080i(59i)
11 1920×1080 33.75 60 74.25 1080i(60i)
12 1920×1080 28.125 50 74.25 1080i(50i)
13 1920×1080 67.5 59.94 148.35 1080p(59p)
14 1920×1080 67.5 60 148.5 1080p(60p)
15 1920×1080 56.25 50 148.5 1080p(50p)
16 1920×1080 - 23.94/24 - -
17 1920×1080 - 25 - -
18 1920×1080 - 29.97/30 - -
5.4 VGA port
Input signal from VG848 signal generator to VGA port with VGA signal formats listed in Table 4
respectively, check if the display and the sound are normal; if there is any H/V offset, enter into main
menu and select items “Picture->Screen->Auto Adjusting” in turn to make calibration automatically.
Table 4 VGA signal formats
No.
Definition
H. - fre.（kHz） V. – fre.（Hz） Dot pulse fre.（MHz）
Note
1 640×480 31.469 59.94 25.175 IBM
2 720×400 31.469 70.086 28.322 IBM
3 640×480 37.861 72.809 31.5 VESA
4 640×480 37.5 75 31.5 VESA
5 800×600 35.156 56.25 36 VESA
6 800×600 37.879 60.317 40 VESA
7 800×600 48.077 72.188 50 VESA
8 800×600 46.875 75 49.5 VESA
9 1024×768 48.363 60.004 65 VESA
10 1024×768 56.476 70.069 75 VESA
11 1024×768 60.023 75.029 78.75 VESA
12 1152×864 67.5 75 108 VESA
13 1280×960 60 60 108 VESA
14 1280×1024 63.98 60.02 108 VESA
15 1280×1024 80 75 135 SXGA
16 1440×900 - 60 - -
17 1680×1050 - 60 - -
18 1360×768 47.7 60 85.5 -
5.5 USB port
5.5.1 PVR function
Insert formatted USB memory containing recorded-program files, press key “record list” to
select and play program, check if the picture, the sound and other functions are normal.
