TEMPERATURE RECORDER (OPTION)
WARNING
Disconnect the power supply plug before attaching the temperature recorder or it may cause
electric shock or fire.

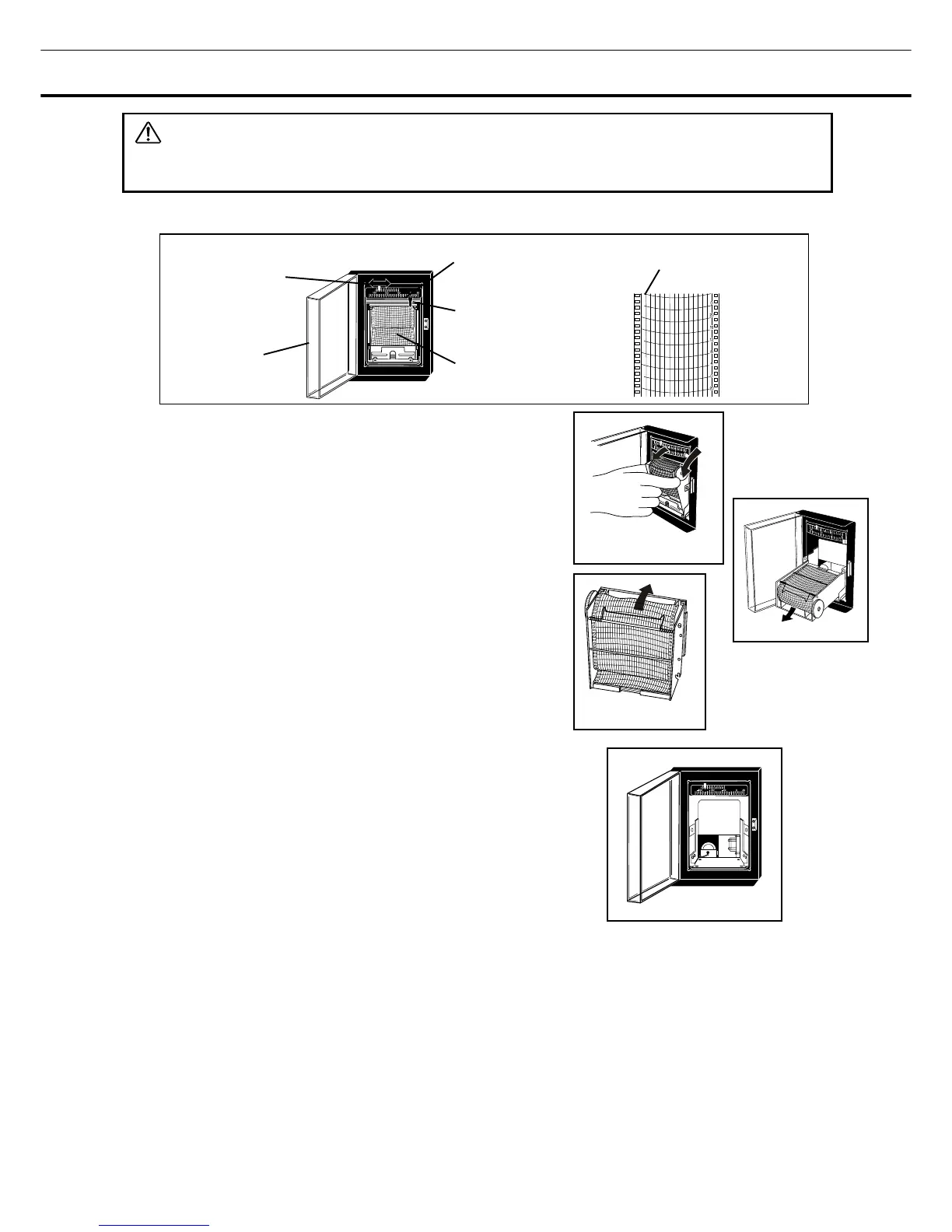

The figure below shows the description of a temperature recorder.
Recording indicator
Pen holder lever
Door
Warning indicator
Cartridge
Time
Feeding of chart
1. Open the door and let down the lever of the penholder; the pen
point is apart from the chart. (Fig. 1)
2. Pull the cartridge out of the mounted position. (Fig. 2)
3. Set a new chart in place on the rear bottom of the cartridge.
Set the hole on the chart in the cog of the chart driving assembly
and feed the chart in the direction of the arrow by driving the cog
wheel.
Fig. 1
Fig. 2
Fig. 3
4. Set the chart according to the mark of day and time. (Fig. 3)
5. When mounting, lay down the cartridge first, and push into the
mounting position with the groove set a the projection on the
position.
6. Set up the cartridge and settle in position.
Replacement of cell
Replace the dry cell once a year as follows:
1. Put up the penholder first, then pull out cartridge from the
mounted position.
2. Reset the battery chamber cover with wire, on the bottom left
side, and take out the cell.
3. Set a new cell by turning its anode to this side.
4. Shut the cover after exchanging cells. Mount the cartridge as
before and lay down the penholder.
Setting of back-up temperature
1. There is a red guide on the top of the temperature displayer. Adjust the guide with your finger to
back-up temperature, at which temperature the auxiliary cooling system starts to operate.
2. Set at a temperature 15
o
C higher than that of the freezer compartment.
38
