Sanyo PDP-42WV1 Service Manual

-26-
■ Parts List

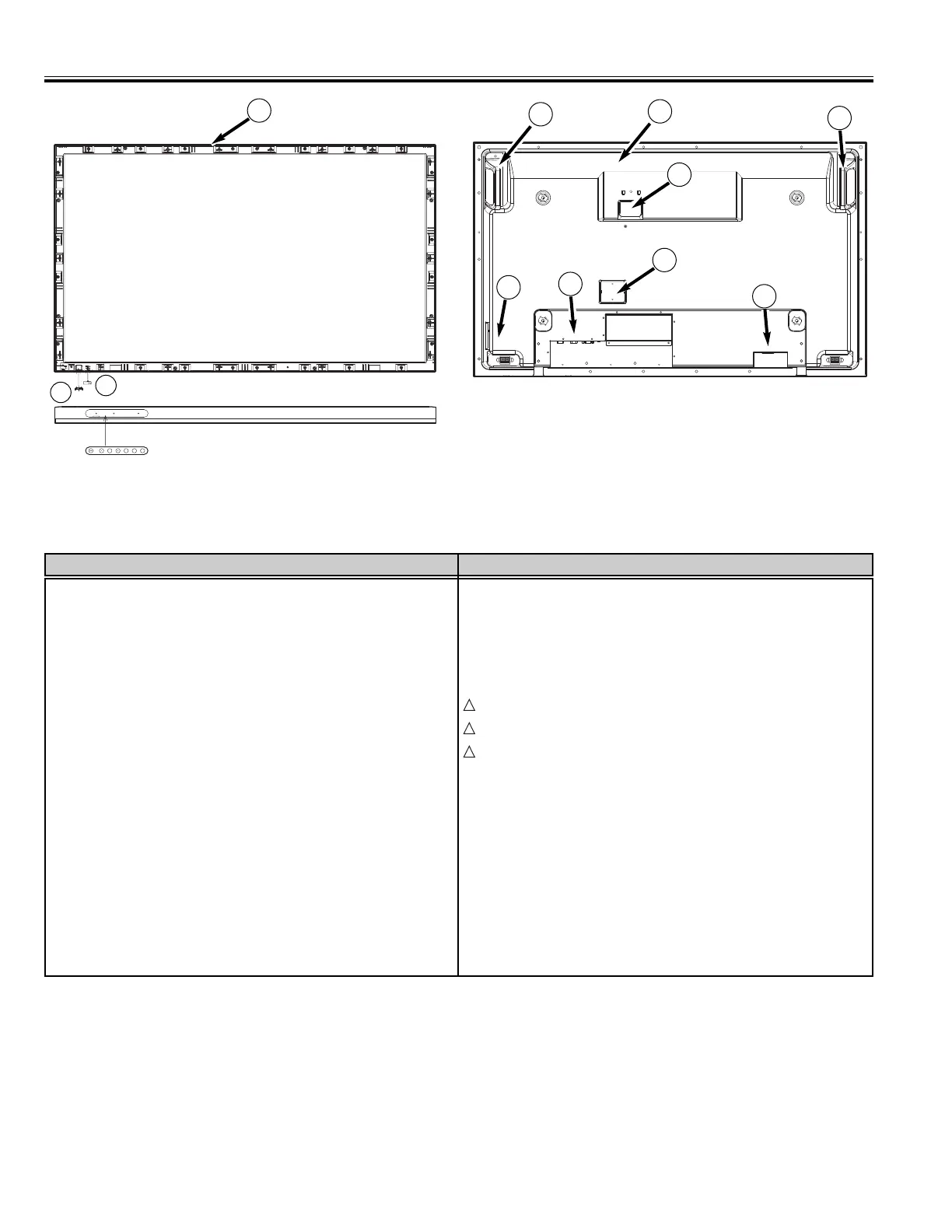

MECHANICAL PARTS
1 610 305 4827 ASSY,CABINET BACK-J3TF
2 610 305 2373 CABINET FRONT-J3TF
(PDP-42WV1 / PDP-42WV1A)
610 308 6705 CABINET FRONT-J3TG
(PDP-42WV1S / PDP-42WV1AS)
3 610 306 3508 COVER-J3TF
4 610 308 6378 COVER SHEET-J3TF
5 610 305 4353 HANDLE L-J3TF
6 610 305 4360 HANDLE R-J3TF
7 610 305 7422 DEC SHEET-J3TF
8 610 305 7439 DEC SHEET R-J3TF
9 610 305 7446 DEC SHEET AC IN-J3TF
10 610 305 2427 DEC INLAY-J3TF
11 610 305 2410 DEC IND-J3TF
ACCESSORY
645 059 8050 ASSY,REMOCON JXMZA
610 306 2532 RC-BATTERY LID-CXPH
645 051 2322 RC CABLE,FXAF
645 023 4958 CORE,CLAMP
645 054 1162 CORD,POWER-3.0MK (US)
645 054 1155 CORD,POWER-3.0MK (EU, ASIA)
645 054 1148 CORD,POWER-3.138MK (UK)
OWNERS MANUAL
610 305 7934 OWNERS MANUAL-J3TF (English)
610 305 7941 OWNERS MANUAL-J3TF-D (Germany)
610 305 7958 OWNERS MANUAL-J3TF-F (French)
610 305 7965 OWNERS MANUAL-J3TF-I (Italian)
610 305 7972 OWNERS MANUAL-J3TF-E (Spanish)
!
!
!
Fig. No. Part No. Description Part No. Description
Button (Membrane SW)
See Electric Parts.
1
2
3
4
7
8
9
6
5
11
10
