■ Battery Replacement
This Plasma Monitor is used a battery for Clock Function.
■ Battery Replacement
The battery is fixed to Main Board with Battery
Holder.
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
Battery Holder
Battery
Hook
Hook
Battery
Battery Holder
Hook
Main Board

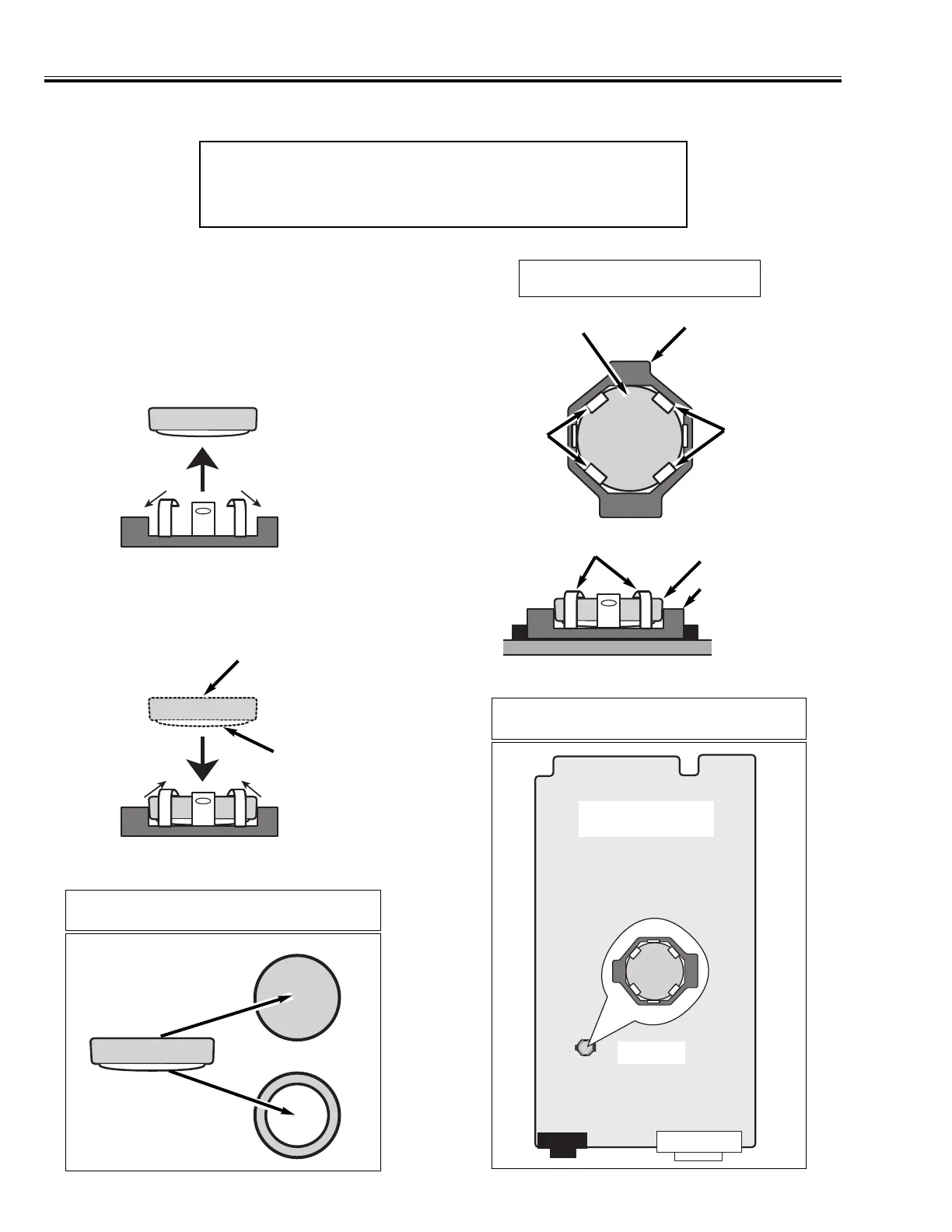

Location of Battery
(+) Side
(-) Side
(1) Remove the battery from battery holder to bent
hooks slightly.
(2) Mount a new battery by correct polarity and
bent hooks back.
Polarity of Battery
(+) Side
(-) Side
Main Board
Battery
Parts No.: 645 059 8302
